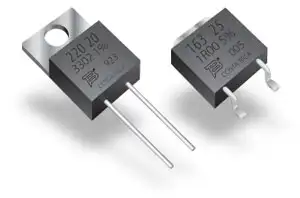

What Is a High Wattage Resistor?
A high wattage resistor, also known as a power resistor, is designed to dissipate large amounts of electrical power (usually 5W and above) without damage or overheating. They are critical in power electronics, voltage regulation, and energy discharge systems.
Typical Applications
- Snubber circuits for motor drives
- LED current limiting in high-power designs
- Inrush current limiting for power supplies
- Load testing and dummy load circuits
- Braking resistor banks in industrial automation
How to Calculate Resistor Power Rating
To determine the required power rating of a resistor, use the formula:
P = V × I or P = I² × R
- P: Power in watts (W)
- V: Voltage across the resistor
- I: Current through the resistor
- R: Resistance in ohms (Ω)
It's recommended to apply a 2× safety margin for better thermal performance.
Types of High Power Resistors
| Type | Description | Typical Power Rating |
|---|---|---|
| Wirewound Resistors | High accuracy and power handling; used in industrial settings | 5W – 250W |
| Metal Oxide Resistors | Better heat resistance; suitable for pulse loading | 2W – 20W |
| Thick Film Resistors | Compact, surface-mount design; used in DC-DC converters | 1W – 10W |
| Ceramic Housed Resistors | High surge capability and thermal dissipation | 10W – 300W |
How to Choose the Right Power Resistor
- Calculate expected power dissipation and double it for safety
- Check available cooling and mounting surface
- Consider size and space constraints (SMD vs through-hole)
- Choose resistor types with appropriate pulse/surge ratings
Video Guide
Watch how high-wattage resistors are used in real-world projects:
Frequently Asked Questions
Q: Can I use multiple low-wattage resistors in parallel instead of one high-wattage resistor?
A: Yes, if the total power rating is sufficient and heat is managed properly.
Q: Do high wattage resistors get hot?
A: Absolutely. They must be mounted with good airflow or heatsinks to avoid overheating.
Q: What happens if I undersize a resistor's wattage?
A: It may overheat, degrade, or catch fire under sustained load.
