VOL-OCK5E-U-BK
Keystone Inserts Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
VOL-OCK5E-U-BK
428-VOL-OCK5E-U-BK
Explore the VOL-OCK5E-U-BK Cat5e RJ45 Keystone Jack from 3M's Volition series. Ideal for high-speed Ethernet applications. Includes punchdown block interface.
VOL-OCK5E-U-BK Description
VOL-OCK5E-U-BK Overview

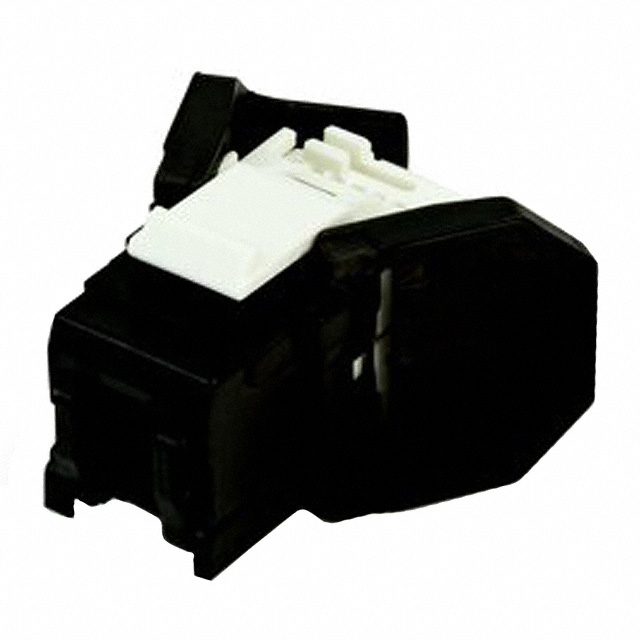

The VOL-OCK5E-U-BK is a high-performance RJ45 keystone jack from the 3M Volition™ series, designed for structured cabling systems. Built to meet Cat5e performance, this jack is ideal for Ethernet, LAN, and voice/data transmission in both residential and commercial environments. The unshielded, toolless design simplifies installation, while its black modular exterior ensures professional finish.
Technical Specifications
| Manufacturer | 3M |
|---|---|
| Series | Volition™ |
| Part Number | VOL-OCK5E-U-BK |
| Status | Discontinued at Digi-Key |
| Ratings | Cat5e |
| Style | Modular Keystone Jack |
| Exterior Connector Type | RJ45, 8P8C |
| Interior Connector Type | IDC, Punchdown Block |
| Exterior Color | Black |
| Mounting Type | Panel Mount / Wall Plate Compatible |
| Packaging | Bulk |
Key Features
- Toolless IDC punchdown termination
- Unshielded Cat5e performance
- Standard 8P8C RJ45 modular interface
- Compatible with universal wall plates
- Professional black finish housing
Typical Applications
- Structured cabling systems
- Ethernet (10/100Base-T) networks
- Office and building LAN wiring
- Patch panels and faceplates
- Voice and data wall installations
Suggested Alternatives
Since VOL-OCK5E-U-BK is discontinued, consider these alternatives with similar specs:
| Model | Description | Link |
|---|---|---|
| VOL-OCK5E-U-O / 3M | TE Connectivity Cat5e Unshielded RJ45 Jack | View Product |
| VOL-OCK5E-U-AL / 3M | Panduit Cat5e Modular Jack, Blue | View Product |
| VOL-OCK5E-U-R / 3M | Leviton Cat5e QuickPort Jack | View Product |
VOL-OCK5E-U-BK Datasheet
Looking for detailed electrical specifications, material composition, and installation guidelines for VOL-OCK5E-U-BK? Download the official 3M datasheet here:
This datasheet includes:
- Mechanical drawings
- Performance specs (insertion loss, crosstalk)
- Wiring diagrams
- Environmental ratings
- Recommended installation practices
About Onzuu – Your Trusted B2B Electronic Components Distributor
Onzuu is a professional electronic component distributor serving global B2B clients. We offer a wide range of connectors, keystone jacks, passive components, ICs, transistors, and more. We support bulk orders, global shipping, and alternative sourcing for discontinued parts like the VOL-OCK5E-U-BK.
Looking for bulk orders or alternatives? Contact our sourcing team via www.onzuu.com/contact.
Technical specifications
| Interior Housing Color | - | |
| Interior Contact Finish Thickness | - | |
| Interior Contact Material | - | |
| Interior Type (Adapter End) | IDC, Pressdown, Punchdown Block | |
| Product Status | Discontinued at Digi-Key | |
| Ratings | Cat5e | |
| Interior Housing Material | - | |
| Specifications | - | |
| Exterior Housing Material | - | |
| Exterior Type (Adapter End) | Modular Jack 8p8c (RJ45, Ethernet) | |
| Mfr | 3M | |
| Style | Modular | |
| Features | - | |
| Exterior Contact Finish | - | |
| Exterior Contact Finish Thickness | - | |
| RoHS Status | RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Operating Temperature | - | |
| Exterior Contact Material | - | |
| ECCN | EAR99 | |
| Exterior Housing Color | Black | |
| Series | Volition™ | |
| HTSUS | 8536.69.8000 | |
| Package | Bulk | |
| Base Product Number | VOL-OCK | |
| Interior Contact Finish | - |
