EK-U1-ZCU102-ES2-G

1. What is the Search Intent Behind “ZCU102 ES2”?

Users searching for “ZCU102 ES2” are typically engineers, developers, or students looking for the AMD/Xilinx Zynq UltraScale+ MPSoC development board. Specifically, they are interested in the ES2 revision of the ZCU102 platform, often for early prototyping or legacy support. The full part number is EK-U1-ZCU102-ES2-G.

2. Product Overview: EK-U1-ZCU102-ES2-G

The EK-U1-ZCU102-ES2-G is an evaluation kit developed by AMD (formerly Xilinx) for exploring the Zynq® UltraScale+™ MPSoC platform. It is suitable for high-end embedded processing applications including automotive ADAS, industrial control, and advanced imaging.

Main Specifications:

• Manufacturer: AMD
• Series: Zynq® UltraScale+™
• Part Status: Obsolete
• Packaging: Bulk
• Platform: Zynq UltraScale+ MPSoC ZCU102 ES2
• Utilized IC / Part: XCZU9EG
• Type: FPGA + MCU/MPU SoC

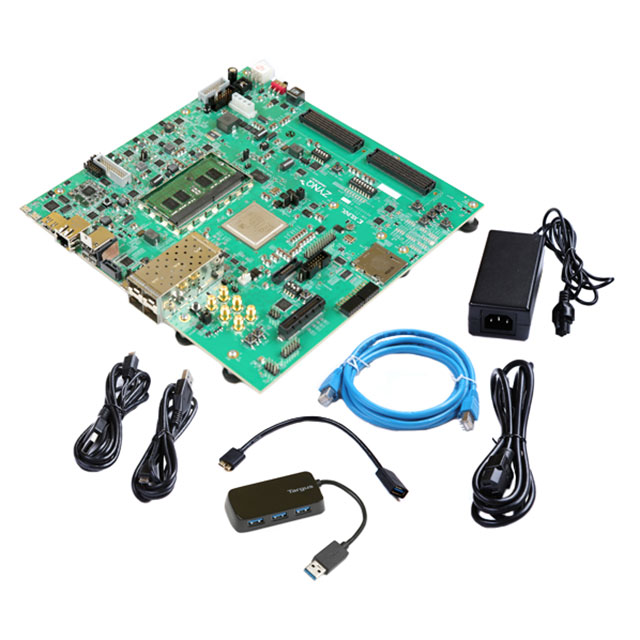

• Contents: Board(s), Cable(s), Power Supply, Accessories
• Interconnect System: FMC, Pmod
• Suggested Programming Environment: Vivado
• Base Product Number: XCZU9

3. Recommended Applications

• AI/ML Hardware Acceleration
• Embedded Vision & Imaging Systems
• Industrial Automation
• Secure Networking Equipment

4. Key Features of XCZU9EG SoC

The XCZU9EG is the core SoC on the board, combining ARM Cortex-A53 processors, real-time Cortex-R5 cores, and FPGA logic fabric. It supports high-speed DDR4, Gigabit Ethernet, PCIe, and advanced multimedia interfaces.

5. Datasheet and Reference

• 📄 ZCU102 Evaluation Board User Guide (UG1182)
• 🌐 Official Product Page - AMD/Xilinx

6. Recommended Alternatives

Since the EK-U1-ZCU102-ES2-G is obsolete, you may consider newer or production-grade options:

• EK-U1-ZCU102-G: Production version of ZCU102 board
• ZCU106 Evaluation Kit: Based on Zynq UltraScale+ ZU7EV
• Kria KV260: For rapid deployment and AI inference applications

7. Related Products from Onzuu

As an authorized distributor of electronic components, Onzuu offers a range of AMD/Xilinx development kits and accessories.

8. Conclusion

The EK-U1-ZCU102-ES2-G evaluation kit was a key platform for early development on Zynq UltraScale+ MPSoCs. Although now obsolete, its legacy lives on through the production ZCU102-G and newer Kria and ZCU106 boards. Whether you're updating designs or looking for support, Onzuu can help.
