HCPL-2630 (In Stock:477)
Logic Output Optoisolators Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
HCPL-2630
902-HCPL-2630
Explore the HCPL-2630 dual-channel high-speed optocoupler by Broadcom. Features 10MBd data rate, 3750Vrms isolation, and 5kV/µs CMTI. Ideal for industrial and digital applications. View specs, datasheet, and applications now.
HCPL-2630 Description
HCPL-2630 Optocoupler Overview
HCPL-2630 is a high-speed optocoupler from Broadcom Limited, offering dual-channel isolation with excellent common mode transient immunity (CMTI) and fast switching performance. Designed for industrial automation, digital communication systems, and high-speed logic interfacing, it supports a data rate up to 10MBd and ensures electrical isolation up to 3750Vrms.
🔍 User Search Intent
Users searching for HCPL-2630 are typically hardware engineers, component buyers, or system integrators looking for a reliable dual-channel high-speed optocoupler. Their goals may include:
- Reviewing HCPL-2630 specifications for design integration
- Comparing optocoupler ICs for industrial or communication purposes
- Finding suitable isolation components for high-speed digital signals
- Purchasing or sourcing Broadcom HCPL-series products
📐 Technical Specifications of HCPL-2630
| Manufacturer | Broadcom Limited |
| Base Part Number | HCPL-2630 |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 5kV/µs |
| Input Type | DC |
| Output Type | Open Collector, Schottky Clamped |
| Current - Output / Channel | 50 mA |
| Data Rate | 10MBd |
| Propagation Delay (tpLH / tpHL) | 100ns / 100ns |
| Rise / Fall Time (Typ) | 24ns / 10ns |
| Voltage - Forward (Vf) | 1.5V (Typ) |
| Forward Current (If) | 15mA (Max) |
| Supply Voltage | 4.5V ~ 5.5V |
| Operating Temperature | -40°C to +85°C |
| Mounting Type | Through Hole |

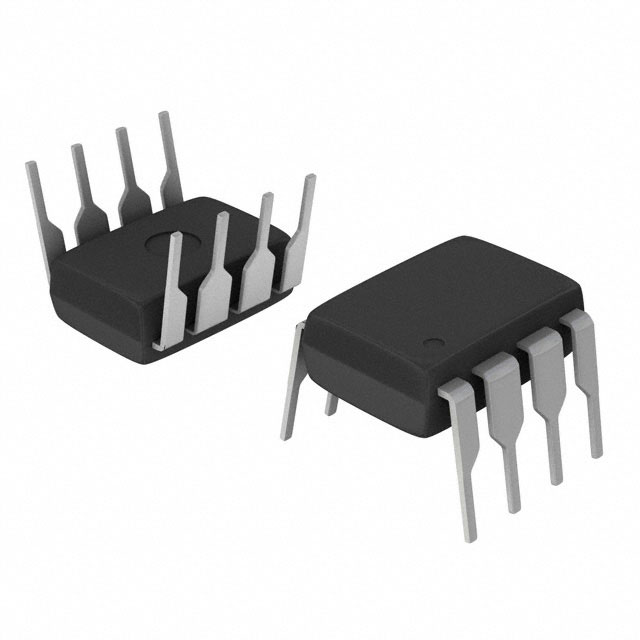

| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
💡 Typical Applications
- Industrial automation systems
- Digital signal isolation
- Microcontroller communication interfaces
- High-speed data transmission with noise isolation
- Programmable logic controllers (PLCs)
📎 HCPL-2630 Datasheet
For detailed pin configuration, timing diagrams, and application circuits, download the official datasheet below:
Technical specifications
| Inputs - Side 1/Side 2 | 2/0 | |
| Rise / Fall Time (Typ) | 24ns, 10ns | |
| Output Type | Open Collector, Schottky Clamped | |
| Common Mode Transient Immunity (Min) | 5kV/µs | |
| Product Status | Active | |
| Supplier Device Package | 8-DIP | |
| Data Rate | 10MBd | |
| Package / Case | 8-DIP (0.300", 7.62mm) | |
| Number of Channels | 2 | |
| Voltage - Supply | 4.5V ~ 5.5V | |
| REACH Status | REACH Unaffected | |
| Mfr | Broadcom Limited | |
| Voltage - Forward (Vf) (Typ) | 1.5V | |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns | |
| RoHS Status | RoHS non-compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Operating Temperature | -40°C ~ 85°C | |
| Input Type | DC | |
| Voltage - Isolation | 3750Vrms | |
| ECCN | EAR99 | |
| Mounting Type | Through Hole | |
| Series | - | |
| HTSUS | 8541.49.8000 | |
| Package | Tube | |
| Current - Output / Channel | 50 mA | |
| Current - DC Forward (If) (Max) | 15mA | |
| Base Product Number | HCPL-2630 |
