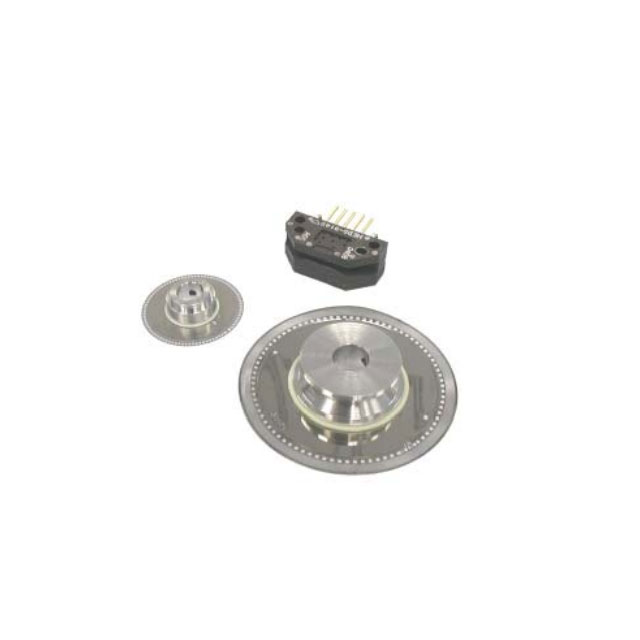

Broadcom HEDB-9140-A12 Optical Encoder Overview

The HEDB-9140-A12 from Broadcom is a high-resolution optical rotary encoder designed for precise positioning and speed detection in motor control applications. With 500 pulses per revolution and quadrature output with index, it is ideal for robotics, automation systems, and servo motor feedback. The compact chassis mount design and open center shaft make it suitable for integration in compact equipment.

✅ Datasheet Download

Click here to download the official Broadcom HEDB-9140 datasheet (PDF)

✅ Features

• Optical incremental encoder with index pulse
• 500 CPR (counts per revolution)
• 5V power supply
• Quadrature signal output
• 6mm open center shaft
• Chassis mount for motor integration
• No detent or built-in switch
