HLMP-EG22-UX0DD

✅ Product Overview

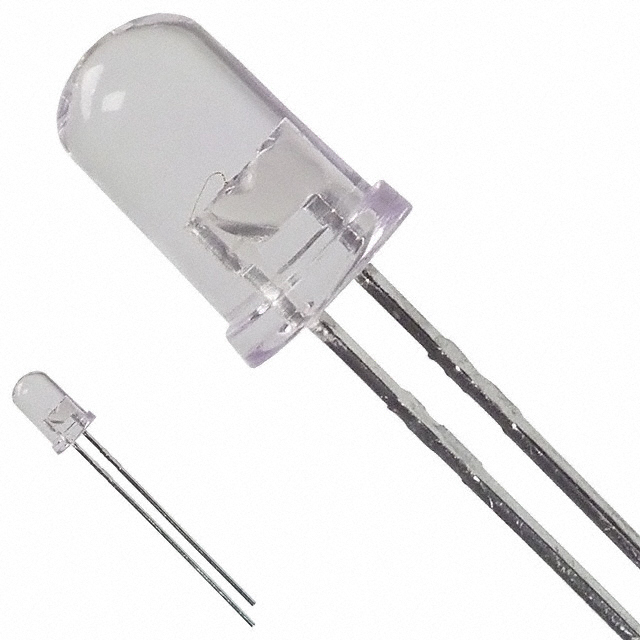

The HLMP-EG22-UX0DD is a high-brightness 5mm red through-hole LED from Broadcom Limited. Featuring a diffused white lens and a typical forward voltage of 2.1V, it is designed for indicator applications that require intense visible output. With a typical luminous intensity of 6250mcd and a narrow 23° viewing angle, it delivers focused and powerful light for signaling and display usage. Note: This product is currently Obsolete.

✅ Datasheet

Click here to download the HLMP-EG22-UX0DD datasheet (PDF)

✅ Key Features

• High-intensity red LED – 6250mcd at 20mA
• 5mm diameter T-1 3/4 through-hole mounting
• Typical forward voltage: 2.1V
• Diffused white lens for soft uniform light
• Narrow 23° viewing angle
• Dominant wavelength: 625nm
• Peak wavelength: 626nm
• RoHS compliant (depending on batch)

✅ Technical Specifications

✅ Application Scenarios

• Panel mount indicators
• Automotive dashboard signals
• Equipment status lights
• Industrial control panels
• Consumer electronics visual alerts

🛒 Buy HLMP-EG22-UX0DD or Find Alternatives

Looking for HLMP-EG22-UX0DD or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.

📦 Request a Quote

✅ Why Choose Onzuu as Your Distributor

Onzuu is a trusted global distributor of electronic components, offering:

• Verified supplier sourcing
• Bulk pricing and MOQ optimization
• Real-time stock availability
• Global shipping and logistics integration
• Technical datasheets and product matching support

✅ Frequently Asked Questions (FAQ)

• Q1: Is HLMP-EG22 still available?
  A1: No, it is marked obsolete. We recommend HLMP-K105 as an alternative.
• Q2: Can HLMP-EG22 run on 3.3V?
  A2: Yes, with a series resistor to limit current to 20mA.
• Q3: What’s the difference between HLMP-EG22 and WP7113ID?
  A3: WP7113ID has a similar size and voltage, but slightly lower intensity and wider angle.

✅ Conclusion

The HLMP-EG22-UX0DD remains a strong reference for compact and high-brightness red LED indicators. Despite its obsolete status, alternatives like HLMP-K105 and WP7113ID provide comparable performance. For professional component sourcing, Onzuu is your reliable distributor for legacy and current LED components.
