MGA-665P8-TR1
RF Amplifiers Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
MGA-665P8-TR1
860-MGA-665P8-TR1
Explore the MGA-665P8-TR1 RF Amplifier by Broadcom. Get full specs, datasheet insights, and replacement options for WiFi/WLAN applications.
MGA-665P8-TR1 Description
What is MGA-665P8-TR1?
The MGA-665P8-TR1 is a high-frequency RF amplifier developed by Broadcom Limited, designed primarily for WLAN and WiFi applications operating between 500 MHz to 6 GHz. With its high gain and low noise figure, it’s optimized for use as a front-end low-noise amplifier (LNA) in 2.4 GHz wireless systems.
Key Specifications of MGA-665P8-TR1
| Manufacturer | Broadcom Limited |
|---|---|
| Part Status | Obsolete |
| Frequency Range | 500 MHz to 6 GHz |
| P1dB (Output Power at 1dB Compression) | 11.4 dBm |
| Gain | 14.5 dB ~ 17.4 dB |
| Noise Figure | 1.45 dB ~ 1.9 dB |
| RF Type | 802.11/WiFi, WLAN |
| Voltage - Supply | 3V |
| Current - Supply | 18.2 mA ~ 23.8 mA |
| Test Frequency | 2.4 GHz |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-LPCC (2x2 mm) |
Datasheet & Package Information

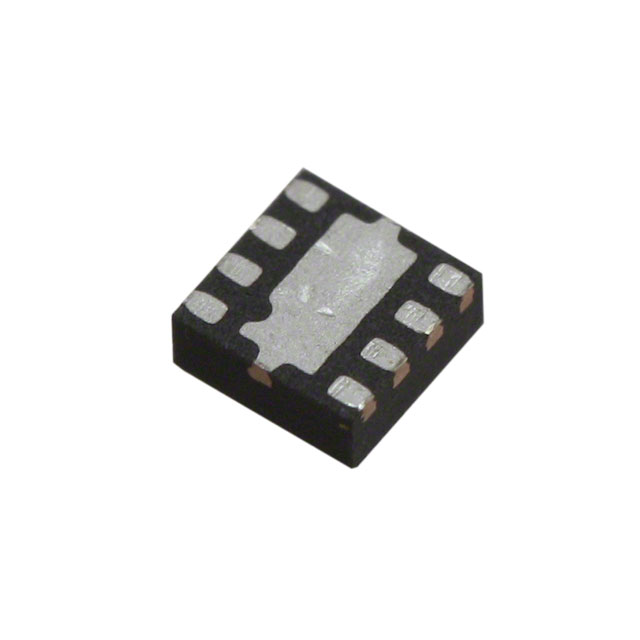

To learn more about pin configurations, PCB layout guidelines, and thermal characteristics, we recommend downloading the official datasheet from Broadcom’s website or authorized distributors like Digi-Key, Mouser, or LCSC. The MGA-665P8-TR1 comes in a compact 8-LPCC (2x2mm) surface-mount package, suitable for space-constrained RF modules.
Click here to download the MGA-665P8-TR1 Datasheet (PDF)
Typical Applications
- 2.4 GHz WiFi front-end modules
- Wireless LAN (WLAN) systems
- Bluetooth, ZigBee, and ISM band devices
- Low-noise RF receiver blocks
Recommended Replacements for MGA-665P8-TR1
Since the MGA-665P8-TR1 is now obsolete, you may consider the following alternatives with similar performance:
- MGA-62563-TR1G – Lower NF, similar gain
- MGA-81563-TR1G – For broader bandwidth usage
- SKY67150-396LF – Low noise figure, wider frequency support
- BGA712N7 – NXP alternative with matching pin layout
Conclusion
The MGA-665P8-TR1 stands out as a high-performance LNA solution for 2.4 GHz wireless designs, especially where low noise and high gain are critical. Although it is now obsolete, engineers can refer to the datasheet and explore suitable drop-in replacements to maintain performance in legacy designs.
Technical specifications
| ECCN | 5A991G | |
| Mounting Type | Surface Mount | |
| Current - Supply | 18.2mA ~ 23.8mA | |
| Product Status | Obsolete | |
| Supplier Device Package | 8-LPCC (2x2) | |
| Series | - | |
| Package / Case | 8-WFDFN Exposed Pad | |
| Voltage - Supply | 3V | |
| REACH Status | REACH Unaffected | |
| Test Frequency | 2.4GHz | |
| Mfr | Broadcom Limited | |
| Frequency | 500MHz ~ 6GHz | |
| P1dB | 11.4dBm | |
| Noise Figure | 1.45dB ~ 1.9dB | |
| HTSUS | 8542.33.0001 | |
| Package | Tape & Reel (TR) | |
| RF Type | 802.11/WiFi, WLAN | |
| Gain | 14.5dB ~ 17.4dB | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
