BSN20Q-7 (In Stock:22921)
Single FETs, MOSFETs Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:

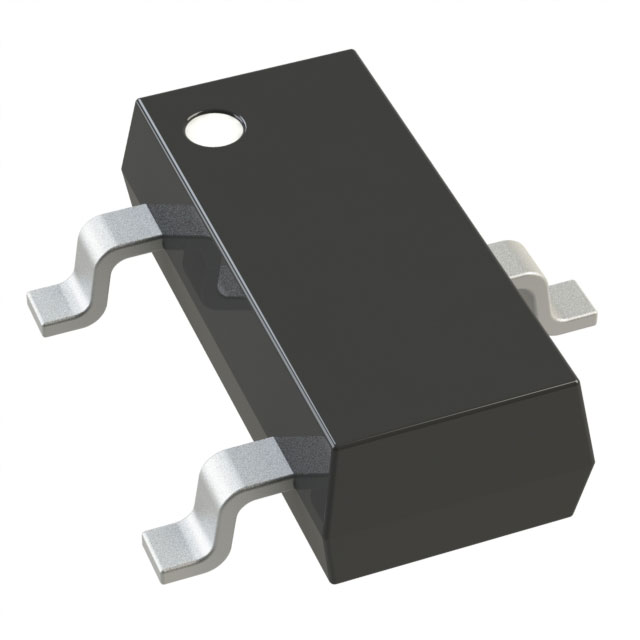

BSN20Q-7
278-BSN20Q-7
Buy BSN20Q-7 N-Channel MOSFET (50V, 500mA, AEC-Q101 Qualified) from Onzuu – trusted electronic components distributor. SOT-23-3 package, low Rds(on), ideal for automotive and general switching.
BSN20Q-7 Description
BSN20Q-7 N-Channel MOSFET – 50V, 500mA, AEC-Q101 Qualified
BSN20Q-7 is a compact N-Channel MOSFET from Diodes Incorporated, designed for space-constrained switching applications. With a maximum drain-to-source voltage of 50V and continuous current handling of 500mA, this MOSFET is AEC-Q101 qualified, making it suitable for automotive-grade and industrial systems.
| Manufacturer | Diodes Incorporated |
|---|---|
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 50 V |
| Continuous Drain Current (Id) | 500 mA @ 25°C |
| Drive Voltage | 4.5V / 10V |
| Rds On (Max) | 1.8Ω @ 220mA, 10V |
| Gate Threshold Voltage | 1.5V (Max) @ 250µA |
| Gate Charge (Qg) | 0.8 nC @ 10V |
| Input Capacitance (Ciss) | 40 pF @ 10V |
| Power Dissipation | 600mW (Ta), 920mW (Tc) |
| Operating Temp. | -55°C to +150°C |
| Package / Case | SOT-23-3 (TO-236-3, SC-59) |
| Qualification | AEC-Q101 Automotive Grade |
Applications of BSN20Q-7
- Automotive load switching
- DC-DC converters
- Battery-powered systems
- Signal switching
- Low-side load control
Download BSN20Q-7 Datasheet (PDF)
📄 Click here to view/download the official datasheet
Recommended Alternative Models
- BSN20-7 / Diodes Incorporated – N-Channel, 60V, through-hole
- BSN20,235 / Nexperia – SMD variant, enhanced Rds(on)
- BSN20BKR / Nexperia – 60V SOT-23, high switching speed
- BSN20,215 / Nexperia
Why Buy BSN20Q-7 from Onzuu?
- ✅ 100% genuine components, traceable sourcing
- ✅ Bulk and reel packaging for OEMs
- ✅ Global shipping & professional B2B service
- ✅ Excellent support for engineers and buyers
Technical specifications
| FET Type | N-Channel | |
| Input Capacitance (Ciss) (Max) @ Vds | 40 pF @ 10 V | |
| Gate Charge (Qg) (Max) @ Vgs | 0.8 nC @ 10 V | |
| Product Status | Active | |
| Supplier Device Package | SOT-23-3 | |
| Drain to Source Voltage (Vdss) | 50 V | |
| Power Dissipation (Max) | 600mW (Ta), 920mW (Tc) | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Technology | MOSFET (Metal Oxide) | |
| REACH Status | REACH Unaffected | |
| Mfr | Diodes Incorporated | |
| Vgs (Max) | ±20V | |
| RoHS Status | ROHS3 Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| FET Feature | - | |
| ECCN | EAR99 | |
| Grade | Automotive | |
| Mounting Type | Surface Mount | |
| Rds On (Max) @ Id, Vgs | 1.8Ohm @ 220mA, 10V | |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | |
| Series | - | |
| Qualification | AEC-Q101 | |
| Current - Continuous Drain (Id) @ 25°C | 500mA (Ta) | |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | |
| HTSUS | 8541.21.0095 | |
| Package | Tape & Reel (TR) | |
| Base Product Number | BSN20 |
