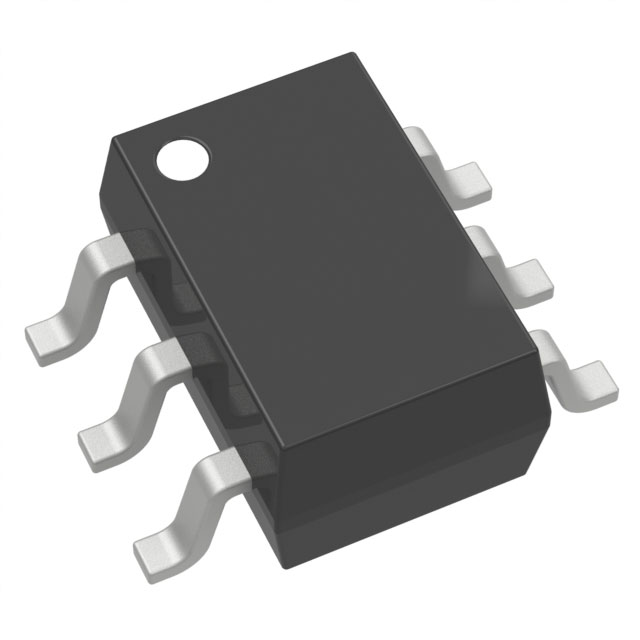

DMC2038LVT-7 Description
DMC2038LVT-7 N and P-Channel MOSFET – Diodes Incorporated
The DMC2038LVT-7 is a compact dual-channel MOSFET solution featuring both N and P-Channel types, designed for low-voltage, low-RDS(on) switching applications. Developed by Diodes Incorporated, this device is ideal for portable and space-sensitive applications requiring efficient power management in a small footprint. With logic level gate compatibility, it supports fast switching and thermal performance up to 800mW.
✅ Datasheet
Download the official datasheet for DMC2038LVT-7 from Diodes Incorporated: Click to Download PDF
✅ Features
- Dual N and P-Channel MOSFETs in a single TSOT-26 package
- Logic level gate drive compatible
- Low Rds(on): 35mΩ max at 4.5V
- High switching speed with low gate charge (17nC)
- Operating temperature: -55°C to +150°C
- Compact SOT-23-6 Thin footprint
✅ Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel |
| Gate Type | Logic Level |
| Drain to Source Voltage (Vdss) | 20V |
| Continuous Drain Current | 3.7A (N-Channel), 2.6A (P-Channel) |
| Rds On (Max) | 35mΩ @ 4A, 4.5V |
| Gate Threshold Voltage | 1V @ 250µA |
| Gate Charge | 17nC @ 10V |
| Input Capacitance | 530pF @ 10V |
| Power Dissipation | 800mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin (TSOT-23-6) |
| Supplier Device Package | TSOT-26 |
| Part Status | Not For New Designs |
✅ Application Scenarios
This MOSFET is typically used in:
- Portable electronics
- Load switches
- Battery management systems
- Low-voltage DC-DC converters
- Consumer electronic devices
🛒 Buy DMC2038LVT-7 or Find Alternatives
Looking for DMC2038LVT-7 or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.
✅ Why Choose Onzuu?
As a trusted electronic components distributor, Onzuu ensures authentic sourcing, timely delivery, and competitive pricing for industrial customers. We specialize in hard-to-find components like the DMC2038LVT-7.
✅ FAQ
Q1: Is DMC2038LVT-7 still recommended for new designs?
A1: No, the part is marked as "Not For New Designs". It is ideal for existing applications or replacements.
Q2: What are the main benefits of using a dual N/P-Channel MOSFET?
A2: It offers design flexibility, allows switching for both high-side and low-side in a compact footprint.
Q3: What alternatives are recommended?
A3: Contact Onzuu support for suitable replacements from Diodes Inc. or other manufacturers.
✅ Summary
The DMC2038LVT-7 dual N and P-Channel logic-level MOSFET offers a space-saving power management solution with efficient switching performance. While it is no longer intended for new designs, it remains a solid choice for maintenance and legacy systems. Trust Onzuu to provide reliable sourcing and expert support for your MOSFET component needs.
Technical specifications
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| FET Feature | Logic Level Gate | |
| Configuration | N and P-Channel | |
| Input Capacitance (Ciss) (Max) @ Vds | 530pF @ 10V | |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 10V | |
| ECCN | EAR99 | |
| Mounting Type | Surface Mount | |
| Product Status | Not For New Designs | |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 4A, 4.5V | |
| Vgs(th) (Max) @ Id | 1V @ 250µA | |
| Supplier Device Package | TSOT-26 | |
| Drain to Source Voltage (Vdss) | 20V | |
| Series | - | |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | |
| Technology | MOSFET (Metal Oxide) | |
| Power - Max | 800mW | |
| REACH Status | REACH Unaffected | |
| Mfr | Diodes Incorporated | |
| Current - Continuous Drain (Id) @ 25°C | 3.7A, 2.6A | |
| HTSUS | 8541.21.0095 | |
| Package | Tape & Reel (TR) | |
| RoHS Status | ROHS3 Compliant | |
| Base Product Number | DMC2038 | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
