MBR20100CTP
Diode Arrays Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
MBR20100CTP
286-MBR20100CTP
Discover the full specifications, datasheet, and compatible replacement for the obsolete MBR20100CTP Schottky diode. Ideal for power rectification applications.
MBR20100CTP Description
MBR20100CTP Overview

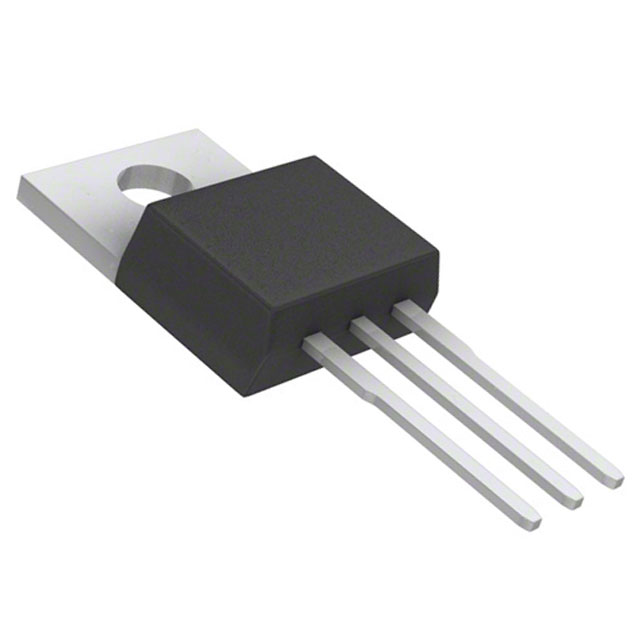

The MBR20100CTP is a Schottky rectifier diode designed for high efficiency and low forward voltage applications, commonly used in power supply and DC-DC converter systems. Manufactured by Diodes Incorporated, this device features a dual diode configuration with a common cathode and is housed in an ITO-220S through-hole package.
Status: Obsolete
Technical Specifications
| Manufacturer | Diodes Incorporated |
|---|---|
| Series | - |
| Part Status | Obsolete |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Reverse Voltage (Vr) | 100 V |
| Average Forward Current (Io) | 10 A per diode |
| Forward Voltage (Vf) | 850 mV @ 10 A |
| Reverse Leakage Current | 100 µA @ 100 V |
| Speed | Fast Recovery ≤ 500ns |
| Operating Temperature (Tj) | -65°C ~ 175°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Isolated Tab |
| Supplier Device Package | ITO-220S |
Datasheet
Click here to download the MBR20100CTP Datasheet (PDF)
Recommended Replacement for MBR20100CTP
As MBR20100CTP is now obsolete, we recommend the following compatible replacement:
- MBR20100CTP / Littelfuse – Onsemi equivalent with similar specs and TO-220 package
- STPS20100CT / STMicroelectronics – STMicroelectronics 20A 100V Schottky, TO-220AB
- MBR20100CT / Diodes Incorporated – Generic option with common cathode TO-220
Where to Buy MBR20100CTP or Replacements
Although MBR20100CTP is obsolete, you may still find it or its replacements on trusted distributors such as:
FAQ
- Q: Can I still buy MBR20100CTP?
A: Some distributors may still have stock, but it is recommended to use a modern replacement. - Q: What’s the best replacement with identical specs?
A: STPS20100CT or MBR20100CTG offer nearly identical electrical and thermal characteristics. - Q: What applications is this diode best suited for?
A: Power supply rectifiers, freewheeling diodes, and switching power supplies.
Technical specifications
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| ECCN | EAR99 | |
| Mounting Type | Through Hole | |
| Product Status | Obsolete | |
| Supplier Device Package | ITO-220S | |
| Current - Reverse Leakage @ Vr | 100 µA @ 100 V | |
| Series | - | |
| Package / Case | TO-220-3 Isolated Tab | |
| Technology | Schottky | |
| REACH Status | REACH Affected | |
| Diode Configuration | 1 Pair Common Cathode | |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 10 A | |
| Mfr | Diodes Incorporated | |
| Voltage - DC Reverse (Vr) (Max) | 100 V | |
| HTSUS | 8541.10.0080 | |
| Package | Tube | |
| Current - Average Rectified (Io) (per Diode) | 10A | |
| Operating Temperature - Junction | -65°C ~ 175°C | |
| RoHS Status | ROHS3 Compliant | |
| Base Product Number | MBR20100 | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
