MBR2560CT
Diode Arrays Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:

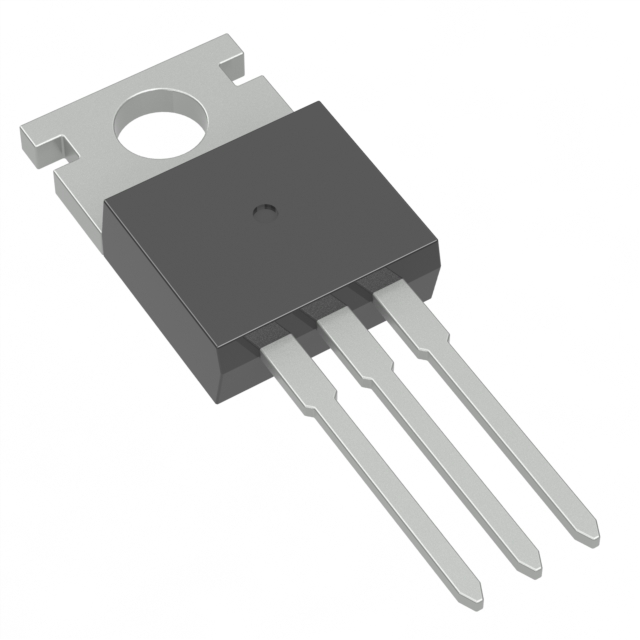

MBR2560CT
286-MBR2560CT
Explore the onsemi MBR2560CT Schottky diode: 25A 60V dual diode in TO-220 package. View full datasheet specs, forward voltage, reverse current, and high-efficiency applications.
MBR2560CT Description
🔍 Product Overview
The MBR2560CT is a high-performance Schottky barrier rectifier diode with a common cathode configuration. Designed for high-efficiency power supply circuits, it provides fast switching, low forward voltage drop, and reliable operation under high currents and voltages.
📐 Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | onsemi |
| Diode Type | Schottky |
| Series | - |
| Part Status | Active |
| Configuration | 1 Pair Common Cathode |
| Reverse Voltage (Max) | 60 V |
| Average Rectified Current (Io) | 12.5 A per diode |
| Forward Voltage Drop (Max) | 750 mV @ 12.5 A |
| Reverse Leakage Current | 1 mA @ 60 V |
| Recovery Speed | Fast ≤ 500ns |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Operating Temperature | -65°C to +150°C |
| Base Product Number | MBR2560 |
📄 MBR2560CT Datasheet Download
You can download the official datasheet in PDF format from the button below:
📥 Download MBR2560CT Datasheet
🔧 Applications
- Switching Power Supplies (SMPS)
- DC-DC Converters
- Battery Chargers
- Motor Drives
- Low Voltage, High Current Rectification
🔁 Recommended Alternatives
| Model | Voltage | Current | Package |
|---|---|---|---|
| MBR3060CTP / Diodes Incorporated | 60V | 30A | TO-220AB |
| STPS2045CT / STMicroelectronics | 45V | 20A | TO-220AB |
| STPS2045CTC / STMicroelectronics | 60V | 25A | TO-220AC |
🛒 Where to Buy / Learn More
Looking for a reliable MBR2560CT supplier or electronic component distributor? Explore options via Onzuu's sourcing service:
Technical specifications
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| ECCN | EAR99 | |
| Grade | Automotive | |
| Mounting Type | Through Hole | |
| Product Status | Obsolete | |
| Supplier Device Package | TO-220-3 | |
| Current - Reverse Leakage @ Vr | 1 mA @ 60 V | |
| Series | - | |
| Qualification | AEC-Q101 | |
| Package / Case | TO-220-3 | |
| Technology | Schottky | |
| REACH Status | REACH Affected | |
| Diode Configuration | 1 Pair Common Cathode | |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 15 A | |
| Mfr | Diodes Incorporated | |
| Voltage - DC Reverse (Vr) (Max) | 60 V | |
| HTSUS | 8541.10.0080 | |
| Package | Tube | |
| Current - Average Rectified (Io) (per Diode) | 15A | |
| Operating Temperature - Junction | -65°C ~ 150°C | |
| RoHS Status | ROHS3 Compliant | |
| Base Product Number | MBR2560 | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
