PR1003-T Description
PR1003-T Fast Recovery Rectifier Diode – 200V 1A (DO-41) | Diodes Incorporated

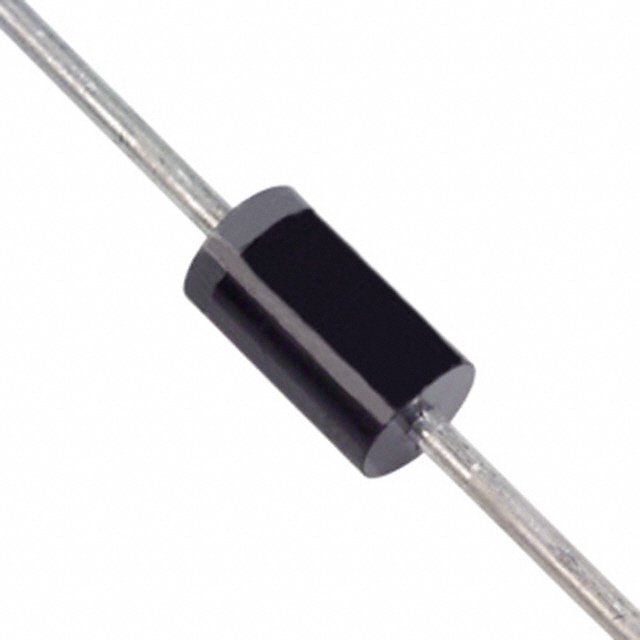

The PR1003-T is a fast recovery rectifier diode manufactured by Diodes Incorporated, designed for general-purpose applications where high-speed switching and reliable performance are required. Packaged in the industry-standard DO-41 (Axial) form factor, it provides excellent thermal performance and ease of mounting for through-hole assemblies.
π Key Features of PR1003-T
- Reverse Voltage (Vr): Up to 200V
- Forward Current (Io): 1A average rectified current
- Fast Recovery Time: 150ns for improved switching
- Forward Voltage Drop: 1.2V max @ 1A
- Reverse Leakage: 5 µA @ 200V
- Capacitance: 15pF @ 4V, 1MHz
- Operating Temperature: -65°C to +150°C (Junction)
- Package: DO-41 (Axial, Through Hole)
π Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Part Status | Obsolete |
| Technology | Standard |
| Reverse Voltage (Max) | 200V |
| Forward Current | 1A |
| Forward Voltage @1A | 1.2V |
| Reverse Recovery Time | 150ns |
| Reverse Leakage | 5µA @ 200V |
| Capacitance | 15pF @ 4V, 1MHz |
| Mounting Type | Through Hole |
| Package | DO-204AL (DO-41, Axial) |
| Operating Temperature | -65°C ~ 150°C |
π PR1003-T Datasheet
Download the official datasheet for detailed electrical characteristics, mechanical layout, and reliability data:
π Recommended Alternative Products for PR1003-T
| Product Model | Manufacturer | Stock Availability | Unit Price (USD) | Datasheet |
|---|---|---|---|---|
| 1N3611 | Microchip Technology | 208 | $4.42 | Datasheet |
| 1N4942 | Microchip Technology | Out of Stock | $4.39 | Datasheet |
| 1N5614 | Microchip Technology | 315 | $3.91 | Datasheet |
| 1N5615 | Microchip Technology | 253 | $4.42 | Datasheet |
| MUR120-T | onsemi | Out of Stock | $0.18 | Datasheet |
π Buy PR1003-T or Find Alternatives
Looking for PR1003-T or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.
β Frequently Asked Questions (FAQ)
- What is the typical use of PR1003-T?
- It's used in fast-switching rectification, low voltage power supplies, and reverse polarity protection in various consumer and industrial electronics.
- Is PR1003-T still available?
- It is marked as "Obsolete" by the manufacturer, but inventory may still be found through legacy distributors or refurbished stock suppliers.
- What is a good alternative to PR1003-T?
- Potential alternatives include 1N4937, UF4003, or HER303 depending on specific voltage/current requirements. Always verify specs before substitution.
- Can it be used for high-frequency rectification?
- Yes, with a recovery time of 150ns, it is suitable for moderate high-speed switching circuits (e.g., switch-mode power supplies).
Need help sourcing obsolete components like PR1003-T? Contact Onzuu, your trusted electronic component distributor, for global supply chain solutions.
Technical specifications
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz | |
| Reverse Recovery Time (trr) | 150 ns | |
| ECCN | EAR99 | |
| Mounting Type | Through Hole | |
| Product Status | Obsolete | |
| Supplier Device Package | DO-41 | |
| Current - Reverse Leakage @ Vr | 5 Β΅A @ 200 V | |
| Series | - | |
| Package / Case | DO-204AL, DO-41, Axial | |
| Technology | Standard | |
| REACH Status | REACH Affected | |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 1 A | |
| Mfr | Diodes Incorporated | |
| Voltage - DC Reverse (Vr) (Max) | 200 V | |
| HTSUS | 8541.10.0080 | |
| Package | Tape & Reel (TR) | |
| Current - Average Rectified (Io) | 1A | |
| Operating Temperature - Junction | -65Β°C ~ 150Β°C | |
| RoHS Status | ROHS3 Compliant | |
| Base Product Number | PR1003 | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
