SMBJ26CA-13 Description
SMBJ26CA-13 Overview: Bidirectional 600W TVS Diode for General Purpose Applications
SMBJ26CA-13 is a bidirectional Transient Voltage Suppression (TVS) diode designed by Diodes Incorporated. It offers 600W peak pulse power, 26V reverse standoff voltage, and robust protection for general-purpose electronic circuits.
🔍 What is SMBJ26CA-13? 📐 Key Specifications ⚙️ Features & Benefits 📦 Applications 📄 Download Datasheet 🔁 Equivalent Parts 🛒 Buy SMBJ26CA-13
🔍 What is SMBJ26CA-13?

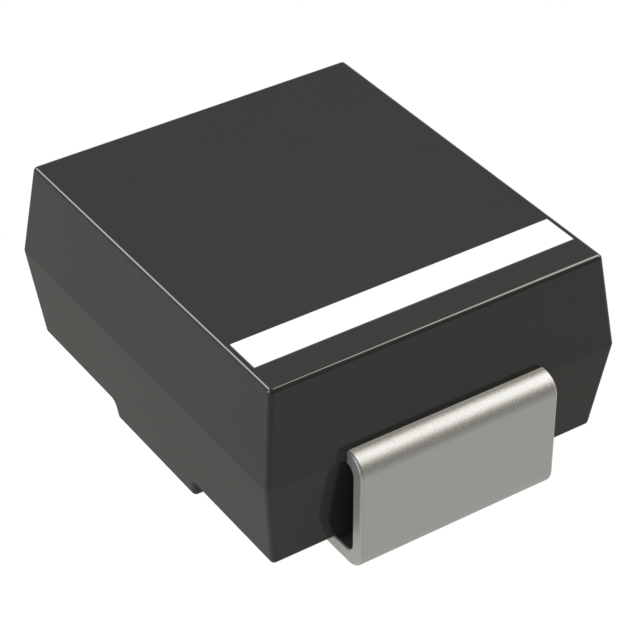

The SMBJ26CA-13 is a bidirectional TVS (Transient Voltage Suppression) diode used to protect sensitive electronic equipment from voltage spikes. It belongs to the SMBJ series and comes in an industry-standard DO-214AA (SMB) surface-mount package.
📐 Key Specifications of SMBJ26CA-13
| Parameter | Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Series | SMBJ |
| Part Number | SMBJ26CA-13 |
| Type | Zener - Bidirectional |
| Reverse Standoff Voltage | 26V |
| Breakdown Voltage (Min) | 28.9V |
| Clamping Voltage (Max) | 42.1V @ Ipp |
| Peak Pulse Current | 14.2A (10/1000µs) |
| Peak Pulse Power | 600W |
| Channels | 1 (Bidirectional) |
| Mounting Type | Surface Mount |
| Package | SMB (DO-214AA) |
| Operating Temperature | -55°C to +150°C |
| Status | Active |
⚙️ Features & Benefits
- Bidirectional TVS protection for AC and bidirectional circuits
- High peak pulse power (600W) capability
- Fast response time to ESD and surge events
- Industry-standard SMB package
- RoHS compliant and halogen-free
📦 Typical Applications
- Consumer electronics surge protection
- Power line protection (with limitations)
- Automotive ECU & sensors
- Communication ports
- General-purpose voltage spike protection
📄 SMBJ26CA-13 Datasheet PDF Download
Access the official datasheet here: Download SMBJ26CA-13 Datasheet (PDF)
🔁 Equivalent / Replacement for SMBJ26CA-13
If SMBJ26CA-13 is out of stock, you may consider these alternatives:
- SMBJ26CAQ-13-F / Diodes Incorporated
- SMBJ26CA-13-F / Diodes Incorporated
- SMBJ26CA / KYOCERA AVX
- SMBJ26CA-HR / Littelfuse
- SMBJ26CA / Littelfuse
- SMBJ26CA-HRA / Littelfuse
- SMBJ26CAE3/TR13 / Microchip Technology
- MXSMBJ26CAE3 / Microchip Technology
- MSMBJ26CA / Microchip Technology
- MASMBJ26CAE3 / Microchip Technology
- MASMBJ26CA / Microchip Technology
- MSMBJ26CAE3 / Microchip Technology
- MXLSMBJ26CA / Microchip Technology
- MXSMBJ26CA / Microchip Technology
- MXLSMBJ26CAE3 / Microchip Technology
- SMBJ26CA-TR / STMicroelectronics
- SMBJ26CA/TR13 / YAGEO
- SMBJ26CA-AT/TR13 / YAGEO
- SMBJ26CA-E3/52 / Vishay
🛒 Where to Buy SMBJ26CA-13
SMBJ26CA-13 is available from authorized electronic component distributors. Check inventory and prices below:
| Distributor | Availability | Link |
|---|---|---|
| Onzuu | In Stock | Buy from Onzuu |
📢 Trusted Electronic Component Distributor - Onzuu
Onzuu is a professional B2B electronic components distributor. We supply TVS diodes, capacitors, resistors, sensors, and more, directly from manufacturers or authorized channels. For bulk inquiries on SMBJ26CA-13, contact us today.
Technical specifications
| Bidirectional Channels | 1 | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Current - Peak Pulse (10/1000µs) | 14.2A | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| ECCN | EAR99 | |
| Voltage - Breakdown (Min) | 28.9V | |
| Mounting Type | Surface Mount | |
| Product Status | Discontinued at Digi-Key | |
| Power - Peak Pulse | 600W | |
| Supplier Device Package | SMB | |
| Series | SMBJ | |
| Type | Zener | |
| Package / Case | DO-214AA, SMB | |
| Voltage - Clamping (Max) @ Ipp | 42.1V | |
| Voltage - Reverse Standoff (Typ) | 26V | |
| REACH Status | REACH Unaffected | |
| Mfr | Diodes Incorporated | |
| HTSUS | 8541.10.0080 | |
| Package | Tape & Reel (TR) | |
| RoHS Status | RoHS non-compliant | |
| Power Line Protection | No | |
| Base Product Number | SMBJ26 | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
