STPR1020CTW (In Stock:63)
Diode Arrays Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
STPR1020CTW
286-STPR1020CTW
Explore STPR1020CTW 200V 10A fast recovery diode in TO-220AB package. View specs, datasheet & stock at Onzuu. Reliable B2B distributor for Diodes Inc components.
1+:$0.47182
10+:$0.41538
50+:$0.37481

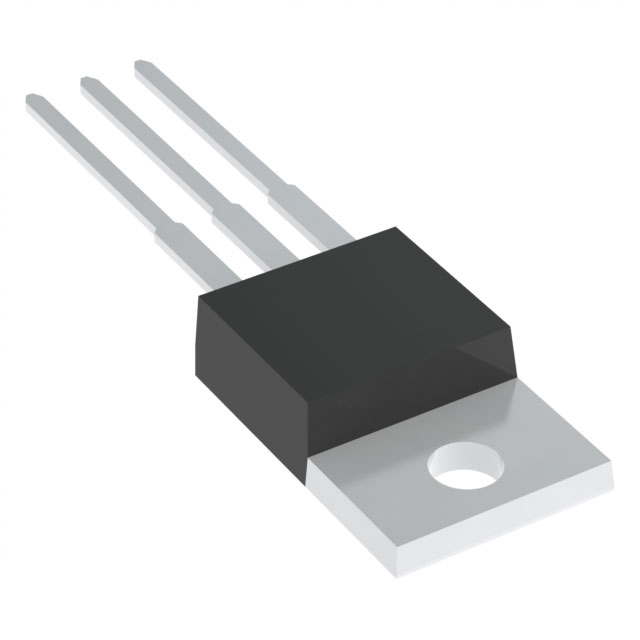

STPR1020CTW Description
📌 STPR1020CTW Fast Recovery Rectifier – Overview
The STPR1020CTW is a high-efficiency fast recovery diode manufactured by Diodes Incorporated. It features a common cathode configuration with a maximum reverse voltage of 200V and an average rectified current rating of 10A per diode. Designed for power conversion, switching power supplies, and general rectification circuits, it offers low reverse recovery time and excellent thermal performance.
📊 Technical Specifications
| Manufacturer | Diodes Incorporated |
|---|---|
| Part Number | STPR1020CTW |
| Diode Type | Fast Recovery |
| Configuration | 1 Pair Common Cathode |
| Reverse Voltage (Vr) | 200V (Max) |
| Forward Current (Io) | 10A (Per Diode) |
| Forward Voltage (Vf) | 1.25V @ 10A |
| Reverse Recovery Time (trr) | 30 ns |
| Reverse Leakage | 10 µA @ 200V |
| Speed | Fast Recovery < 500ns |
| Operating Temperature | -55°C to +150°C |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Supplier Package | TO-220AB |
| Base Part Number | STPR10 |
| Status | Active |
⚙️ Typical Applications
- Switching Power Supplies (SMPS)
- DC-DC Converters
- Freewheeling and Snubber Diode
- Inductive Load Switching
- Solar Panel Inverters
📥 STPR1020CTW Datasheet Download
Download the official datasheet to explore thermal resistance, curve characteristics, package dimensions, and more.
🔗 Click here to download STPR1020CTW Datasheet (PDF)
🔗 Related Fast Recovery Diodes
| Model | Voltage | Current | Package | Action |
|---|---|---|---|---|
| STPR1020 / Diodes Incorporated | 200V | 10A | TO-220AB | View |
| STPR1020CT / STMicroelectronics | 100V | 20A | TO-220AB | View |
| STPR1020CB / STMicroelectronics | 1200V | 40A | TO-247 | View |
📌 Summary
The STPR1020CTW is a reliable and thermally efficient fast recovery rectifier ideal for mid-power switching and rectification needs. Its compact TO-220AB package and fast 30ns reverse recovery time make it suitable for a wide range of industrial and consumer electronics applications.
For sourcing or bulk inquiries, contact Onzuu – Your Trusted B2B Electronic Component Distributor.
Technical specifications
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 30 ns | |
| ECCN | EAR99 | |
| Mounting Type | Through Hole | |
| Product Status | Active | |
| Supplier Device Package | TO-220AB | |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V | |
| Series | - | |
| Package / Case | TO-220-3 | |
| Technology | Standard | |
| REACH Status | REACH Unaffected | |
| Diode Configuration | 1 Pair Common Cathode | |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 10 A | |
| Mfr | Diodes Incorporated | |
| Voltage - DC Reverse (Vr) (Max) | 200 V | |
| HTSUS | 8541.10.0080 | |
| Package | Tube | |
| Current - Average Rectified (Io) (per Diode) | 10A | |
| Operating Temperature - Junction | -55°C ~ 150°C | |
| RoHS Status | ROHS3 Compliant | |
| Base Product Number | STPR10 | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
