CYW20706UA2KFFB4G
RF Transceiver ICs Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
CYW20706UA2KFFB4G
879-CYW20706UA2KFFB4G
IExplore the CYW20706UA2KFFB4G Bluetooth v4.2 module from Infineon. View features, datasheet, technical specs, applications, and trusted global purchasing options from Onzuu.
CYW20706UA2KFFB4G Description
CYW20706UA2KFFB4G Bluetooth Module Overview
The CYW20706UA2KFFB4G from Infineon Technologies is a powerful and highly integrated Bluetooth® 4.2 compliant transceiver with embedded MCU. It’s designed for reliable, low-power wireless communication in IoT, automotive, and consumer electronics. With a built-in ARM Cortex-M3 processor, integrated ROM and RAM, and support for various serial interfaces, it provides a versatile platform for Bluetooth applications requiring robust performance and efficiency.
✅ Datasheet
✅ Features
- Bluetooth v4.2 compliant transceiver
- Integrated ARM Cortex-M3 microcontroller
- Embedded ROM: 848kB and RAM: 352kB
- Supports UART, SPI, I2C, I2S serial interfaces
- Output power up to +12 dBm
- Receive sensitivity: -96.5 dBm
- Low power consumption: RX - 12.5mA, TX - 26.5mA

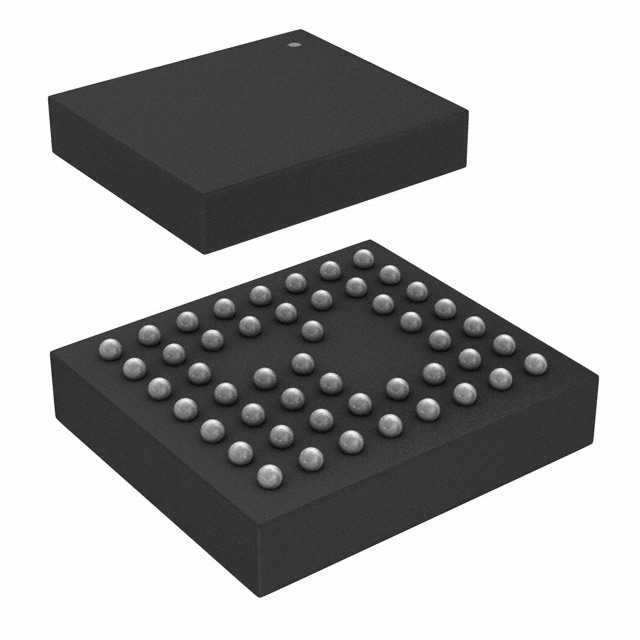

- Compact 49-FBGA package (4.5x4mm)
✅ Specifications
| Manufacturer | Infineon Technologies |
| Series | - |
| Part Status | Active |
| Type | Transceiver + MCU |
| RF Standard | Bluetooth |
| Bluetooth Version | 4.2 |
| Modulation | GFSK, 4DQPSK, 8DPSK |
| Frequency | 2.4GHz |
| Max Data Rate | 2Mbps |
| Output Power | 12dBm |
| Sensitivity | -96.5dBm |
| Memory | 848kB ROM, 352kB RAM |
| Interfaces | UART, SPI, I2C, I2S |
| GPIO | 24 |
| Supply Voltage | 3.3V |
| Current (Receive) | 12.5mA |
| Current (Transmit) | 26.5mA |
| Operating Temp. | -30°C ~ +85°C |
| Mounting Type | Surface Mount |
| Package | 49-TFBGA (4.5x4mm) |
| Base Part Number | CYW20706 |
✅ Application Scenarios
- Wireless audio streaming devices
- Smart home appliances
- Bluetooth-enabled IoT nodes
- Automotive infotainment systems
- Industrial Bluetooth communication
🛒 Buy CYW20706UA2KFFB4G or Find Alternatives
Looking for CYW20706UA2KFFB4G or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.
✅ Onzuu Distributor Recommendation
Onzuu is a reliable distributor of electronic components worldwide. We offer genuine parts, fast global shipping, and professional sourcing for your procurement needs.
✅ ✅ ✅ Frequently Asked Questions
Q: What is CYW20706UA2KFFB4G used for?
A: It’s commonly used in Bluetooth-based wireless communication systems, such as smart devices, automotive modules, and IoT gateways.
Q: Does it support Bluetooth Low Energy?
A: Yes, it supports Bluetooth 4.2, which includes Bluetooth Low Energy (BLE) features.
Q: Is it suitable for automotive-grade use?
A: Yes, its operating temperature range of -30°C to +85°C makes it suitable for many industrial and automotive environments.
✅ Summary
The CYW20706UA2KFFB4G Bluetooth module from Infineon is a compact, powerful solution for wireless communication systems. With integrated memory, low-power operation, and full Bluetooth v4.2 compliance, it’s ideal for developers building high-performance, reliable, and space-constrained IoT and embedded products.
Technical specifications
| Serial Interfaces | I2C, I2S, SPI, UART | |
| Product Status | Active | |
| Power - Output | 12dBm | |
| Supplier Device Package | 49-FBGA (4.5x4) | |
| Package / Case | 49-TFBGA | |
| Current - Receiving | 12.5mA | |
| Modulation | 4DQPSK, 8DPSK, GFSK | |
| Voltage - Supply | 3.3V | |
| REACH Status | REACH Unaffected | |
| Mfr | Infineon Technologies | |
| Data Rate (Max) | 2Mbps | |
| Protocol | Bluetooth v4.2 | |
| RoHS Status | ROHS3 Compliant | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Operating Temperature | -30°C ~ 85°C | |
| Current - Transmitting | 26.5mA | |
| ECCN | 5A992C | |
| Mounting Type | Surface Mount | |
| RF Family/Standard | Bluetooth | |
| GPIO | 24 | |
| Series | - | |
| Type | TxRx + MCU | |
| Sensitivity | -96.5dBm | |
| Memory Size | 848kB ROM, 352kB RAM | |
| Frequency | 2.4GHz | |
| HTSUS | 8542.31.0001 | |
| Package | Tray | |
| Base Product Number | CYW20706 |
