PVA2352NPBF (In Stock:2000)

PVA2352NPBF Solid State Relay - Infineon Technologies

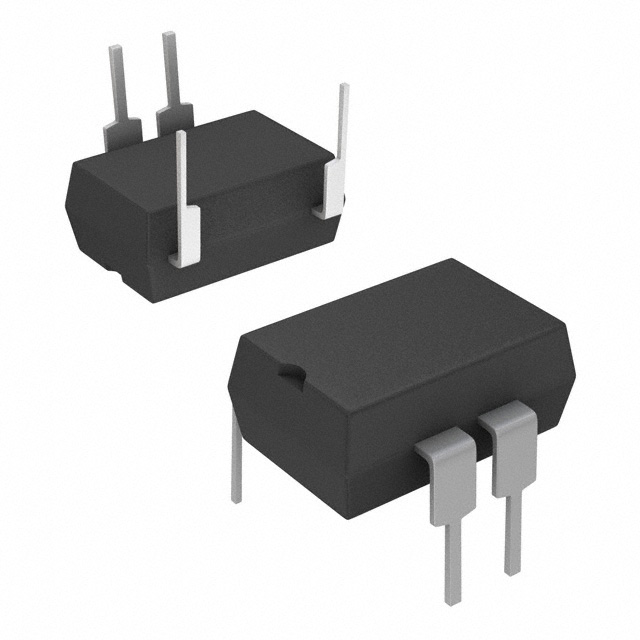

The PVA2352NPBF is a high-quality solid state relay manufactured by Infineon Technologies, part of the renowned PVA and HEXFET® series. Designed for reliable switching applications, this SPST-NO (Single Pole Single Throw - Normally Open) relay supports both AC and DC outputs, making it versatile for various electrical circuits. With a through-hole mounting type and a compact 8-DIP package, it offers ease of integration in electronic designs requiring robust switching performance.

✅ Datasheet Module

Download the official PVA2352NPBF datasheet for detailed specifications, pin configuration, electrical characteristics, and application notes:

PVA2352NPBF Datasheet (Infineon Technologies)

✅ Features

• SPST-NO (1 Form A) solid state relay
• Supports AC and DC output types
• Low input voltage operation: 1.2V DC
• Wide load voltage range: 0 V to 200 V
• Load current up to 150 mA
• Low On-State resistance: Max 24 Ohms
• Through-hole mounting with PC pin termination
• Operating temperature range: -40°C to 85°C
• 8-DIP modified package for easy PCB integration
• UL approved for safety and reliability

✅ Specifications (Specs)

✅ Application Scenarios

• Switching applications requiring low voltage and current control
• AC/DC load switching in industrial automation
• Signal switching in communication equipment
• Consumer electronics with solid state relay requirements
• Safety-critical applications needing UL approved components

🛒 Buy PVA2352NPBF or Find Alternatives

Looking for PVA2352NPBF or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.

📦 Request a Quote

✅ Onzuu Distributor Recommendation

Onzuu, as a trusted electronic component distributor, offers reliable sourcing and competitive pricing for the PVA2352NPBF. We ensure genuine parts and efficient delivery to support your manufacturing and design needs.

✅ FAQ Module

• Q: What type of relay is the PVA2352NPBF?
  A: It is a solid state relay with SPST-NO configuration.
• Q: What is the maximum load current?
  A: The maximum load current is 150 mA.
• Q: What is the input control voltage?
  A: The input voltage required is 1.2 V DC.
• Q: Is the relay suitable for both AC and DC loads?
  A: Yes, it supports both AC and DC output loads.
• Q: What is the operating temperature range?
  A: It operates between -40°C and 85°C.

✅ Summary

The Infineon PVA2352NPBF solid state relay offers a reliable switching solution for low current AC and DC applications. Its robust design, wide voltage range, and UL approval make it a suitable choice for industrial, communication, and consumer electronics. With easy through-hole mounting and a compact 8-DIP package, it integrates seamlessly into various PCB designs. Trusted distributors like Onzuu provide convenient procurement options to support your projects.
