PVI5080
Transistor, Photovoltaic Output Optoisolators Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
PVI5080
903-PVI5080
Discover the PVI5080 photovoltaic optocoupler by Infineon (formerly IR). View datasheet, specifications, and modern replacements. Ideal for isolated MOSFET drive applications.
PVI5080 Description
📚 Table of Contents
PVI5080 Optically Isolated MOSFET Driver – Overview
PVI5080 is a high-efficiency photovoltaic isolator developed by International Rectifier (now part of Infineon Technologies). It delivers reliable optical isolation and directly drives power MOSFETs and IGBTs, serving as a robust alternative to mechanical relays in switching applications.
🔧 Key Features
- Photovoltaic output designed for directly driving MOSFETs
- High isolation voltage: 4000 Vrms
- Tube packaging for through-hole DIP applications

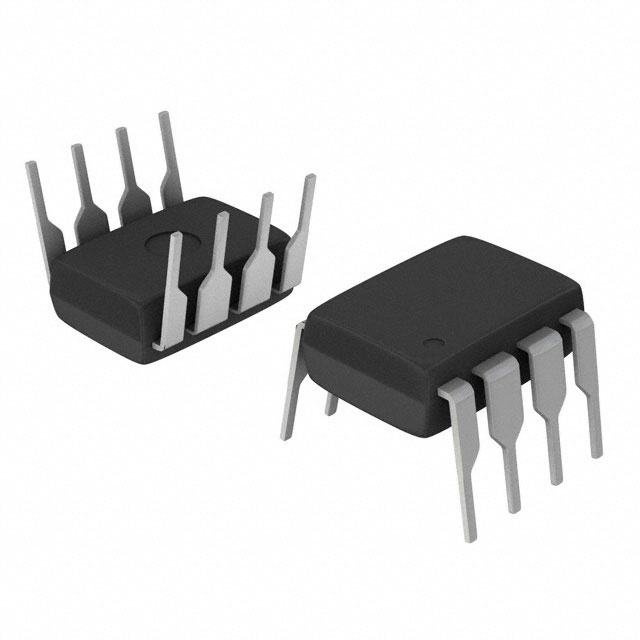

- Compact DIP-8 footprint (7.62mm pitch)
- Obsolete status – limited supply available
📊 Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Infineon Technologies |
| Series | PVI-NPbF |
| Part Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 4000 Vrms |
| Input Type | DC |
| Output Type | Photovoltaic |
| Voltage - Output (Max) | 5V |
| Current - Output / Channel | 5 µA |
| Packaging | Tube |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Base Part Number | PVI5080 |
⚙️ Applications
- Isolated gate driver for power MOSFETs
- Replacement for electromechanical relays
- Battery isolation circuits
- Solar panel and renewable energy control
- Industrial switchgear systems
Access the official datasheet for detailed electrical characteristics and package info:
📄 Download PVI5080 Datasheet (PDF)🔄 Replacements & Alternatives
If PVI5080 is out of stock or discontinued, consider the following compatible parts:
- 140100146000 / Würth Elektronik
- 140105146000 / Würth Elektronik
- 140106146000 / Würth Elektronik
- 140107146000 / Würth Elektronik
- 140108146000 / Würth Elektronik
- 140109146000 / Würth Elektronik
- 140354245000 / Würth Elektronik
- 140354245100 / Würth Elektronik
- 140354245100 / Würth Elektronik
- 140356145100 / Würth Elektronik
- HCPL-4701#500 / Broadcom
- HCPL-4701#520 / Broadcom
- HCPL-4731 / Broadcom
- HCPL-4731#020 / Broadcom
📦 Bulk Supply & Contact
Looking to source PVI5080 in bulk or need help with technical support?
We provide packaging options including Tape & Reel, Tube, and Cut Tape for prototyping. Contact Onzuu for pricing, lead times, and global shipping:
📨 Contact Us NowTechnical specifications
| Current Transfer Ratio (Max) | - | |
| Rise / Fall Time (Typ) | - | |
| Output Type | Photovoltaic | |
| Product Status | Obsolete | |
| Supplier Device Package | 8-DIP | |
| Package / Case | 8-DIP (0.300", 7.62mm) | |
| Number of Channels | 1 | |
| Current Transfer Ratio (Min) | - | |
| REACH Status | REACH Unaffected | |
| Mfr | Infineon Technologies | |
| Voltage - Forward (Vf) (Typ) | - | |
| RoHS Status | RoHS non-compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Operating Temperature | - | |
| Input Type | DC | |
| Voltage - Isolation | 4000Vrms | |
| ECCN | EAR99 | |
| Mounting Type | Through Hole | |
| Voltage - Output (Max) | 5V | |
| Series | PVI-NPbF | |
| HTSUS | 8541.49.8000 | |
| Package | Tube | |
| Vce Saturation (Max) | - | |
| Current - Output / Channel | 5µA | |
| Turn On / Turn Off Time (Typ) | - | |
| Base Product Number | PVI5080 |
