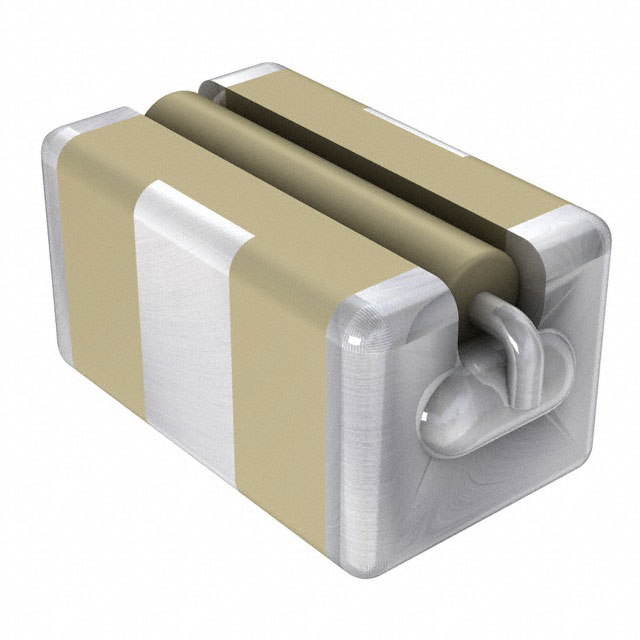

SBSGC5000103MXT
Feed Through Capacitors Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
SBSGC5000103MXT
845-SBSGC5000103MXT
Discover SBSGC5000103MXT solid tantalum capacitor from Exxelia with 10uF 50V. View datasheet, specs, aerospace & defense applications, and find authorized suppliers.
SBSGC5000103MXT Description
SBSGC5000103MXT High Voltage Ceramic Capacitor Overview
Product Introduction
The SBSGC5000103MXT is a high-performance, high-voltage ceramic capacitor designed for demanding industrial and power electronics applications. Offering a 10nF capacitance with a 500V DC rating, it ensures stable performance, low ESR, and high reliability under extreme conditions.
Key Features
- Capacitance: 10nF
- Rated Voltage: 500V DC
- Dielectric Type: High Voltage Ceramic
- Tolerance: ±10%
- Package: Radial
- Temperature Range: -55°C to +125°C
- Low ESR & ESL for high-frequency applications
Applications
- Industrial Power Supplies
- Electric Vehicle (EV) Power Management
- Inverter & Motor Drive Circuits
- Energy Storage & Filtering Systems
- Defense and Aerospace Electronics
Datasheet & Resources
Where to Buy SBSGC5000103MXT
Looking for reliable suppliers of SBSGC5000103MXT? Check inventory and prices from authorized distributors:
Frequently Asked Questions (FAQ)
- Is SBSGC5000103MXT suitable for automotive applications?
- Yes, it supports high-voltage environments typical in EV and powertrain systems.
- Can I get the SBSGC5000103MXT in bulk packaging?
- Yes, bulk and tape & reel packaging are both available through authorized distributors.
- Where can I download the latest SBSGC5000103MXT datasheet?
- You can download it here.
Technical specifications
| Insertion Loss | 38dB @ 100MHz | |
| Operating Temperature | -55°C ~ 125°C | |
| DC Resistance (DCR) (Max) | - | |
| Tolerance | ±20% | |
| ECCN | EAR99 | |
| Thread Size | - | |
| Voltage - Rated | 500V | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.179" L x 0.126" W (4.55mm x 3.20mm) | |
| Temperature Coefficient | X7R | |
| Height (Max) | 0.104" (2.65mm) | |
| Product Status | Active | |
| Ratings | - | |
| Series | SBSG | |
| Package / Case | 1812 (4532 Metric), 3 PC Pad | |
| REACH Status | REACH Unaffected | |
| Mfr | Knowles Syfer | |
| Capacitance | 10000 pF | |
| HTSUS | 8532.24.0020 | |
| Package | Tape & Reel (TR) | |
| Current | 10 A | |
| RoHS Status | ROHS3 Compliant | |
| Base Product Number | SBSGC | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
