55100-AP-04-A

Position, Proximity, Speed (Modules) - Industrial
Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
55100-AP-04-A
1065-55100-AP-04-A
Explore the Littelfuse 55100-AP-04-A analog Hall Effect sensor module. View datasheet, features, specs, application guide, and Onzuu distributor sourcing.

55100-AP-04-A Description

✅ Product Introduction

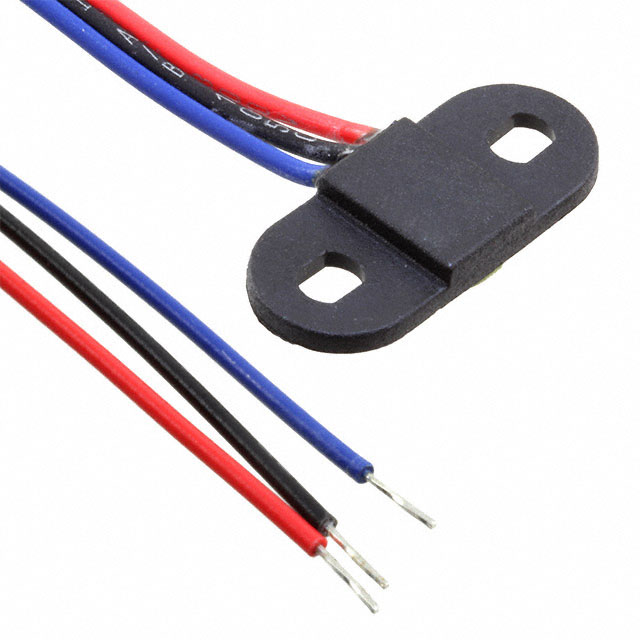

The 55100-AP-04-A is an analog Hall Effect sensor module manufactured by Littelfuse Inc.. Designed to detect the magnetic south pole, this sensor is well-suited for precision applications requiring magnetic field detection with wire lead termination. Despite its obsolete status, it remains a reference part in many legacy systems.

55100-AP-04-A

✅ Datasheet Module

Download the original datasheet for full technical specifications from Littelfuse or authorized distributors:

✅ Features

  • Analog output for magnetic field sensing
  • Detects magnetic south pole
  • Termination with wire leads for easy integration
  • Operates within a voltage supply range of 4.5V to 5.5V
  • Supports high-frequency operation up to 10 kHz
  • Reliable performance across wide temperature range (-40°C to 100°C)

✅ Specification Table

Parameter Value
Manufacturer Littelfuse Inc.
Series 55100
Part Status Obsolete
Type Hall Effect Sensor
Output Type Analog
Actuator Material Magnet, South Pole
Termination Style Wire Leads
Frequency 10 kHz
Voltage - Supply 4.5V ~ 5.5V
Operating Temperature -40°C ~ 100°C
Package / Case Module

✅ Application Scenarios

  • Industrial automation systems requiring magnetic field detection
  • Legacy devices using analog Hall sensors
  • Prototyping environments with low voltage Hall detection
  • Custom sensor arrays in robotics and motor control

🛒 Buy 55100-AP-04-A or Find Alternatives

Looking for 55100-AP-04-A or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.

📦 Request a Quote

✅ Onzuu Distributor Recommendation

As a trusted electronic components distributor, Onzuu provides reliable sourcing for rare, obsolete, and end-of-life components. If you need 55100-AP-04-A or equivalent Hall effect sensors, we can help you source them efficiently and affordably.

Visit Onzuu’s official website

✅ ✅ ✅ Frequently Asked Questions (FAQ)

Q1: Is 55100-AP-04-A still available for purchase?

A: This product is obsolete, but some distributors or Onzuu may still hold stock. Contact us for sourcing.

Q2: What’s the main function of this sensor?

A: It detects the presence of a magnetic south pole and outputs an analog signal proportional to the magnetic field.

Q3: Can I replace it with another Littelfuse Hall sensor?

A: Yes, depending on your application requirements, other Hall sensors from Littelfuse or compatible brands may be suitable.

✅ Summary

The 55100-AP-04-A Hall Effect Sensor is an analog-output, magnetic field detection sensor module ideal for embedded and industrial applications. Although now obsolete, it remains a popular part in legacy systems. For more details or procurement, reach out to Onzuu.

Technical specifications

Operating Temperature-40°C ~ 100°C (TA)
Must Release-
Must Operate-
Output TypeAnalog
Termination StyleWire Leads
ECCNEAR99
Product StatusObsolete
Series55100
TypeHall Effect Sensor
Package / CaseModule
Voltage - Supply4.5V ~ 5.5V
MfrLittelfuse Inc.
Frequency10 kHz
HTSUS8536.50.9065
PackageBox
RoHS StatusROHS3 Compliant
Actuator MaterialMagnet, South Pole
Moisture Sensitivity Level (MSL)1 (Unlimited)
