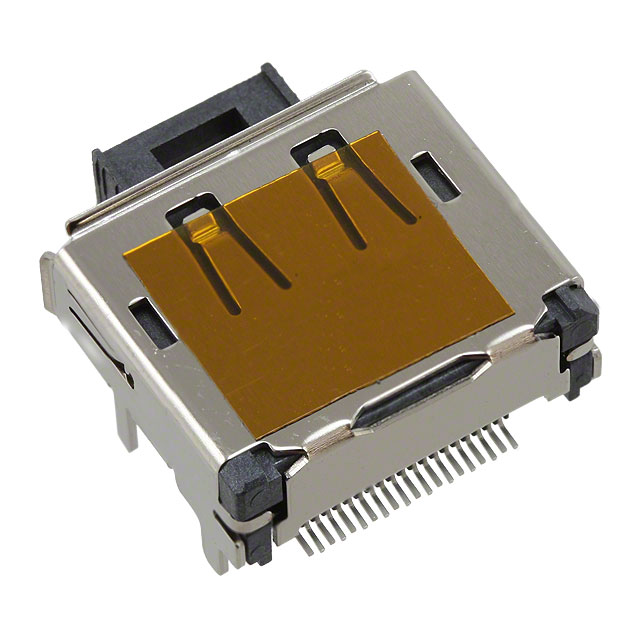

0472720024 DisplayPort Connector by Molex

The 0472720024 is a high-performance DisplayPort receptacle connector manufactured by Molex. Designed for robust multimedia data transfer, it supports up to 0.5A current and features a durable construction with a stainless-steel shield, making it ideal for high-frequency use in a variety of devices.

✅ Datasheet

Download the official datasheet for the Molex 0472720024 DisplayPort connector to access full mechanical drawings, compliance certifications, and electrical specifications.
[Download Datasheet PDF]

✅ Features

• Durable right-angle mounting for compact boards
• Latch lock and board guide for secure engagement
• UL94 V-0 flammability rating
• Gold-plated contacts for enhanced signal quality
• Rated for up to 10,000 mating cycles

✅ Specifications

✅ Application Scenarios

This connector is suitable for:

• High-resolution video output devices
• Monitors, projectors, and docking stations
• Consumer electronics requiring compact DisplayPort interfaces
• Industrial computing and embedded systems

🛒 Buy 0472720024 or Find Alternatives

Looking for 0472720024 or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.

📦 Request a Quote

✅ Onzuu Distributor Recommendation

Onzuu is a trusted global distributor of electronic components. With competitive pricing and verified stock for Molex parts, Onzuu ensures timely delivery and technical support. Visit onzuu.com to explore more options.

✅ FAQ

• Q: Is the 0472720024 RoHS compliant?
  A: Yes, this connector is RoHS compliant and meets environmental regulations.
• Q: What is the contact plating material?
  A: The contacts are finished in gold for optimal signal conductivity and corrosion resistance.
• Q: Is this connector backward compatible with mini-DisplayPort?
  A: No, it is designed for standard DisplayPort interfaces only.
• Q: Can it be used in automotive applications?
  A: It is not specifically rated for automotive use; verify environment and mechanical requirements before use.

✅ Conclusion

The Molex 0472720024 DisplayPort connector delivers reliability and high-performance signal transmission in compact form factors. Its robust shielding, long mating life, and gold contacts make it a preferred choice for designers and OEMs. For seamless procurement, technical support, and global distribution, choose Onzuu as your sourcing partner.
