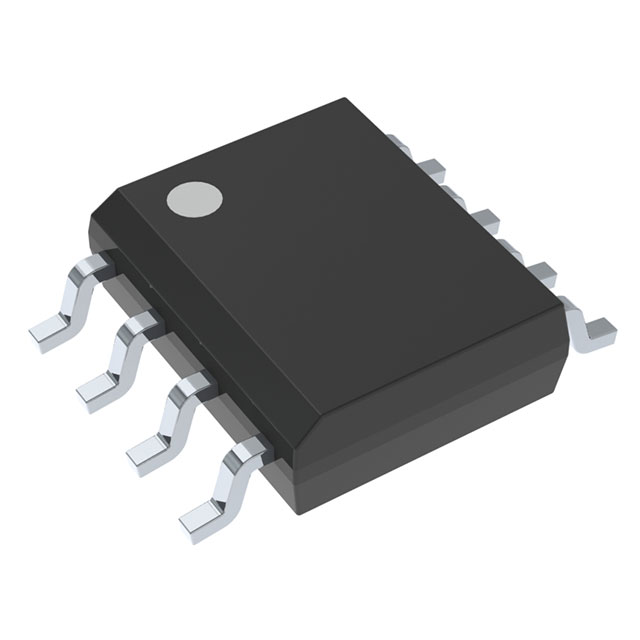

MCS1802GS-05-P Hall Effect Sensor Overview

✅ Product Introduction

The MCS1802GS-05-P is a high-performance, surface-mount Hall Effect current sensor from Monolithic Power Systems. Designed for both AC and DC current measurements, this compact device provides ratiometric voltage output with high accuracy and low response time, ideal for demanding industrial and power system applications.

✅ Datasheet Module

Download the official datasheet for detailed electrical characteristics, application circuit examples, and mechanical drawings:

• 📄 MCS1802GS-05-P Datasheet (PDF) (link to be added)

✅ Features

• Hall Effect-based contactless sensing
• Bidirectional current detection up to 5A
• Ratiometric analog voltage output
• 264mV/A sensitivity for precise feedback
• 100kHz bandwidth, 5µs fast response time
• ±2.5% accuracy, ±0.5% linearity
• Operates from 3V to 3.6V supply
• Low power consumption (10.5mA max)
• Compact SOIC-8 surface mount package

✅ Parameter Table (Specs)

✅ Application Scenarios

• Brushless DC motor control systems
• Over-current protection in industrial power supplies
• Battery management systems (BMS)
• Smart grid and energy meters
• Inverters, UPS, and solar systems
