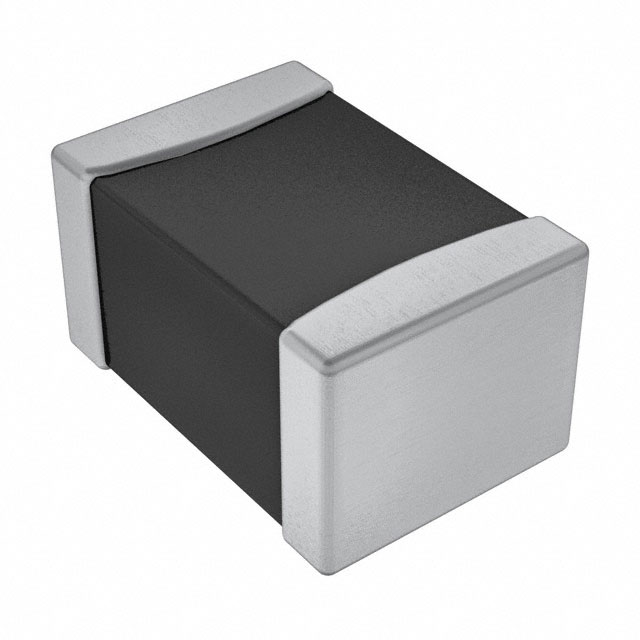

BLM18AG102BH1D (In Stock:6352)
Ferrite Beads and Chips Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
BLM18AG102BH1D
841-BLM18AG102BH1D
Explore the BLM18AG102BH1D from Murata – a 1000 Ohm EMI suppression ferrite bead ideal for automotive and power line applications. View datasheet, features, specs, and buy from Onzuu.
BLM18AG102BH1D Description
✅ Product Introduction ✅ Datasheet ✅ Features ✅ Specs ✅ Applications ✅ Purchase Entry ✅ Onzuu Distributor ✅ FAQ ✅ Conclusion
✅ Product Introduction
The BLM18AG102BH1D from Murata Electronics is a compact, high-performance EMI suppression ferrite bead designed for power line noise filtering. Part of the EMIFIL® BLM18 series, this component is ideal for applications requiring space-saving designs, low DC resistance, and AEC-Q200 reliability.
✅ Datasheet Module
✅ Features
- Compact 0603 (1608 Metric) package
- High impedance: 1000Ω @ 100MHz
- Low DCR: ≤ 500mOhm
- Rated current: 450mA max
- Wide operating temperature: -55°C to 150°C
- AEC-Q200 qualified
- Excellent for power line noise suppression
✅ Specs
| Manufacturer | Murata Electronics |
|---|---|
| Series | EMIFIL®, BLM18 |
| Part Status | Active |
| Filter Type | Power Line |
| Number of Lines | 1 |
| Impedance @ 100 MHz | 1000 Ohms |
| Rated Current | 450mA |
| Max DCR | 500mOhm |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 0603 (1608 Metric) |
| Mounting Type | Surface Mount |
| Dimensions | 1.60mm x 0.80mm x 0.95mm |
| Base Product Number | BLM18AG |
✅ Applications
- DC-DC converter input/output noise suppression
- Automotive ECU power lines (AEC-Q200 compliant)
- Consumer electronics: Smartphones, tablets, set-top boxes
- Industrial controllers and power systems
🛒 Buy BLM18AG102BH1D or Find Alternatives
Looking for BLM18AG102BH1D or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.
✅ Onzuu Distributor Recommendation
Looking for a trusted electronic component supplier? Onzuu specializes in high-quality passive components like the BLM18AG102BH1D. We ensure:
- Authentic Murata parts
- Bulk availability for OEMs
- Global shipping and competitive pricing
✅ FAQ
Q: What is the primary use of the BLM18AG102BH1D?
A: It is designed to suppress high-frequency noise on power lines in compact electronics.
Q: Is this part suitable for automotive applications?
A: Yes, it meets AEC-Q200 requirements for automotive-grade components.
Q: What’s the difference between DCR and impedance?
A: DCR is the DC resistance at zero frequency, while impedance is the AC resistance at a specific frequency (100 MHz in this case).
✅ Conclusion
The BLM18AG102BH1D offers a reliable and compact solution for EMI filtering, especially in power lines. With its high impedance, AEC-Q200 rating, and Murata’s industry-leading reliability, it’s a top choice for engineers working on automotive, industrial, and consumer electronics.
Technical specifications
| Operating Temperature | -55°C ~ 150°C | |
| DC Resistance (DCR) (Max) | 500mOhm | |
| Impedance @ Frequency | 1 kOhms @ 100 MHz | |
| ECCN | EAR99 | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) | |
| Height (Max) | 0.037" (0.95mm) | |
| Product Status | Active | |
| Ratings | AEC-Q200 | |
| Series | EMIFIL®, BLM18 | |
| Package / Case | 0603 (1608 Metric) | |
| Number of Lines | 1 | |
| Current Rating (Max) | 450mA | |
| REACH Status | REACH Unaffected | |
| Mfr | Murata Electronics | |
| Filter Type | Power Line | |
| HTSUS | 8548.00.0000 | |
| Package | Tape & Reel (TR) | |
| RoHS Status | ROHS3 Compliant | |
| Base Product Number | BLM18AG | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
