BLM18SG121TN1D (In Stock:329428)
Ferrite Beads and Chips Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
BLM18SG121TN1D
841-BLM18SG121TN1D
Discover the BLM18SG121TN1D ferrite bead from Murata Electronics. Features include 120 Ohms impedance at 100 MHz, 3A current rating, and 0603 package. Available at Onzuu.
20+:$0.03590
200+:$0.02857
600+:$0.02352
2000+:$0.02126
10000+:$0.01914
20000+:$0.01998
BLM18SG121TN1D Description

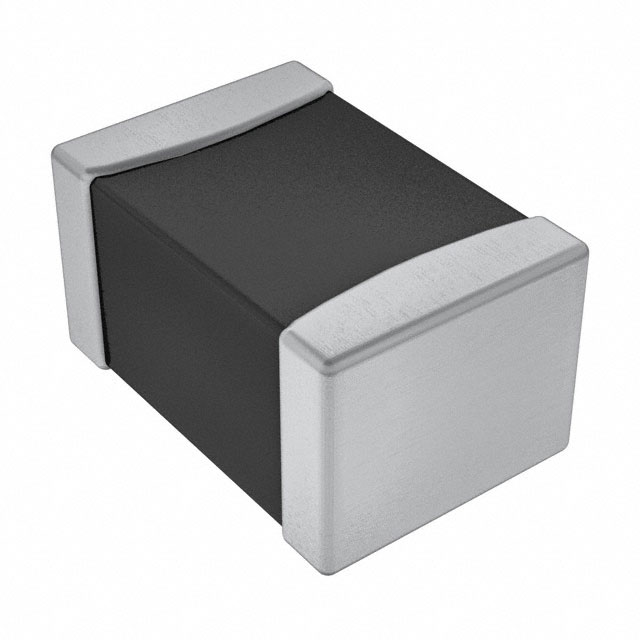

BLM18SG121TN1D - Murata Surface Mount Ferrite Bead
The BLM18SG121TN1D is a high-performance surface mount ferrite bead from Murata's EMIFIL®, BLM18 series. It is engineered to suppress high-frequency noise in power lines for a variety of electronic applications. This component is ideal for compact electronic systems requiring robust EMI suppression with minimal power loss.
Datasheet
Download Murata BLM18SG121TN1D Datasheet (PDF)
Features
- Impedance: 120 Ohms @ 100 MHz
- High current handling up to 3A
- Low DC resistance: 25 mOhms max
- Small size: 0603 package (1.60mm x 0.80mm)
- Operating temperature range: -55°C to +125°C
- RoHS compliant
Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Murata Electronics |
| Series | EMIFIL®, BLM18 |
| Part Status | Active |
| Filter Type | Power Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 120 Ohms @ 100 MHz |
| Current Rating (Max) | 3A |
| DC Resistance (DCR) | 25 mOhms max |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0603 (1608 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.026" (0.65mm) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Base Product Number | BLM18SG |
Applications
- Power supply lines for mobile devices
- Consumer electronics
- Computing devices and peripherals
- Telecommunication equipment
- Automotive electronics (non-safety critical)
🛒 Buy BLM18SG121TN1D or Find Alternatives
Looking for BLM18SG121TN1D or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.
Why Choose Onzuu?
Onzuu is your trusted distributor for electronic components. We offer authentic Murata products, real-time inventory updates, fast delivery, and full technical support for all B2B customers.
Frequently Asked Questions (FAQ)
- Q: What does 120 Ohms @ 100 MHz mean?
A: It indicates the impedance of the ferrite bead at the frequency of 100 MHz, which helps in filtering high-frequency noise. - Q: Can I use this in automotive applications?
A: Yes, but only in non-safety critical areas, as per manufacturer recommendations. - Q: Is this component RoHS compliant?
A: Yes, this component is RoHS compliant.
Conclusion
The BLM18SG121TN1D ferrite bead offers compact, efficient noise suppression for modern electronic circuits. Its high current capability, low DCR, and robust temperature performance make it a reliable choice for designers. Trust Onzuu for authentic Murata parts and professional distribution services.
Technical specifications
| Operating Temperature | -55°C ~ 125°C | |
| DC Resistance (DCR) (Max) | 25mOhm | |
| Impedance @ Frequency | 120 Ohms @ 100 MHz | |
| ECCN | EAR99 | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) | |
| Height (Max) | 0.026" (0.65mm) | |
| Product Status | Active | |
| Ratings | - | |
| Series | EMIFIL®, BLM18 | |
| Package / Case | 0603 (1608 Metric) | |
| Number of Lines | 1 | |
| Current Rating (Max) | 3A | |
| REACH Status | REACH Unaffected | |
| Mfr | Murata Electronics | |
| Filter Type | Power Line | |
| HTSUS | 8548.00.0000 | |
| Package | Tape & Reel (TR) | |
| RoHS Status | ROHS3 Compliant | |
| Base Product Number | BLM18SG | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
