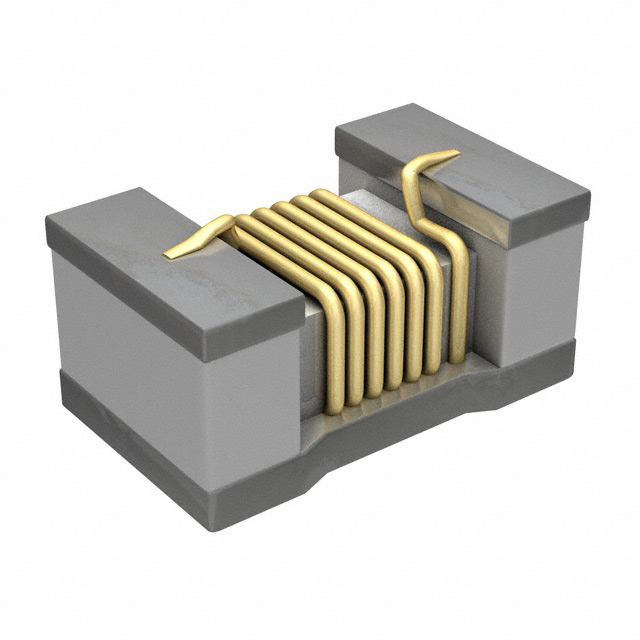

LQW15AN33NJ00D (In Stock:27798)
Fixed Inductors Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
LQW15AN33NJ00D
71-LQW15AN33NJ00D
Explore Murata LQW15AN33NJ00D: a 33nH ±5% wirewound SMD inductor in 0402 package. View full specs, Q factor, DCR, SRF, and download datasheet.
LQW15AN33NJ00D Description
📄 LQW15AN33NJ00D Datasheet
You can download the official Murata datasheet for LQW15AN33NJ00D here:
📊 Technical Specifications
| Inductance | 33nH |
|---|---|
| Tolerance | ±5% |
| Rated Current | 260 mA |
| DCR | Max 630 mΩ |
| Q Factor @ 250 MHz | 25 |
| SRF | 3.2 GHz |
| Core Material | Non-Magnetic |
| Mounting Type | Surface Mount (SMD) |
| Package | 0402 (1.00mm x 0.50mm) |
| Operating Temp | -55°C to +125°C |
🔧 Key Features
- Drum Core, Wirewound structure
- High Q and low DCR for RF signal lines
- Small 0402 footprint ideal for compact PCBs
🚗 Typical Applications
- Smartphones, Tablets
- RF Matching Networks
- Automotive Electronics (where AEC-Q200 not required)
🔄 Cross Reference / Alternative Models
- LQW15AN39NJ00D – 39nH version, same footprint
- LQW15AN27NJ00D – 27nH, slightly lower inductance
- LQM18PNR33MJ0 – Shielded, different series
🛒 Where to Buy LQW15AN33NJ00D
Need large-volume supply or BOM matching? Contact Onzuu for industrial solutions and technical support.
Technical specifications
| Q @ Freq | 25 @ 250MHz | |
| Height - Seated (Max) | 0.024" (0.60mm) | |
| Current Rating (Amps) | 260 mA | |
| Product Status | Active | |
| Supplier Device Package | - | |
| Ratings | - | |
| Inductance | 33 nH | |
| Package / Case | 0402 (1005 Metric) | |
| REACH Status | REACH Unaffected | |
| Frequency - Self Resonant | 3.2GHz | |
| Mfr | Murata Electronics | |
| Features | - | |
| Material - Core | Non-Magnetic | |
| RoHS Status | ROHS3 Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Operating Temperature | -55°C ~ 125°C | |
| Current - Saturation (Isat) | - | |
| Inductance Frequency - Test | 100 MHz | |
| Tolerance | ±5% | |
| ECCN | EAR99 | |
| Shielding | Unshielded | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | |
| DC Resistance (DCR) | 630mOhm Max | |
| Series | LQW15 | |
| Type | Drum Core, Wirewound | |
| HTSUS | 8504.50.8000 | |
| Package | Tape & Reel (TR) | |
| Base Product Number | LQW15AN |
