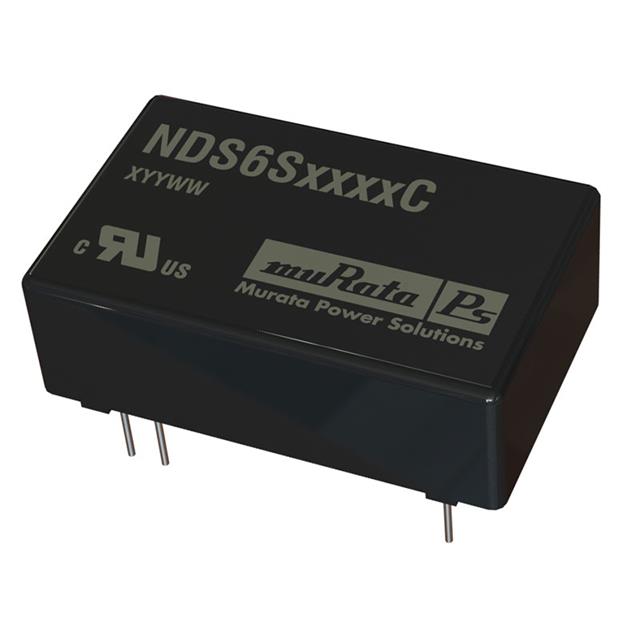

NDS6D2412C Description
NDS6D2412C - Murata Isolated DC-DC Converter Module
The NDS6D2412C is a compact, high-efficiency isolated DC-DC converter module manufactured by Murata Power Solutions. Delivering ±12V dual outputs with a 6W power rating, this module is ideal for commercial and industrial applications requiring electrical isolation and regulated power conversion.
Datasheet
Key Features
- Dual isolated outputs: +12V and -12V
- 6W total output power
- High efficiency up to 87%
- Wide input voltage range: 18V to 36V
- Compact 24-DIP through-hole package
- 1500VDC isolation voltage
- Wide operating temperature: -40°C to +85°C
Specifications
| Manufacturer | Murata Power Solutions Inc. |
|---|---|
| Series | NDS6 (6W) |
| Part Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Input Voltage Range | 18V - 36V |
| Output Voltage | +12V, -12V |
| Max Output Current | 250mA (each output) |
| Power | 6W |
| Isolation Voltage | 1.5kV |
| Efficiency | 87% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 8 Leads |
| Dimensions | 32.0mm x 20.0mm x 10.0mm |
| Operating Temperature | -40°C to +85°C |
| Base Product Number | NDS6D24 |
Application Scenarios
- Industrial control systems
- Telecommunication equipment
- Isolated sensor power supplies
- Medical devices (non-critical)
- Embedded systems with dual voltage requirements
🛒 Buy NDS6D2412C or Find Alternatives
Looking for NDS6D2412C or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.
Why Choose Onzuu as Your Distributor?
Onzuu is a trusted distributor of Murata components. We provide:
- Genuine parts directly from manufacturers
- Fast global shipping
- Bulk order discounts for B2B clients
- Real-time stock updates and procurement support
Visit Onzuu.com to learn more >>
FAQs
- Q1: Is the NDS6D2412C suitable for automotive applications?
- A1: No, it is mainly designed for ITE (commercial) environments and does not carry automotive certifications.
- Q2: Can it operate continuously at full load in 85°C ambient?
- A2: Yes, provided adequate derating and airflow are maintained as specified in the datasheet.
- Q3: Are the outputs independently isolated?
- A3: The outputs are symmetrically isolated from the input and referenced to each other (+/-12V).
Conclusion
The NDS6D2412C offers an excellent solution for compact dual-output isolated DC-DC conversion. With its wide input range, high efficiency, and robust design, it suits a wide variety of applications from embedded control to commercial-grade equipment. For secure procurement, Onzuu provides reliable global distribution and support for industrial buyers.
Technical specifications
| Unit Weight | 0.599657 oz | |
| Typical Input Voltage (V) | 24 | |
| Minimum Isolation Voltage | 1500VDC | |
| Product | Isolated | |
| PPAP | No | |
| Product Status | Active | |
| RoHS | RoHS Compliant | |
| Automotive | No | |
| Current - Output (Max) | 250mA, 250mA | |
| Industry | Industrial | |
| Voltage - Input (Min) | 18V | |
| Line Regulation | 0.1%|0.2% | |
| Package / Case | 24-DIP Module, 8 Leads | |
| Switching Frequency (kHz) | 130(Typ) | |
| Efficiency | 87% | |
| Maximum Input Voltage (V) | 36 | |
| REACH Status | REACH Affected | |
| Product Weight (g) | 16.4 | |
| EU RoHS | Compliant with Exemption | |
| Moisture Sensitivity Level (MSL) | Not Applicable | |
| Isolation Voltage | 1.5 kV | |
| Input/Output Type | DC/DC | |
| Operating Temperature | -40°C ~ 85°C | |
| Output Power | 6 W | |
| Voltage - Output 2 | -12V | |
| Voltage - Output 3 | - | |
| Voltage - Isolation | 1.5 kV | |
| ECCN | EAR99 | |
| Input Voltage | 18 V to 36 V | |
| Voltage - Output 1 | 12V | |
| Mounting Type | Through Hole | |
| Size / Dimension | 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm) | |
| Pin Count | 8 | |
| Mounting | Through Hole | |
| Power (Watts) | 6 W | |
| Lead Shape | Through Hole | |
| Output Power (W) | 6 | |
| Output Voltage (V) | -12|12 | |
| HTSUS | 8504.40.9580 | |
| Package | Tube | |
| Load Regulation | 1% | |
| Output Current (A) | -0.25|0.25 | |
| USHTS | 8504409580 | |
| Application | Industrial | |
| Efficiency (%) | 87(Typ) | |
| Minimum Input Voltage (V) | 18 | |
| PCB changed | 8 | |
| HTS | 8542.39.00.60 | |
| Output Type | Fixed | |
| Voltage - Input (Max) | 36V | |
| ECCN (US) | EAR99 | |
| Output Current-Channel 1 | 250 mA | |
| Input Voltage - Max | 36 V | |
| Output Current-Channel 2 | 250 mA | |
| Minimum Operating Temperature (°C) | -40 | |
| Maximum Operating Temperature (°C) | 85 | |
| Input Voltage - Min | 18 V | |
| Package Height | 10.5 | |
| Mfr | Murata Power Solutions Inc. | |
| Height | 10 mm (0.394 in) | |
| Features | - | |
| Maximum Operating Temperature | + 85 C | |
| Width | 20 mm (0.787 in) | |
| RoHS Status | ROHS3 Compliant | |
| Mounting Style | Through Hole | |
| Output Voltage-Channel 1 | 12 V | |
| Output Voltage-Channel 2 | - 12 V | |
| Applications | ITE (Commercial) | |
| Dimensions | 32 mm x 20 mm x 10 mm | |
| Input Voltage, Nominal | 24 V | |
| Package Length | 32 | |
| Minimum Operating Temperature | - 40 C | |
| Number of Outputs | 2 | |
| Series | NDS6 (6W) | |
| Type | Isolated Module | |
| Length | 32 mm (1.26 in) | |
| Part Status | Active | |
| Isolation | Isolated | |
| Switching Regulator | Yes | |
| Package Width | 20 | |
| Base Product Number | NDS6D24 |
