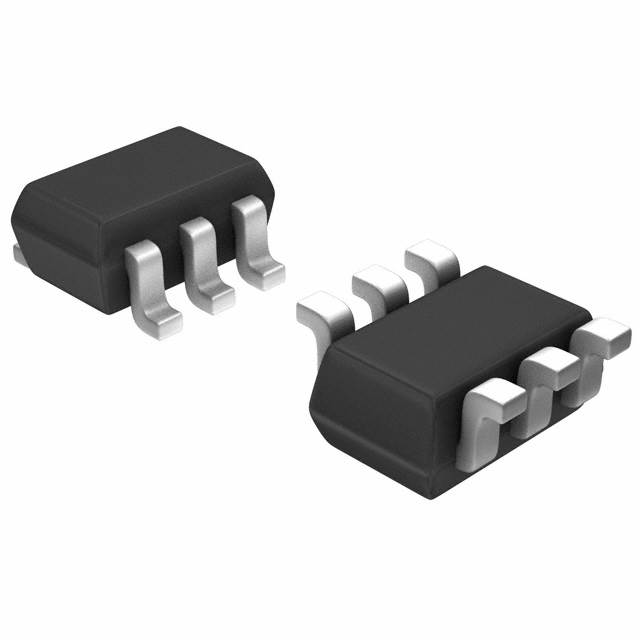

BGA2776,699
860-BGA2776,699
Explore BGA2776 Series RF amplifier specs, datasheet, and features. Buy from Onzuu – your trusted source for obsolete NXP RF components.

BGA2776,699 Description

Product Overview: BGA2776,699 RF Amplifier

The BGA2776,699 is a high-gain RF amplifier from NXP USA Inc., designed for ISM applications across a broad frequency range of 0Hz to 3GHz. Known for its reliable performance and compact packaging, this device is ideal for signal amplification in low-noise systems. Though now classified as obsolete, the BGA2776,699 continues to be sought after by designers and engineers for replacement and maintenance in legacy systems.

BGA2776,699

While BGA2776,699 features Tape & Box (TB) packaging, another variant of the same base product, the BGA2776,115, offers identical electrical characteristics but comes in Tape & Reel (TR) packaging. Both share the same 6-TSSOP, SOT-363 surface-mount form factor and belong to the versatile BGA27 base family.

📄 Download Datasheet for BGA2776,699

🔍 Key Features of BGA2776,699

  • High gain: 23.2dB @ 1GHz
  • Low noise figure: 4.9dB
  • High linearity with P1dB: 7.2dBm
  • Supply voltage: 5V to 6V
  • Low supply current: 24.4mA
  • Compact SOT-363 / 6-TSSOP Package
  • Surface mount for high-density PCB integration

📊 Technical Specifications

Parameter BGA2776,699 BGA2776,115
Manufacturer NXP USA Inc.
Frequency Range 0Hz to 3GHz
Gain 23.2dB
Noise Figure 4.9dB
P1dB Output 7.2dBm
Test Frequency 1GHz
Supply Voltage 5V ~ 6V
Current Consumption 24.4mA
Mounting Type Surface Mount
Package / Case 6-TSSOP, SC-88, SOT-363
Packaging Tape & Box (TB) Tape & Reel (TR)
Status Obsolete

🔧 Application Scenarios

The BGA2776 series is commonly used in:

  • ISM band RF systems (Industrial, Scientific, Medical)
  • RF signal chain amplification
  • Wireless communication modules
  • Legacy IoT and telemetry equipment
  • Replacement in discontinued industrial control boards

Explore BGA27 Series

Mfr Part # Download Datasheets Price Price by Quantity Series Package Product Status Frequency P1dB Gain Noise Figure RF Type Voltage - Supply Current - Supply Test Frequency Mounting Type Package / Case Supplier Device Package
BGA2748,115  Datasheet PDF In Stock 6,000 : $0.13548 - Tape & Box (TB) Obsolete 0Hz ~ 3GHz 7.2dBm 23.2dB 4.9dB ISM 5V ~ 6V 24.4mA 1GHz Surface Mount 6-TSSOP, SC-88, SOT-363 6-TSSOP
BGA2709,115 Datasheet PDF In Stock 3,000 : $0.14365 - Tape & Reel (TR) Obsolete 0Hz ~ 4GHz -8dBm 22dB 2.6dB ~ 2.8dB ISM 5V ~ 6V 4.3mA 1GHz Surface Mount 6-TSSOP, SC-88, SOT-363 6-TSSOP
BGA2712,115 Datasheet PDF In Stock 3,000 : $0.14365 - Tape & Reel (TR) Obsolete 0Hz ~ 3GHz 7.2dBm 23.2dB 4.9dB ISM 5V ~ 6V 24.4mA 1GHz Surface Mount 6-TSSOP, SC-88, SOT-363 6-TSSOP
BGA2716,115 Datasheet PDF In Stock Obsolete - Tape & Reel (TR) Obsolete 1.8GHz - 22.7dB 4dB ISM 5V ~ 6V 23.5mA 1GHz Surface Mount 6-TSSOP, SC-88, SOT-363 6-TSSOP
BGA2776,115 Datasheet PDF In Stock Obsolete - Tape & Reel (TR) Obsolete 50MHz ~ 3.6GHz 8.9dBm 22.9dB 5.3dB ISM 5V ~ 6V 15.9mA 1GHz Surface Mount 6-TSSOP, SC-88, SOT-363 6-TSSOP
BGA2714,115 Datasheet PDF In Stock Obsolete - Tape & Reel (TR) Obsolete 20MHz ~ 2.5GHz 12.1dBm 21.4dB 4.5dB ISM 3V ~ 4V 33.3mA 1GHz Surface Mount 6-TSSOP, SC-88, SOT-363 6-TSSOP
BGA2715,115 Datasheet PDF In Stock 1 : $0.35000 / 3,000 : $0.14365 - Cut Tape (CT) Obsolete 100MHz ~ 3GHz -2.6dBm 24dB 2.3dB ISM 5V ~ 6V 8mA 1GHz Surface Mount 6-TSSOP, SC-88, SOT-363 6-TSSOP
BGA2711,115 Datasheet PDF In Stock Obsolete - Tape & Reel (TR) Obsolete 100MHz ~ 2.2GHz -9.2dBm 21.8dB 1.9dB ISM 3V ~ 4V 15mA 1GHz Surface Mount 6-TSSOP, SC-88, SOT-363 6-TSSOP
BGA2709,115 Datasheet PDF In Stock Obsolete - Tape & Reel (TR) Obsolete 0Hz ~ 2.7GHz -9dBm 22dB 3dB - 4V 10mA 2.15GHz Surface Mount 6-TSSOP, SC-88, SOT-363 6-TSSOP
BGA2711,115 Datasheet PDF In Stock Obsolete - Tape & Reel (TR) Obsolete 1GHz ~ 3.6GHz 2.8dBm 13.1dB 4.8dB ISM 5V ~ 6V 12.6mA 1GHz Surface Mount 6-TSSOP, SC-88, SOT-363 6-TSSOP
BGA2717,115 Datasheet PDF In Stock Obsolete - Tape & Reel (TR) Obsolete 1GHz ~ 3.2GHz 4.8dBm 21.3dB 3.9dB ISM 5V ~ 6V 12.3mA 1GHz Surface Mount 6-TSSOP, SC-88, SOT-363 6-TSSOP

🛒 Buy BGA2776,699 & BGA27 Series or Find Alternatives

Looking for BGA2776,699 & BGA2776 Series or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.

📦 Request a Quote

🌐 Why Choose Onzuu as Your BGA27 Distributor?

Onzuu is a reliable B2B electronic components distributor offering professional procurement services for obsolete and hard-to-find parts like the BGA2776,699 and BGA2776,115. We provide:

  • 100% authentic components from verified sources
  • Fast global delivery and traceable logistics
  • Support for industrial legacy replacement projects
  • Dedicated sourcing team for obsolete semiconductors

❓ Frequently Asked Questions (FAQ)

Q1: Are BGA2776,699 and BGA2776,115 electrically the same?

Yes. Both share identical specifications including frequency, gain, noise figure, and package type. The only difference lies in their packaging style—TB vs. TR.

Q2: Can I use BGA2776,115 as a replacement for BGA2776,699?

Yes, if your application allows for Tape & Reel packaging, BGA2776,115 can serve as a drop-in replacement.

Q3: Why is BGA2776 obsolete?

NXP discontinued the BGA2776 series due to technology upgrades and manufacturing streamlining. However, it remains available through surplus stock and specialty distributors like Onzuu.

Q4: Can I still buy BGA2776 in large quantities?

Yes, Onzuu can help you source remaining inventory through our global supplier network. Contact our team for availability and MOQ.

📌 Conclusion

The BGA2776,699 remains a relevant choice for RF engineers working on legacy or specialized ISM systems. With its high gain and low noise performance, this component still finds application in professional RF designs. Though obsolete, alternatives like the BGA2776,115 help maintain design continuity. Choose Onzuu for reliable sourcing of the BGA27 series and other hard-to-find components.
