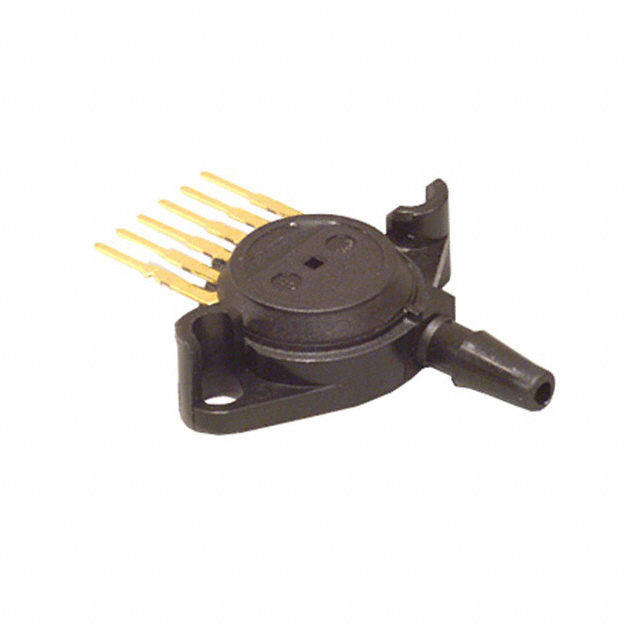

MPX5050GP (In Stock:3)
Pressure Sensors, Transducers Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
MPX5050GP
512-MPX5050GP
Discover MPX5050GP analog pressure sensor: features, datasheet, specs, and Onzuu procurement options. Ideal for vented gauge pressure sensing up to 50kPa.
MPX5050GP Description
MPX5050GP Pressure Sensor Overview
The MPX5050GP from NXP USA Inc. is a temperature-compensated analog pressure sensor designed for vented gauge applications. This barbed-port sensor measures pressure in the range of 0 to 50kPa (7.25 PSI) and delivers a reliable analog voltage output from 0.2V to 4.7V. Engineered for through-hole PCB mounting, it's widely used in automotive, medical, and embedded system designs where board-mount pressure sensing is required.
MPX5050GP Datasheet Download
Access the official datasheet here: MPX5050GP Datasheet PDF
Key Features of MPX5050GP
- Measurement Range: 0 – 50kPa (7.25 PSI)
- Output Voltage: 0.2 V to 4.7 V (analog)
- Vented Gauge Type with Barbed Port
- ±2.5% Accuracy (Compensated)
- Temperature Range: -40°C to 125°C
- RoHS 3 Compliant, REACH Unaffected
- Not Moisture Sensitive (MSL: Not Applicable)
- PCB Mountable with Through-Hole SIP Package
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Series | MPX5050 |
| Operating Pressure | 7.25 PSI (50kPa) |
| Maximum Pressure | 29.01 PSI (200kPa) |
| Output Type | Analog Voltage |
| Output Voltage | 0.2 V ~ 4.7 V |
| Accuracy | ±2.5% |
| Pressure Type | Vented Gauge |
| Port Style / Size | Barbed / Male - 0.19" (4.93mm) Tube |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module |
| Termination Style | PC Pin |
| Compliance | RoHS3, REACH Unaffected |
Application Scenarios
- Embedded System Pressure Monitoring
- HVAC System Controls
- Barometric Pressure Monitoring
- Industrial Process Automation
- Medical Ventilators & Air Flow Detection
🛒 Buy MPX5050GP or Find Alternatives
Looking for MPX5050GP or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.
Why Choose Onzuu as Your Component Distributor?
- ✅ Fast global shipping & B2B quotes
- ✅ Original components with traceability
- ✅ Technical support for sensor integration
- ✅ Inventory for obsolete or hard-to-find parts
Contact Onzuu today to get a professional quote for MPX5050GP or alternative compatible sensors.
Frequently Asked Questions (FAQ)
Can MPX5050GP be used with Arduino?
Yes. Its analog output (0.2V~4.7V) can be read via Arduino ADC pins with a 5V reference.
Is the MPX5050GP suitable for liquid pressure?
No. It's intended for clean, dry air and is not rated for liquid exposure.
What is the difference between MPX5050GP and MPX5050DP?
The "GP" version has a single barbed port for gauge pressure, while "DP" has two ports for differential measurements.
Is MPX5050GP still in production?
Yes. As of the latest status, the MPX5050GP is listed as Active.
Summary
The MPX5050GP remains a trusted solution for compact, analog-based gauge pressure sensing. With robust temperature compensation, board-mount design, and industry-standard barbed port configuration, it's a practical sensor for embedded engineers and OEM system integrators. Buy it from Onzuu for trusted sourcing and responsive support.
Technical specifications
| Operating Pressure | 7.25PSI (50kPa) | |
| Output Type | Analog Voltage | |
| Port Style | Barbed | |
| Pressure Type | Vented Gauge | |
| Product Status | Active | |
| Supplier Device Package | - | |
| Accuracy | ±2.5% | |
| Package / Case | 6-SIP Module | |
| Voltage - Supply | 4.75V ~ 5.25V | |
| Output | 0.2 V ~ 4.7 V | |
| REACH Status | REACH Unaffected | |
| Mfr | NXP USA Inc. | |
| Features | Temperature Compensated | |
| RoHS Status | ROHS3 Compliant | |
| Moisture Sensitivity Level (MSL) | Not Applicable | |
| Operating Temperature | -40°C ~ 125°C | |
| Applications | Board Mount | |
| Termination Style | PC Pin | |
| Port Size | Male - 0.19" (4.93mm) Tube | |
| ECCN | EAR99 | |
| Mounting Type | Through Hole | |
| Series | MPX5050 | |
| HTSUS | 8542.39.0001 | |
| Package | Tray | |
| Maximum Pressure | 29.01PSI (200kPa) | |
| Base Product Number | MPX5050 |
