2N7002L
Single FETs, MOSFETs Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
2N7002L
278-2N7002L
Explore the 2N7002L N-Channel MOSFET: detailed specs, datasheet, features, applications, and sourcing options. Available in SOT-23-3 package, rated 60V, 115mA. Distributed by Onzuu.
2N7002L Description
πΉ Product Introduction

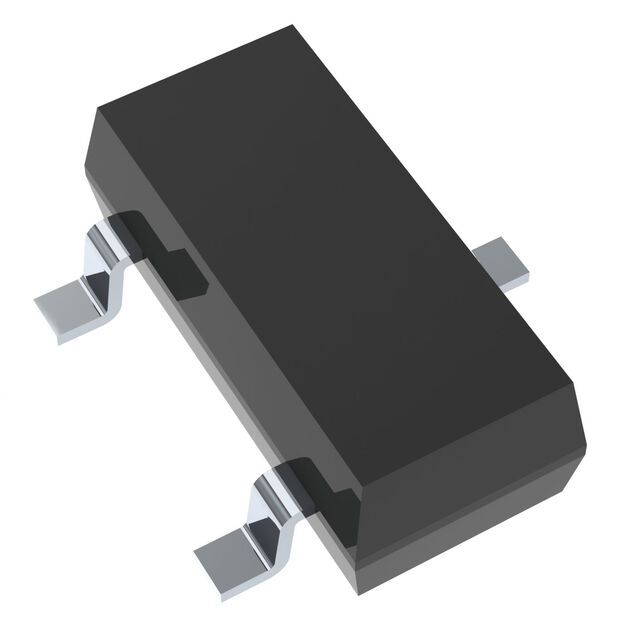

The 2N7002L is a compact, low-power N-Channel MOSFET from onsemi designed for general-purpose switching applications. With a drain-to-source voltage rating of 60V and a continuous drain current of 115mA at 25°C, it is ideal for use in microcontroller circuits, LED switching, and signal control. It comes in a SOT-23-3 package, making it space-efficient for SMT PCB designs.
πΉ Datasheet
For detailed electrical characteristics and thermal data, download the official datasheet:
π Download 2N7002L Datasheet (PDF)
πΉ Features
- N-Channel enhancement mode MOSFET
- Drain-Source voltage (VDS) up to 60V
- Gate threshold voltage (VGS(th)) max 2.5V
- ±20V Gate-Source voltage (VGS)
- Low RDS(on): 7.5Ω @ 500mA, 10V
- Input capacitance: 50 pF @ 25V
- Power dissipation: 200mW (TA)
- Operating junction temperature: -55°C to +150°C
- Available in SOT-23-3 package
πΉ Specifications
| 2N7002L Electrical Characteristics | |
|---|---|
| Manufacturer | onsemi |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain-Source Voltage (VDS) | 60V |
| Continuous Drain Current (ID) | 115mA @ 25°C |
| Gate Drive Voltage | 5V, 10V |
| RDS(on) (Max) | 7.5Ω @ 500mA, 10V |
| VGS(th) (Max) | 2.5V @ 250μA |
| VGS (Max) | ±20V |
| Input Capacitance (Ciss) | 50pF @ 25V |
| Power Dissipation (Max) | 200mW (TA) |
| Operating Temperature | -55°C to +150°C (TJ) |
| Mounting Type | Surface Mount |
| Package | SOT-23-3 / TO-236-3 / SC-59 |
| Base Part Number | 2N7002 |
πΉ Applications
- General-purpose signal switching
- Relay driver circuits
- LED and light strip switching
- Small DC motor control
- Microcontroller-based I/O switching (Arduino, STM32, etc.)
- Low-voltage power management circuits
π Buy 2N7002L or Find Alternatives
Looking for 2N7002L or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.
πΉ Onzuu Distributor Recommendation
Onzuu is your reliable partner for sourcing authentic electronic components. We serve B2B customers globally, including OEMs, EMS providers, and design engineers. We offer competitive pricing, traceable sourcing, and fast global delivery.
- β 100% genuine Onsemi components
- β Ideal for industrial and prototyping use
- β Full BOM services and sourcing
- π Visit Onzuu.com for instant RFQs
πΉ Frequently Asked Questions (FAQ)
- Q1: What is the difference between 2N7002 and 2N7002L?
- A1: The “L” usually denotes a specific packaging or lead finish variant, but electrical specifications are the same. They are generally interchangeable.
- Q2: Can 2N7002L be triggered by a 3.3V GPIO?
- A2: It may partially turn on at 3.3V, but not fully saturate. For better performance, use a logic-level MOSFET if working with 3.3V microcontrollers.
- Q3: Is it suitable for PWM control?
- A3: Yes, it can handle moderate PWM switching for small loads like LEDs and buzzers, provided current and thermal limits are respected.
πΉ Conclusion
The 2N7002L is a versatile and efficient N-channel MOSFET perfect for general-purpose switching tasks. With a robust design and small footprint, it fits seamlessly into modern electronic circuits. Whether you're prototyping or designing commercial products, 2N7002L offers reliability, simplicity, and availability at scale.
π§ Choose Onzuu to streamline your sourcing process for 2N7002L and other high-performance semiconductors.
