MBR0520LT1
Single Diodes Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
MBR0520LT1
280-MBR0520LT1
Discover the MBR0520LT1 Schottky Rectifier from onsemi with full specs, datasheet, features, and applications. Obsolete part? Buy or replace it via Onzuu now.
MBR0520LT1 Description
MBR0520LT1 Overview

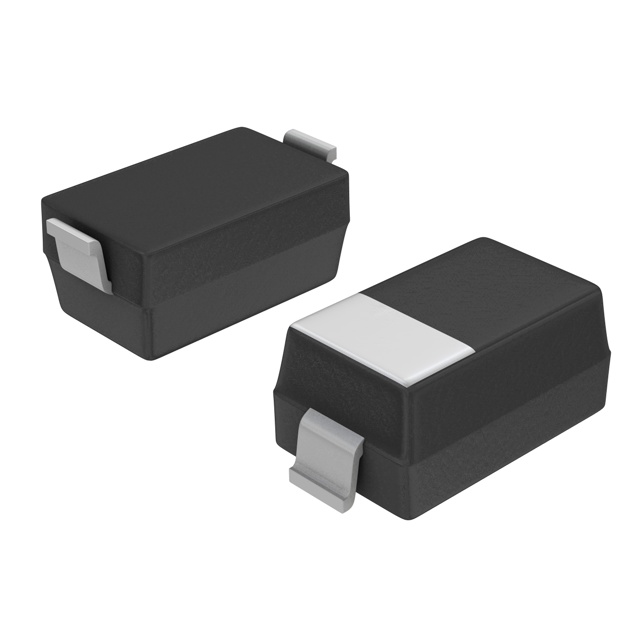

The MBR0520LT1 from onsemi is a Schottky Barrier Rectifier optimized for high-frequency switching applications. With a compact SOD-123 surface mount package and low forward voltage drop, it is ideal for low voltage, high efficiency applications such as DC-DC converters, portable electronics, and LED lighting circuits.
Datasheet
Download MBR0520LT1 Datasheet (PDF)
Features
- Low forward voltage drop: 385 mV @ 500 mA
- Fast recovery time: suitable for high-speed switching
- Maximum DC reverse voltage: 20 V
- Average rectified current: 500 mA
- Surface mount package (SOD-123) for compact designs
- Reverse leakage current: 250 µA @ 20 V
Specifications
| Parameter | Value |
|---|---|
| Manufacturer | onsemi |
| Technology | Schottky |
| Part Status | Obsolete |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 500 mA |
| Voltage - Forward (Vf) (Max) @ If | 385 mV @ 500 mA |
| Current - Reverse Leakage @ Vr | 250 µA @ 20 V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Supplier Device Package | SOD-123 |
Application Scenarios
- Low voltage rectification in DC-DC converters
- Polarity protection in USB-powered devices
- Flyback diodes in high-speed switching circuits
- Power supply modules for portable electronics
- LED lighting rectifier stage
🛒 Buy MBR0520LT1 or Find Alternatives
Looking for MBR0520LT1 or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.
Why Choose Onzuu as Your Distributor?
Onzuu provides B2B electronic component sourcing with global delivery, fast quote turnaround, and reliable stock for obsolete and hard-to-find parts like the MBR0520LT1. As your trusted distributor, Onzuu ensures high-quality components and flexible procurement solutions.
Frequently Asked Questions (FAQ)
Is MBR0520LT1 still available?
The MBR0520LT1 is marked as "Obsolete" by onsemi, but you may still find remaining inventory through authorized distributors like Onzuu, Digi-Key, or Mouser.
What are alternatives to MBR0520LT1?
Possible alternatives include similar Schottky diodes such as MBR0540, SS14, or BAT54. Always check voltage, current, and packaging before substitution.
Can I use MBR0520LT1 in fast-switching power circuits?
Yes, its fast recovery and low forward voltage drop make it suitable for high-speed switching applications like converters or LED drivers.
What does SOD-123 mean?
SOD-123 is a small outline diode package designed for surface mounting. It's ideal for compact PCBs with limited space.
Conclusion
The MBR0520LT1 is a compact, high-speed Schottky diode perfect for low voltage applications requiring fast switching and low losses. Although now obsolete, it remains a popular choice in legacy designs and can be sourced through trusted distributors. For long-term projects, evaluate alternatives and ensure compatibility in both electrical characteristics and footprint.
