AGN210A4HZ (In Stock:35924)
Signal Relays Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
AGN210A4HZ
189-AGN210A4HZ
Find AGN210A4HZ relay datasheet, specifications, features, price, stock, and trusted distributors. Explore replacements and application guide online.
AGN210A4HZ Description
AGN210A4HZ Relay Overview: Datasheet, Features, Specifications, Applications, & Price
Technical Specifications of AGN210A4HZ
| Parameter | Details |
|---|---|
| Manufacturer | Panasonic Electric Works |
| Series | AGN |
| Category | Signal Relays, Up to 2 Amps |
| Relay Type | Telecom |
| Coil Voltage | 4.5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 1A |
| Switching Voltage (Max) | 125VAC, 110VDC |
| Load - Max Switching | 125VA, 110W |
| Coil Type | Latching, Single Coil |
| Coil Current | 22.2 mA |
| Coil Resistance | 203 Ohms |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Must Operate Voltage | 3.38 VDC |
| Mounting Type | Surface Mount (Gull Wing) |
| Seal Rating | Sealed - Fully |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | BSI, cURus |
| Packaging | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |

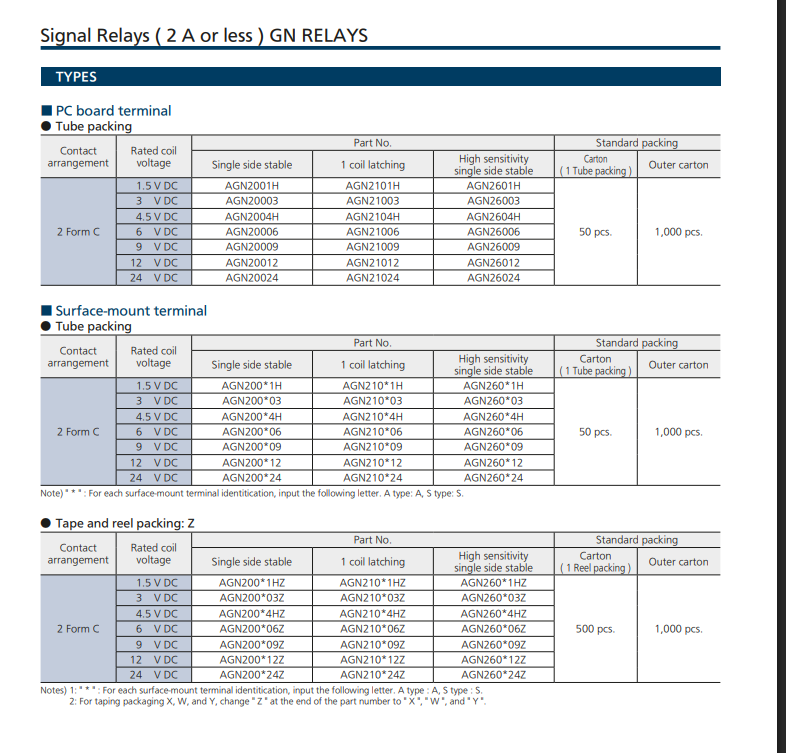

AGN210A4HZ Datasheet PDF
The AGN210A4HZ is a high-reliability telecom relay from Panasonic Electric Works, designed for precision applications requiring compact size and robust performance. Download the detailed datasheet below for electrical characteristics, mechanical dimensions, and pin configurations.
Key Features of AGN210A4HZ
- Low power latching type with single coil for energy-saving applications
- Compact surface mount package with gull wing terminals
- High contact reliability using AgPd + Au plated contacts
- Fully sealed construction for automatic washing
- Wide operating temperature range -40°C to +85°C
- Certified by BSI and cURus
AGN210A4HZ Application Guide
The AGN210A4HZ relay is suitable for:
- Telecom switching systems
- Industrial automation
- Measurement and control equipment
- Data communication devices
AGN210A4HZ Price & Stock
Get the latest AGN210A4HZ price and check stock from global trusted suppliers:
| Distributor | Price (USD) | Stock | Buy Now |
|---|---|---|---|
| Onzuu | $1.25 | In Stock | Buy AGN210A4HZ |
Trusted AGN210A4HZ Distributors
Purchase AGN210A4HZ from reliable distributors:
AGN210A4HZ Alternatives & Replacements
Recommended equivalent relays to replace AGN210A4HZ:
- Omron G6K-2F-DC4.5
- TE RT314F12
- Panasonic TX2SA-5V
AGN210A4HZ Frequently Asked Questions
Q: What is the contact configuration of AGN210A4HZ?
A: It uses a DPDT (2 Form C) contact configuration.
Q: Is AGN210A4HZ suitable for telecom applications?
A: Yes, it's specifically designed for telecom and data communication systems.
Q: What is the coil voltage and coil type?
A: The coil voltage is 4.5VDC, and it features a latching, single coil design.
Q: Where can I get the AGN210A4HZ datasheet?
A: The datasheet is available from the Panasonic official site and authorized distributors like Onzuu.
Technical specifications
| Switching Voltage | 125VAC, 110VDC - Max | |
| Coil Current | 22.2 mA | |
| Product Status | Active | |
| Relay Type | Telecom | |
| Operate Time | 4 ms | |
| REACH Status | REACH Unaffected | |
| Mfr | Panasonic Electric Works | |
| Contact Material | Silver Palladium (AgPd), Gold (Au) | |
| Release Time | 4 ms | |
| Must Operate Voltage | 3.38 VDC | |
| Features | - | |
| Coil Type | Latching, Single Coil | |
| RoHS Status | ROHS3 Compliant | |
| Operating Temperature | -40°C ~ 85°C | |
| Termination Style | Gull Wing | |
| Contact Rating (Current) | 1 A | |
| ECCN | EAR99 | |
| Mounting Type | Surface Mount | |
| Coil Resistance | 203 Ohms | |
| Must Release Voltage | - | |
| Seal Rating | Sealed - Fully | |
| Contact Form | DPDT (2 Form C) | |
| Coil Insulation | - | |
| Series | AGN | |
| Coil Voltage | 4.5VDC | |
| HTSUS | 8536.41.0020 | |
| Package | Tape & Reel (TR) | |
| Base Product Number | AGN210 |
