AQY217GS (In Stock:358)
Solid State Relays Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
AQY217GS
183-AQY217GS
Explore the complete overview of AQY217GS Solid State Relay: datasheet, specifications, pinout, applications, replacements, and reliable sourcing from Onzuu.
AQY217GS Description
AQY217GS Overview
The AQY217GS is a PhotoMOS™ solid state relay manufactured by Panasonic Electric Works. It is designed for switching both AC and DC loads with high reliability and no mechanical noise. As a member of the AQY Series, it is widely used in industrial and signal transmission applications where traditional mechanical relays may fall short.
📄 AQY217GS Datasheet
| Manufacturer | Panasonic Electric Works |
| Series | PhotoMOS™ AQY |
| Part Number | AQY217GS |
| Function | Solid State Relay, SPST-NO (1 Form A) |
| Input Type | DC (1.32VDC) |
| Output Type | AC, DC |
| Load Voltage | 0 ~ 200V |
| Load Current | 400 mA |
| On-State Resistance | 2.5 Ohms Max |
| Package | 4-SOP (0.173", 4.40mm) |
| Mounting Type | Surface Mount (Gull Wing) |
| Operating Temperature | -40°C to +85°C |
| Approvals | BSI, cURus |
Pinout & Package

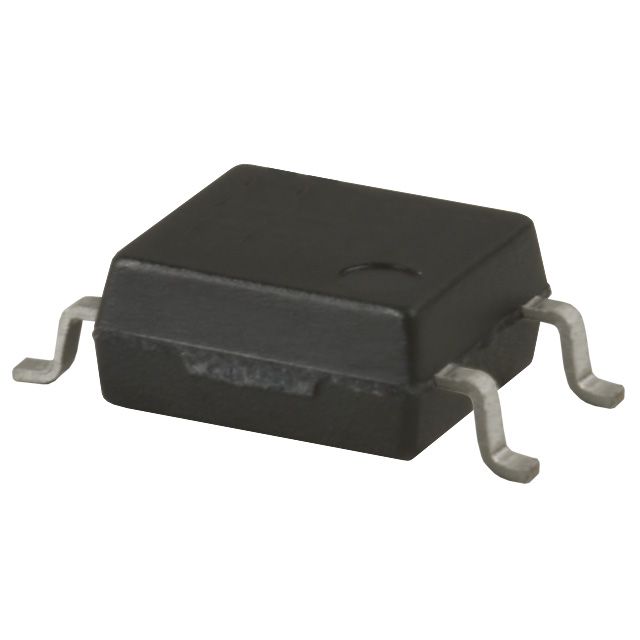

The AQY217GS is packaged in a compact 4-SOP case, designed for surface-mount technology (SMT). The gull wing termination style provides strong board adherence and easy soldering.
Typical Applications
- Security systems (e.g., signal switching)
- Measurement equipment
- Industrial automation (PLC I/O switching)
- Telecommunications
- Medical diagnostic systems
Replacement & Equivalent Models
If AQY217GS is unavailable, consider the following alternatives:
- AQY210GS – Lower voltage variant
- Panasonic AQY212GS – Similar specs with higher input threshold
- Omron G3VM-61G1 – Compatible SSR from Omron
Where to Buy AQY217GS
You can purchase original AQY217GS components from trusted industrial suppliers. Onzuu provides bulk availability, datasheet support, and competitive B2B pricing.
| Product | MOQ | Availability | Action |
|---|---|---|---|
| AQY217GS | 100 pcs | In Stock | Buy Now |
Onzuu is your reliable sourcing partner for electronic components including relays, sensors, ICs, and more. We support engineers, procurement teams, and OEMs with authentic parts and global delivery.
Technical specifications
| Load Current | 400 mA | |
| Output Type | AC, DC | |
| Termination Style | Gull Wing | |
| ECCN | EAR99 | |
| Circuit | SPST-NO (1 Form A) | |
| Voltage - Load | 0 V ~ 200 V | |
| Mounting Type | Surface Mount | |
| Product Status | Active | |
| Supplier Device Package | 4-SOP | |
| Series | PhotoMOSâ„¢ AQY | |
| Package / Case | 4-SOP (0.173", 4.40mm) | |
| On-State Resistance (Max) | 2.5 Ohms | |
| REACH Status | REACH Unaffected | |
| Mfr | Panasonic Electric Works | |
| HTSUS | 8536.41.0030 | |
| Package | Tube | |
| RoHS Status | ROHS3 Compliant | |
| Voltage - Input | 1.32VDC | |
| Base Product Number | AQY217 |
