JQ1-5V-F

Power Relays
Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
JQ1-5V-F
188-JQ1-5V-F
Discover the Panasonic JQ1-5V-F relay featuring a 5VDC coil, SPDT contact form, and 5A switching capacity. Ideal for general-purpose applications.

JQ1-5V-F Description

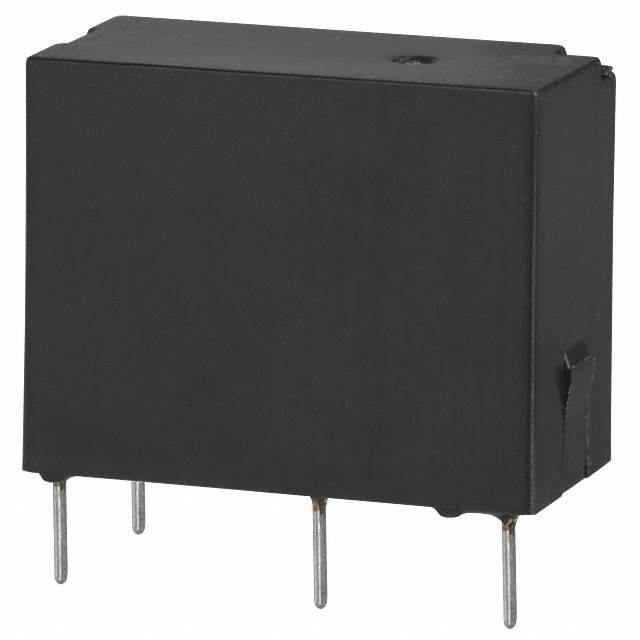

Panasonic JQ1-5V-F Relay Overview

The JQ1-5V-F from Panasonic Electric Works is a compact, general-purpose relay designed for switching high voltage loads. With a 5VDC coil and SPDT (1 Form C) contact form, it supports up to 5A current capacity. Note: This part is marked as obsolete.

JQ1-5V-F

✅ Datasheet Module

Click here to download the official JQ1-5V-F datasheet

✅ Features

  • 5VDC Coil Voltage
  • SPDT (1 Form C) Contact Form
  • 5A Contact Rating
  • High switching voltage: up to 250VAC / 110VDC
  • PC pin through-hole mounting
  • Class E coil insulation
  • Approval by CSA, TUV, UR, and VDE

✅ Specifications Table

Attribute Value
Manufacturer Panasonic Electric Works
Series JQ
Part Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating 5 A
Switching Voltage 250VAC, 110VDC (Max)
Max Switching Load 1250VA, 550W
Coil Current 80 mA
Coil Resistance 62.5 Ohms
Operate Time 20 ms
Release Time 10 ms
Operating Temp -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Type Non Latching
Termination Style PC Pin
Approval Agencies CSA, TUV, UR, VDE

✅ Application Scenarios

  • HVAC systems
  • Industrial automation
  • Power supplies
  • Consumer appliances
  • Relay driver circuits

🛒 Buy JQ1-5V-F or Find Alternatives

Looking for JQ1-5V-F or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.

📦 Request a Quote

✅ Onzuu Distributor Recommendation

Looking for reliable electronic component sourcing? Onzuu is your trusted B2B distributor for industrial-grade relays and more. Visit onzuu.com to explore a full range of components including obsolete and hard-to-find parts.

✅ Frequently Asked Questions (FAQ)

Is the JQ1-5V-F relay still in production?
No, it is listed as an obsolete part.
What is the maximum load it can switch?
Up to 1250VA or 550W.
Can I still source this relay?
Yes, it may be available through authorized distributors or surplus inventory providers.

✅ Conclusion

The Panasonic JQ1-5V-F relay offers robust switching capacity in a compact footprint, making it ideal for general-purpose applications. Though obsolete, it remains a dependable choice for legacy system designs and replacements.

Technical specifications

Switching Voltage250VAC, 110VDC - Max
Coil Current80 mA
Product StatusObsolete
Relay TypeGeneral Purpose
Operate Time20 ms
MfrPanasonic Electric Works
Contact MaterialSilver Tin Oxide (AgSnO)
Release Time10 ms
Must Operate Voltage3.75 VDC
Features-
Coil TypeNon Latching
RoHS StatusRoHS Compliant
Moisture Sensitivity Level (MSL)1 (Unlimited)
Operating Temperature-40°C ~ 70°C
Termination StylePC Pin
Contact Rating (Current)5 A
ECCNEAR99
Mounting TypeThrough Hole
Coil Resistance62.5 Ohms
Must Release Voltage0.25 VDC
Seal Rating-
Contact FormSPDT (1 Form C)
Coil InsulationClass E
SeriesJQ
Coil Voltage5VDC
HTSUS8536.41.0020
PackageBulk
Base Product NumberJQ1-5V
