STGAP2SICSN
Isolators - Gate Drivers Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:

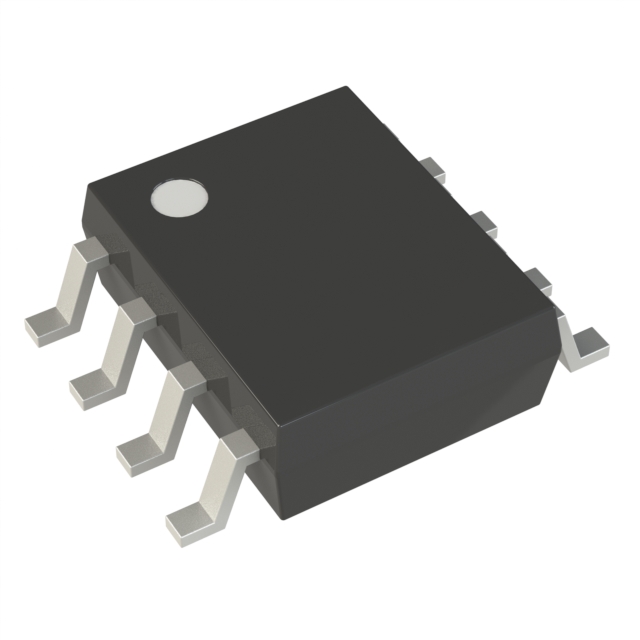

STGAP2SICSN
906-STGAP2SICSN
Explore STGAP2SICSN by STMicroelectronics: a high-isolation, full specs, datasheet, features, and distributor pricing from Onzuu.
STGAP2SICSN Description
STGAP2SICSN Isolated Gate Driver Overview
The STGAP2SICSN from STMicroelectronics is a single-channel high-performance isolated gate driver optimized for driving Silicon Carbide (SiC) MOSFETs. Leveraging capacitive coupling technology, it ensures robust isolation and excellent noise immunity, making it ideal for high-voltage, high-speed applications.
✅ Datasheet
Download the official datasheet for STGAP2SICSN: STGAP2SICSN Datasheet (PDF)
✅ Features
- Galvanic isolation up to 4000 Vrms
- High Common Mode Transient Immunity (CMTI): 100 V/ns
- Single-channel driver with 4A peak output current
- Fast propagation delay: 90ns max
- Pulse width distortion: max 20ns
- Output supply voltage range: 16.4V to 26V
- Rise/Fall time: typical 30ns
- UL certified
✅ Specifications
| Parameter | Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Part Status | Active |
| Technology | Capacitive Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 4000Vrms |
| CMTI (Min) | 100 V/ns |
| Propagation Delay | 90ns (tpLH / tpHL max) |
| Pulse Width Distortion | 20ns max |
| Rise / Fall Time | 30ns typ |
| Output Current | 4A High / Low |
| Peak Output Current | 4A |
| Output Supply Voltage | 16.4V ~ 26V |
| Operating Temp | -40°C to 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package | 8-SOIC (3.90mm width) |
| Supplier Package | 8-SO |
| Approval | UL |
| Base Product Number | STGAP2 |
✅ Application Scenarios
- Industrial motor drives
- Power converters and inverters
- High-voltage isolated power supply circuits
- Electric vehicle inverters
- Renewable energy systems
🛒 Buy STGAP2SICSN or Find Alternatives
Looking for STGAP2SICSN or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.
✅ Onzuu Authorized Distributor
Onzuu is your reliable distributor for STMicroelectronics components, offering competitive pricing, professional support, and global shipping. Explore our range of isolated gate drivers and other industrial-grade electronics at onzuu.com.
✅✅✅ Frequently Asked Questions (FAQ)
- Q: What is the isolation rating of STGAP2SICSN?
A: It provides galvanic isolation up to 4000Vrms. - Q: What kind of transistors can it drive?
A: It is optimized for Silicon Carbide (SiC) MOSFETs and other high-speed power transistors. - Q: What is the maximum output current?
A: The driver supports 4A peak output current.
✅ Summary
The STGAP2SICSN is a robust, efficient, and high-speed gate driver that delivers exceptional performance in demanding industrial and automotive applications. With its high CMTI, strong isolation, and wide output voltage range, it stands out as a reliable solution for next-gen power designs.
Technical specifications
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Rise / Fall Time (Typ) | 30ns, 30ns | |
| Common Mode Transient Immunity (Min) | 100V/ns | |
| Voltage - Isolation | 4000Vrms | |
| Approval Agency | UL | |
| Mounting Type | Surface Mount | |
| Current - Peak Output | 4A | |
| Product Status | Active | |
| Supplier Device Package | 8-SO | |
| Pulse Width Distortion (Max) | 20ns | |
| Series | - | |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | |
| Number of Channels | 1 | |
| Technology | Capacitive Coupling | |
| REACH Status | REACH Unaffected | |
| Voltage - Output Supply | 16.4V ~ 26V | |
| Mfr | STMicroelectronics | |
| Voltage - Forward (Vf) (Typ) | - | |
| Package | Bulk | |
| Propagation Delay tpLH / tpHL (Max) | 90ns, 90ns | |
| RoHS Status | ROHS3 Compliant | |
| Base Product Number | STGAP2 | |
| Current - Output High, Low | 4A, 4A |
