ISO7760DW
901-ISO7760DW
Explore the ISO7760 6-channel digital isolator by Texas Instruments, offering 100Mbps data rate, 5000Vrms isolation, and wide temperature range. Ideal for general-purpose unidirectional signal isolation.
ISO7760DW Description
ISO7760DW – High-Performance 6-Channel Digital Isolator (5000Vrms)
Explore the full technical breakdown, datasheet highlights, application insights, and distributor resources for ISO7760DW – a unidirectional, 6-channel digital isolator from Texas Instruments, ideal for high-speed, high-reliability industrial and communication systems.
➤ Overview ➤ Key Features ➤ Applications ➤ Pinout & Package ➤ Datasheet & Download ➤ Where to Buy ➤ Alternatives
📌 ISO7760DW Overview
ISO7760DW belongs to the ISO776x series of digital isolators by Texas Instruments. With six unidirectional channels and a 5000Vrms isolation rating, it is ideal for high-speed digital signal isolation in harsh industrial environments. It features capacitive coupling isolation technology for superior transient immunity and timing performance.
🔍 Key Features & Technical Specs
| Parameter | Value |
|---|---|
| Manufacturer | Texas Instruments |
| Series | ISO776x |
| Technology | Capacitive Coupling |
| Number of Channels | 6 |
| Channel Direction | Unidirectional (6/0) |
| Isolation Voltage | 5000Vrms |
| CM Transient Immunity | 85kV/μs |
| Data Rate | 100Mbps |
| Propagation Delay | 16ns (Max) |
| Pulse Width Distortion | 4.9ns (Max) |
| Rise/Fall Time | 1.1ns / 1.4ns (Typ) |
| Supply Voltage | 2.25V to 5.5V |
| Operating Temperature | -55°C to +125°C |
| Mounting Type | Surface Mount |
| Package | SOIC-16 (7.5mm width) |
⚙️ Common Applications
- Industrial Automation & Control
- Digital Communication Isolation (CAN, SPI, RS-485)
- High-Speed Signal Isolation
- Power Supply Monitoring
- Medical and Instrumentation Systems
📦 Pinout & Package

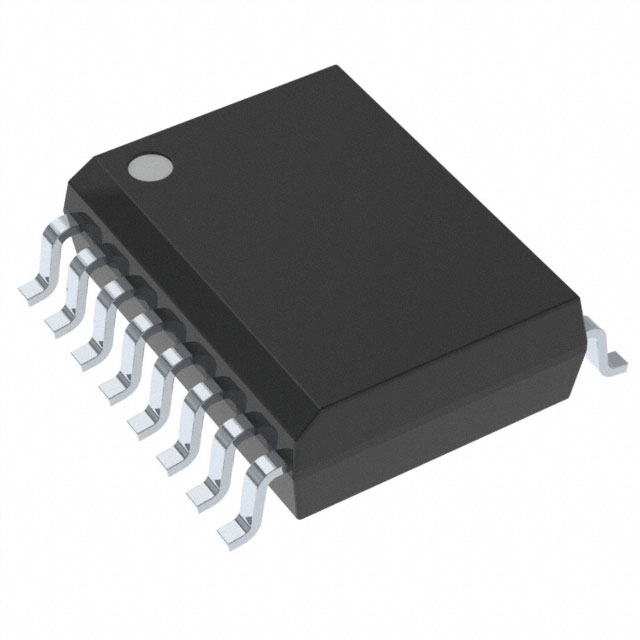

The ISO7760DW comes in a wide-body SOIC-16 package, providing ample spacing for isolation and thermal performance.
Note: Image is representative. Refer to datasheet for official pin configuration.
📄 Datasheet & Technical Documents
- Download ISO7760DW Datasheet (PDF)
- Texas Instruments Official Product Page
- Authorized Distributors – Onzuu Electronics
💰 Where to Buy ISO7760DW
Looking to buy ISO7760DW for your next design? Onzuu is a global electronic components distributor offering:
- ✅ Factory-Original Parts
- ✅ Global Logistics Support
- ✅ Bulk Procurement & B2B Deals
🔁 Alternative & Related Models
- ISO7762DW – 6-channel, 4/2 direction, same isolation level
- ISO6740 – Lower-cost 4-channel alternative
- ISO6740DWR (Silicon Labs) – Competitive digital isolator
- ISO6740FQDWRQ1 (Analog Devices) – Similar 4-channel alternative
🔚 Conclusion
The ISO7760DW is a robust, high-speed digital isolator perfect for demanding environments requiring high transient immunity and data integrity. With wide industry support and global availability, it's a go-to solution for engineers in power, automation, and medical fields.
Technical specifications
| Inputs - Side 1/Side 2 | 6/0 | |
| Rise / Fall Time (Typ) | 1.1ns, 1.4ns | |
| Common Mode Transient Immunity (Min) | 85kV/µs | |
| Product Status | Active | |
| Supplier Device Package | 16-SOIC | |
| Pulse Width Distortion (Max) | 4.9ns | |
| Isolated Power | No | |
| Data Rate | 100Mbps | |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) | |
| Number of Channels | 6 | |
| Technology | Capacitive Coupling | |
| Voltage - Supply | 2.25V ~ 5.5V | |
| REACH Status | REACH Unaffected | |
| Mfr | Texas Instruments | |
| Channel Type | Unidirectional | |
| Propagation Delay tpLH / tpHL (Max) | 16ns, 16ns | |
| RoHS Status | ROHS3 Compliant | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage - Isolation | 5000Vrms | |
| ECCN | EAR99 | |
| Mounting Type | Surface Mount | |
| Series | ISO776x | |
| Type | General Purpose | |
| HTSUS | 8542.39.0001 | |
| Package | Tube | |
| Base Product Number | ISO7760 |
