📘 Introduction
While most electronic engineers are familiar with standard resistors, not everyone understands the difference between digital resistors and analog resistors. This article explains what makes each type unique, when to use them, and how they fit into modern circuit designs.
🔧 What Are Analog Resistors?
Analog resistors are the traditional, passive two-terminal components used to oppose electrical current. These include fixed resistors, variable resistors (like potentiometers), and thermistors. They offer a continuous range of resistance and are purely hardware-controlled.
- Examples: Carbon film, metal oxide, wire-wound resistors
- Control Method: Manual or circuit-driven, no digital interface
- Precision: Dependent on tolerance and material stability

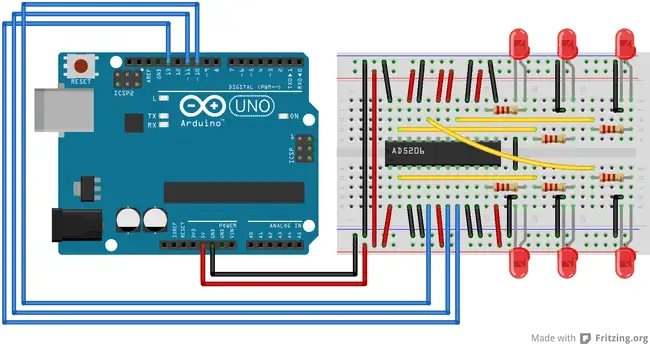

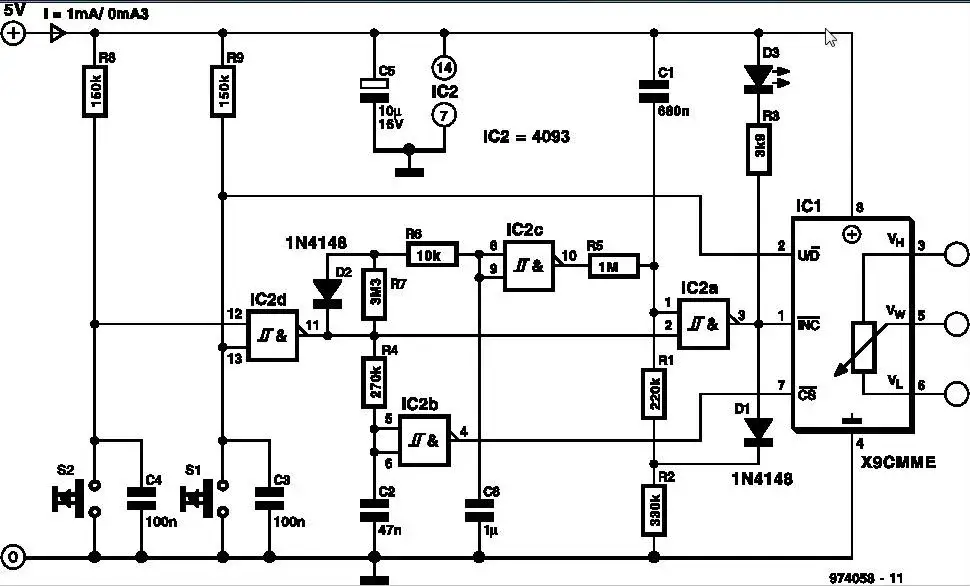

💻 What Are Digital Resistors?
Digital resistors, also called digitally controlled potentiometers (DCPs), allow resistance values to be adjusted electronically via digital signals. They are often based on EEPROM or SRAM architectures and can be controlled using I²C or SPI interfaces.
- Examples: DS1803, AD5260, MCP4131
- Control Method: Microcontroller or software-controlled
- Typical Use: Volume control, calibration, digitally-adjustable gain
🔍 Digital vs Analog Resistors: Key Differences
| Feature | Analog Resistor | Digital Resistor |
|---|---|---|
| Control | Manual / Fixed | Digital via I²C/SPI |
| Precision | Set by manufacturing tolerance | Highly tunable with step resolution |
| Adjustment | Fixed or variable (manual) | Remotely programmable |
| Cost | Very low | Higher due to IC structure |
| Size | Compact SMD or through-hole | IC chip package |
🔌 Application Scenarios
- Analog Resistors: Power regulation, pull-up/pull-down resistors, LED current limiting
- Digital Resistors: Programmable gain amplifiers, calibration settings, user-controlled systems
✅ Which One Should You Choose?
If you're building a simple circuit where cost and simplicity matter, analog resistors are ideal. For embedded systems requiring real-time tuning, calibration, or remote control, digital resistors provide unmatched flexibility.
❓ FAQ
Q: Can I replace an analog resistor with a digital one?
Only if your circuit supports digital control protocols and you need tunability.
Q: Are digital resistors accurate?
Yes. Most digital resistors have step resolutions like 64 or 256 taps, with tolerances within ±1%.
Q: Do digital resistors require programming?
Yes. You need a microcontroller or digital interface to set resistance values via I²C or SPI.
