Hall Effect Crankshaft Position Sensor
Everything You Need to Know About Hall Effect Sensors for Engine Timing
What Is a Hall Effect Crankshaft Position Sensor?
A Hall Effect crankshaft position sensor is an electronic device used to monitor the position or rotational speed of the crankshaft. It plays a vital role in engine management systems by sending signals to the engine control unit (ECU) for proper fuel injection and ignition timing.
How Does It Work?

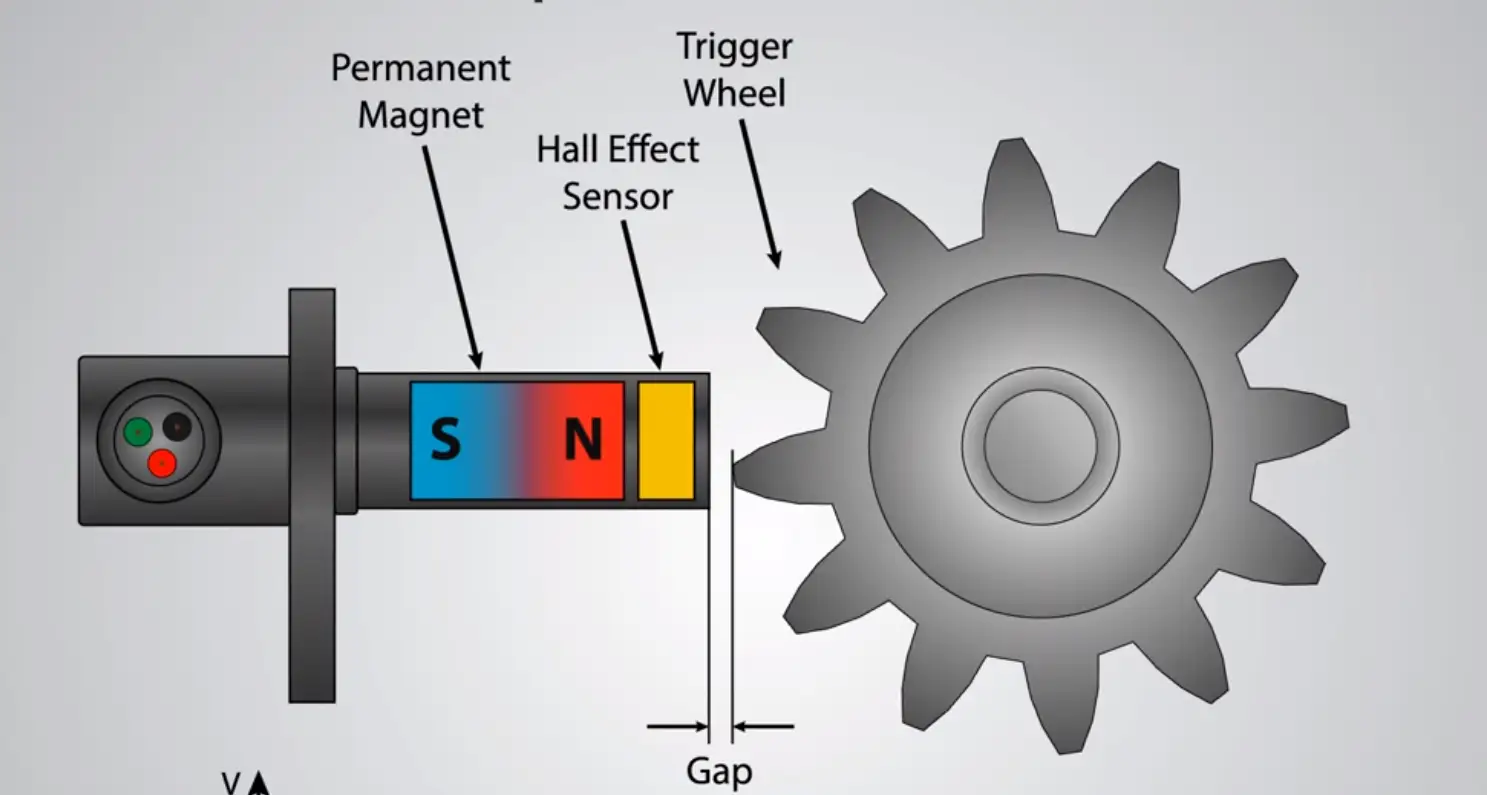

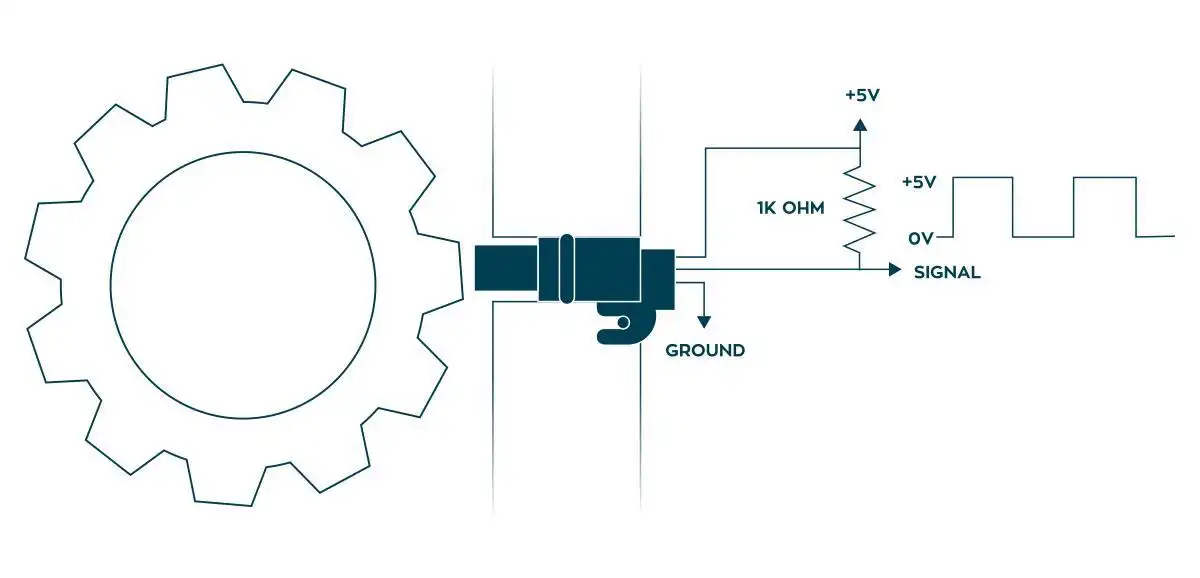

The sensor detects changes in the magnetic field generated by a toothed wheel (reluctor) attached to the crankshaft. As the teeth pass by the sensor, they cause fluctuations in the magnetic field, which the Hall element converts into electrical signals. These signals are then processed by the ECU to determine crankshaft position and speed.
Key Benefits of Hall Effect Crankshaft Sensors
- High accuracy in position and speed detection
- Unaffected by dust, oil, or temperature changes
- Long-lasting and durable
- Suitable for high-speed engine applications
Common Applications
These sensors are widely used in modern automotive engines, motorcycles, marine engines, and small engine systems. They are often used alongside camshaft position sensors to offer complete engine timing data.
How to Test a Hall Effect Crankshaft Sensor
Testing typically involves checking the sensor’s voltage output while the engine is cranking. A digital multimeter and an oscilloscope can both be used to measure output signals. For step-by-step testing, see our Hall Effect Sensor Testing Guide.
