Speed Hall effect sensors are widely used for detecting rotational speed (RPM), wheel speed, and shaft position in automotive, industrial, and robotic systems. These sensors offer reliable and contactless measurement, making them ideal for high-speed, high-durability environments.
Applications of Speed Hall Effect Sensors
- Automotive wheel speed detection (hall effect wheel speed sensor)
- Electric motor RPM monitoring (hall effect rpm sensor)

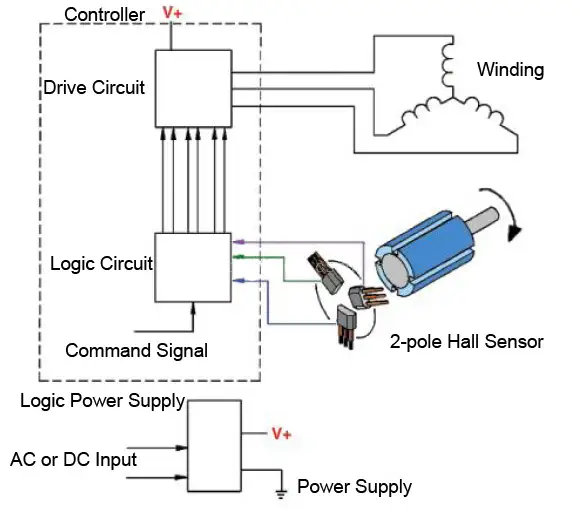

- Rotational speed feedback in BLDC motors (hall effect rotational speed sensor)
- Industrial conveyor belt speed measurement
- Robotic joint movement sensing

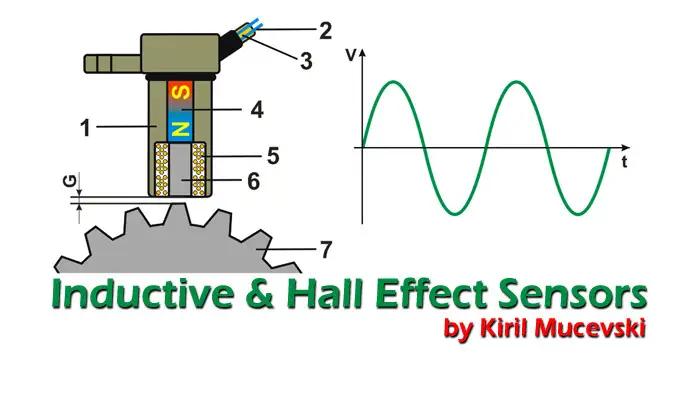

How a Hall Effect Sensor Detects Speed
A speed Hall effect sensor detects changes in magnetic fields as a magnetized rotor spins past it. Each pulse corresponds to a change in position, which can be converted into rotational speed using microcontroller logic.

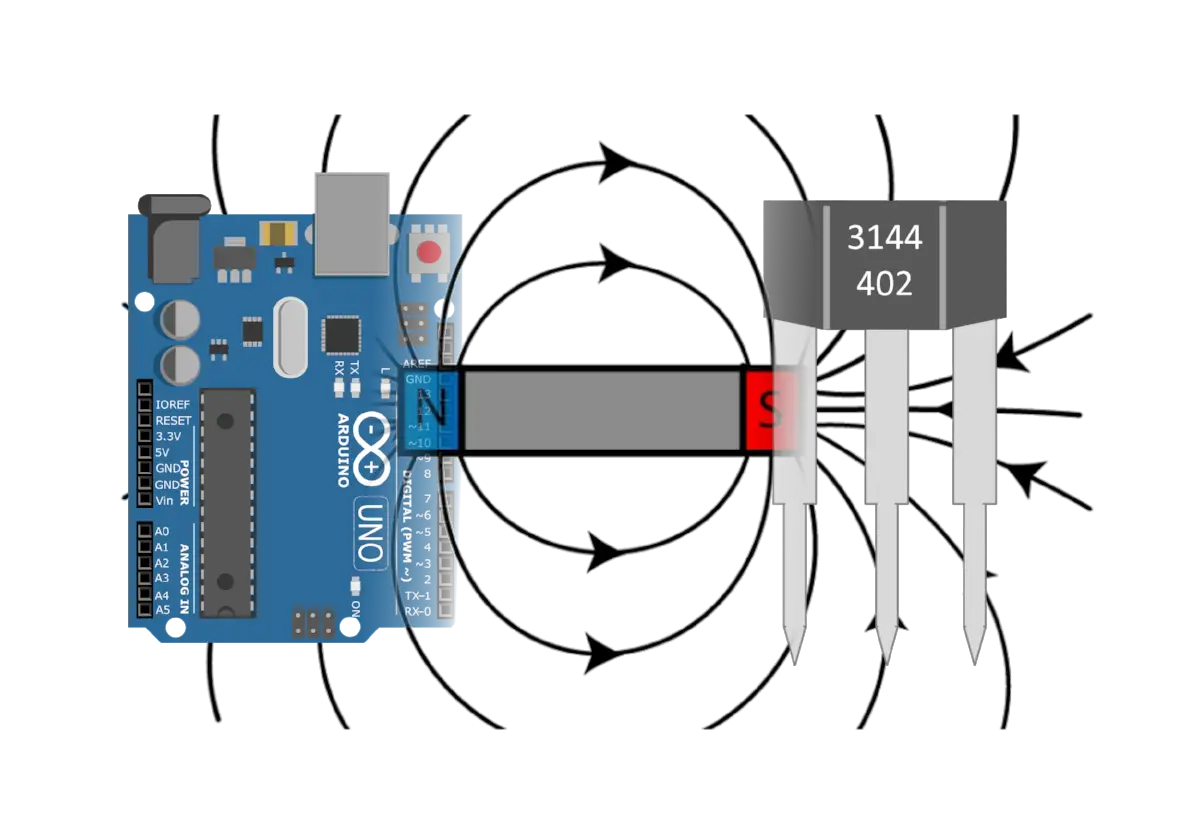

Figure: Hall effect rpm sensor working principle
Types of Hall Effect Speed Sensors
- Analog hall effect rpm sensors – Output continuous voltage signals
- Digital hall effect speed sensors – Output high/low pulses
- 3-wire and 2-wire speed sensors – Flexible wiring for various control systems
Related Articles
Recommended Products
BLDC Motor Hall Speed Sensor
Optimized for brushless motors, this sensor enables precise speed control.
Frequently Asked Questions
What is a hall effect speed sensor?
A Hall effect speed sensor detects the rotational speed of a shaft or wheel by converting magnetic pulses into electrical signals.
How accurate are Hall effect RPM sensors?
Hall sensors provide highly accurate and reliable RPM readings, especially at high speeds.
What's the difference between analog and digital Hall speed sensors?
Analog sensors output varying voltages based on field strength, while digital ones produce on/off signals per pulse.
