What is an integrated circuit?
An integrated circuit (IC) is a tiny semiconductor chip containing thousands to millions of electronic components such as transistors, resistors, and capacitors integrated onto a single piece of silicon. These circuits perform a range of electronic functions including signal amplification, data processing, and memory storage.
Fig: Intel 4004 – one of the first commercial microprocessors
What is an integrated circuit chip?

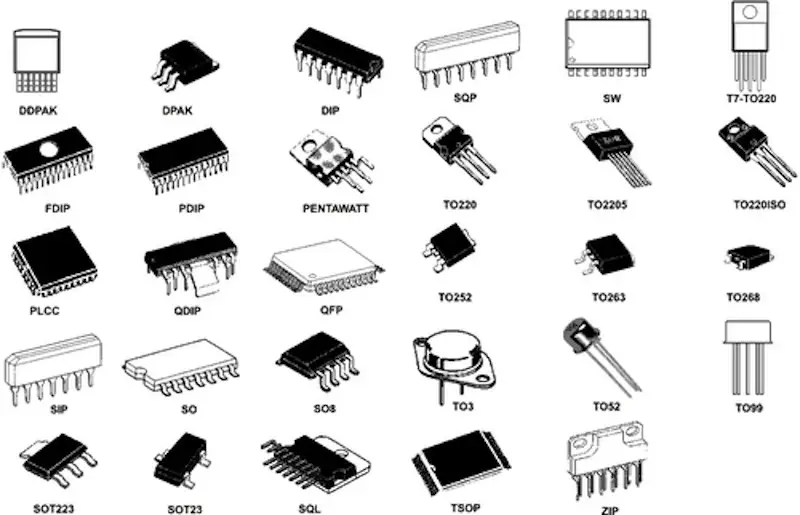

An integrated circuit chip refers to the physical form of an IC – a small rectangular piece of silicon encased in plastic or ceramic packaging with metallic pins. These pins connect the chip to the rest of the circuit board, enabling it to communicate and control other electronic components.
How is a microprocessor different from an integrated circuit?
A microprocessor is a type of integrated circuit specifically designed to perform logical and arithmetic operations and act as the brain of a computing system. In contrast, the term “integrated circuit” is a general term that can refer to any IC including memory, amplifiers, timers, etc. All microprocessors are ICs, but not all ICs are microprocessors.
What is application specific integrated circuit?

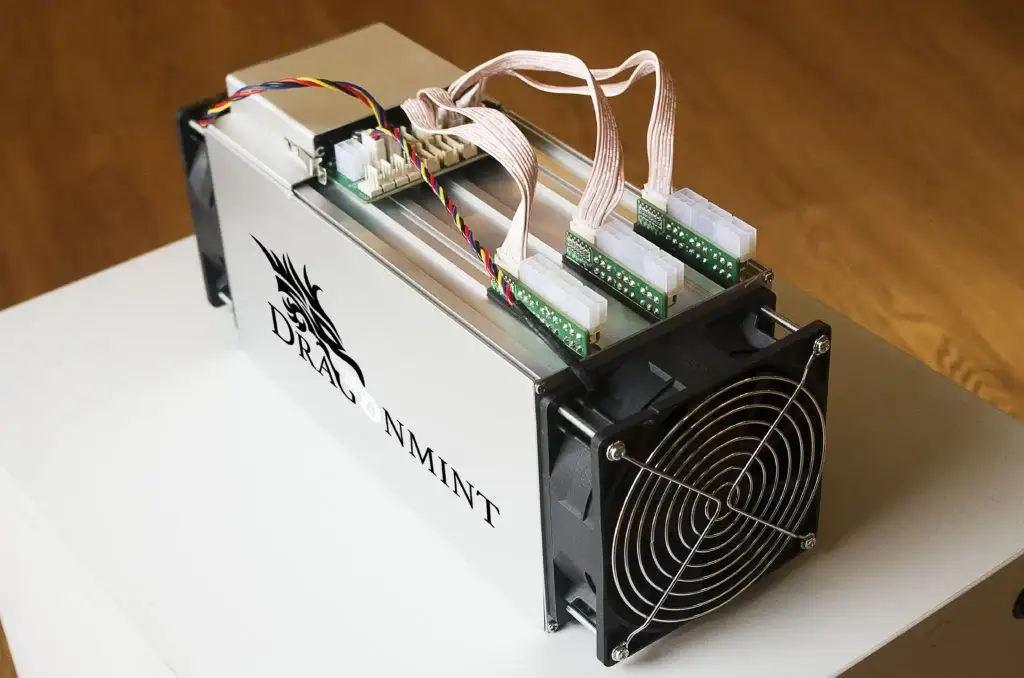

An Application Specific Integrated Circuit (ASIC) is a customized IC designed for a specific application rather than general-purpose use. Commonly found in devices like Bitcoin miners, smartphones, and audio processors, ASICs offer high efficiency and performance for targeted tasks.
Who invented the integrated circuit?
The invention of the IC is credited to Jack Kilby (Texas Instruments) and Robert Noyce (Fairchild Semiconductor) in the late 1950s. Kilby’s version used germanium while Noyce’s design used silicon, setting the standard for modern IC manufacturing.
Who invented the integrated circuit chip?
While Jack Kilby created the concept, Robert Noyce developed the practical silicon-based IC chip with planar technology, which is still the basis of IC fabrication today.

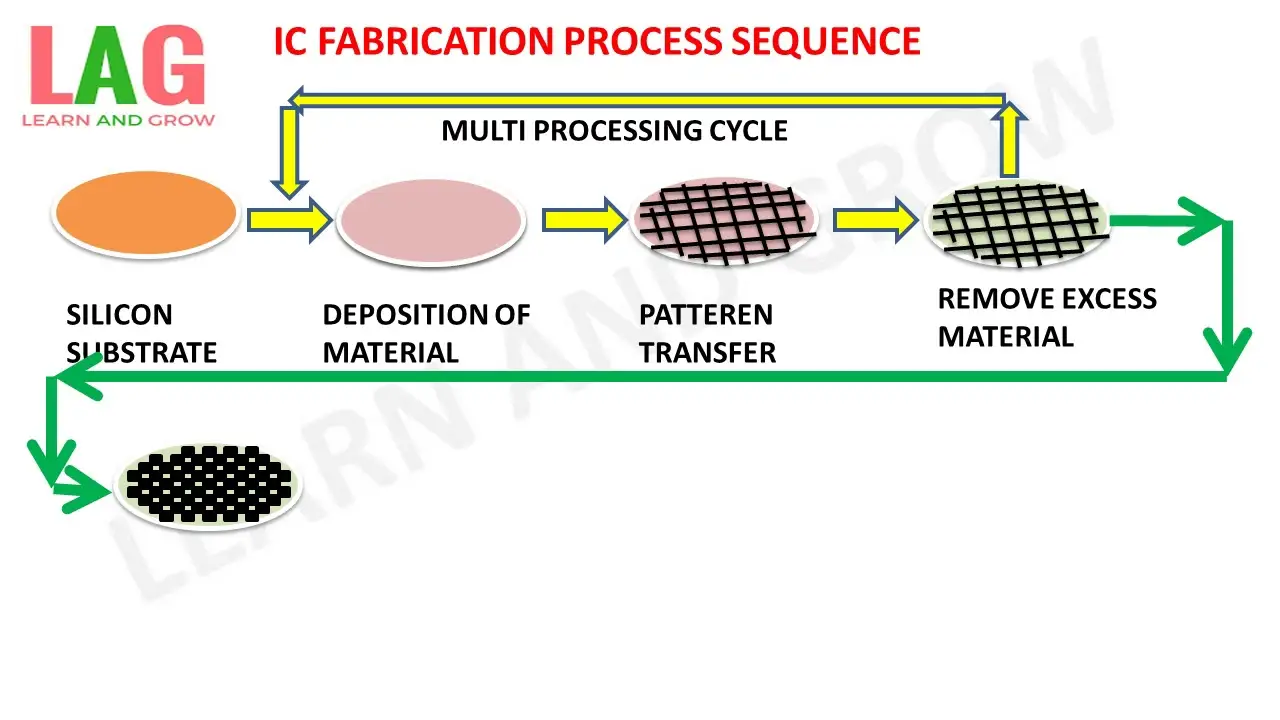

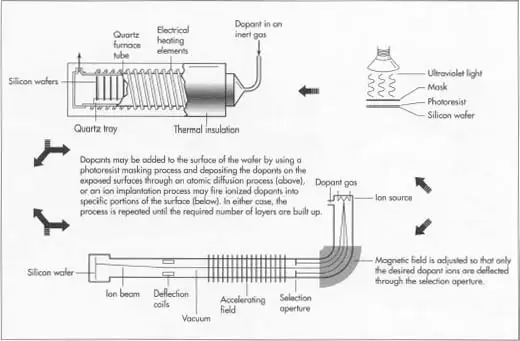

How are integrated circuits manufactured?
IC manufacturing involves multiple steps: wafer production, photolithography, doping, etching, metal deposition, and packaging. This high-precision process is conducted in clean rooms using photomasks and nanometer-scale equipment.
What does an integrated circuit do?
An integrated circuit processes, amplifies, or stores electrical signals. It can perform tasks such as computation (CPU), memory storage (RAM), amplification (op-amps), or timing (timers), depending on its design.
How do integrated circuits work?
ICs work by allowing electric current to flow through miniaturized electronic components etched into a silicon substrate. Transistors act as switches that control signal paths, enabling computation, signal processing, or logical decisions.
How does the integrated circuit work?
The functioning of an IC depends on its type. For example, a digital IC manipulates binary data (0s and 1s), while an analog IC amplifies signals. They all work through the control of electrical currents via miniaturized transistors and interconnections.
How integrated circuits are made?
ICs are made on wafers of pure silicon, patterned using photolithography and layered with various materials. The process includes etching circuits, adding dopants, and creating metal pathways. The final chips are diced, tested, and packaged.
What does integrated circuit do?
This question overlaps with Q8. To summarize: ICs can perform a wide variety of functions depending on their design. Examples include handling logic operations (logic gates), data processing (CPUs), or power control (voltage regulators).
When was the integrated circuit invented?
The IC was independently invented by Jack Kilby in 1958 and Robert Noyce in 1959. Their inventions revolutionized electronics, enabling the miniaturization of devices from computers to smartphones.
Integrated Circuits
Integrated circuits combine a large number of transistors and other elementary electronic components in miniaturized form into a single physical device, that is designed for a specific purpose or function and characterized by its performance of that function rather than by the behavior of its component pieces. Examples include microcontrollers, battery monitors and charge controllers, analog to digital converters, operational amplifiers, logic gates, voltage regulators, gate drivers, motro controllers, and others.
