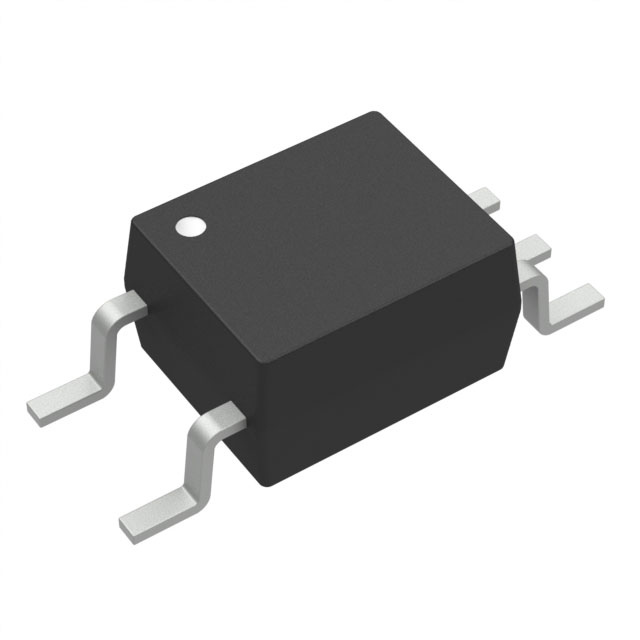

ACPL-M43T-000E (In Stock:2118)
Transistor, Photovoltaic Output Optoisolators Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
ACPL-M43T-000E
903-ACPL-M43T-000E
Discover the ACPL-M43T-000E optocoupler with transistor output and 4000Vrms isolation. Explore full datasheet, electrical specs, automotive certification (AEC-Q100), and where to buy.
ACPL-M43T-000E Description
π Overview π Datasheet β¨ Features π Specifications π§ Applications π Where to Buy π’ Onzuu Distributor β FAQ β
Conclusion
π Product Overview: ACPL-M43T-000E
The ACPL-M43T-000E is a high-reliability optocoupler from Broadcom, designed for automotive and industrial applications. Featuring a transistor output, 4000Vrms isolation voltage, and AEC-Q100 qualification, it’s ideal for signal isolation, level shifting, and interfacing with microcontrollers in harsh environments.
π Official Datasheet
Download the official datasheet for complete electrical and mechanical specifications:
β¨ Key Features
- 4000Vrms isolation voltage
- Phototransistor output
- High speed: 150ns turn-on, 500ns turn-off (typical)
- CTR range: 32% to 100%
- Operating temperature: -40°C to +125°C
- 5-pin surface mount SOIC package
- AEC-Q100 qualified for automotive applications
π Electrical & Mechanical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Broadcom |
| Product Series | R²Coupler™ |
| Channels | 1 |
| Isolation Voltage | 4000Vrms |
| CTR (Current Transfer Ratio) | 32% – 100% @ 10mA |
| Turn-on Time | 150ns |
| Turn-off Time | 500ns |
| Input Type | DC LED |
| Output Type | Transistor |
| Max Output Voltage | 20V |
| Max Output Current | 8mA |
| Forward Voltage | 1.55V (typical) |
| Forward Current | 20mA max |
| Temperature Range | -40°C to +125°C |
| Mounting | Surface Mount |
| Package | 5-SOIC (0.173", 4.40mm width) |
π§ Typical Applications
- Automotive systems (e.g., battery management, inverters)
- Industrial motor drives
- Switch-mode power supplies (SMPS)
- Microcontroller interfacing
- Programmable Logic Controllers (PLC)
π Buy ACPL-M43T-000E or Find Alternatives
Looking for ACPL-M43T-000E or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.
π’ Onzuu - Your Trusted B2B Component Distributor
Onzuu offers bulk purchasing and global supply chain solutions for electronic components including the ACPL-M43T-000E. We support engineering samples, bulk procurement, and scheduled shipments for OEM and industrial clients. Contact us for competitive pricing and technical support.
β Frequently Asked Questions (FAQ)
- Q: What output type does the ACPL-M43T-000E use?
- A: It uses a phototransistor output, ideal for digital logic isolation.
- Q: Is this optocoupler automotive qualified?
- A: Yes, it is AEC-Q100 qualified, meeting automotive-grade reliability standards.
- Q: What is the isolation voltage?
- A: The device provides 4000Vrms isolation, suitable for high-voltage environments.
- Q: What packaging is available?
- A: It comes in a 5-pin SOIC surface-mount package (4.4mm wide body).
β Conclusion
The ACPL-M43T-000E is a compact, robust, and automotive-grade optocoupler ideal for signal isolation in high-reliability environments. With excellent timing characteristics, wide temperature tolerance, and strong regulatory compliance, it serves as a versatile component for automotive, industrial, and power supply designs.
Technical specifications
| Current Transfer Ratio (Max) | 100% @ 10mA | |
| Rise / Fall Time (Typ) | - | |
| Output Type | Transistor | |
| Product Status | Active | |
| Supplier Device Package | 5-SO | |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads | |
| Number of Channels | 1 | |
| Current Transfer Ratio (Min) | 32% @ 10mA | |
| REACH Status | REACH Unaffected | |
| Mfr | Broadcom Limited | |
| Voltage - Forward (Vf) (Typ) | 1.55V | |
| RoHS Status | ROHS3 Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Operating Temperature | -40Β°C ~ 125Β°C | |
| Input Type | DC | |
| Voltage - Isolation | 4000Vrms | |
| ECCN | EAR99 | |
| Grade | Automotive | |
| Mounting Type | Surface Mount | |
| Voltage - Output (Max) | 20V | |
| Series | RΒ²Couplerβ’ | |
| Qualification | AEC-Q100 | |
| HTSUS | 8541.49.8000 | |
| Package | Tube | |
| Vce Saturation (Max) | - | |
| Current - Output / Channel | 8mA | |
| Turn On / Turn Off Time (Typ) | 150ns, 500ns | |
| Current - DC Forward (If) (Max) | 20 mA | |
| Base Product Number | ACPL-M43 |
