DMN601VK-7 (In Stock:864)
FET, MOSFET Arrays Manufacturer:
Mfr. Part #:
onzuu Part #:
Datasheet:
Description:
DMN601VK-7
289-DMN601VK-7
Explore DMN601VK-7 and DMN601 series, a compact dual N-channel MOSFET with 60V Vdss, 305mA Id, and logic-level gate drive.Purchase from trusted distributors like Onzuu.
5+:$0.16451
50+:$0.13437
150+:$0.11078
500+:$0.10800
DMN601VK-7 Description
β
Product Overview π Datasheet β Features π Specs π Applications π Buy Now π’ Onzuu Distributor β FAQ π§Ύ Summary
β Product Overview: DMN601VK-7 Dual N-Channel MOSFET

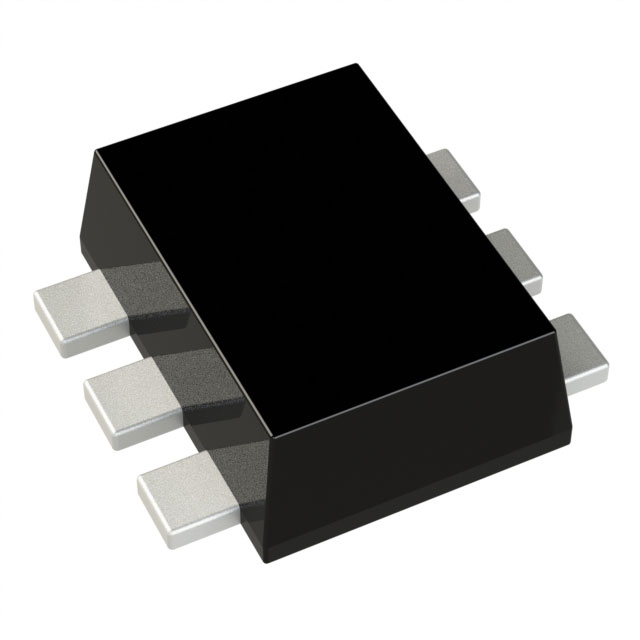

The DMN601VK-7 is a dual N-Channel MOSFET from Diodes Incorporated, designed for low-voltage switching applications. This compact surface-mount transistor, housed in a space-efficient SOT-563 package, offers a logic-level gate drive and excellent switching characteristics. It belongs to the broader DMN601 series, which includes five variants optimized for various configurations and needs.
π Datasheet
Download the official datasheet for DMN601VK-7 to view full specifications and electrical characteristics.
β Features
- Dual N-Channel Configuration
- Logic Level Gate Drive
- Low RDS(on): 2 Ohms @ 10V
- High Voltage Tolerance: 60V Drain-Source
- Compact SOT-563 Package
- Surface Mount Design
- Operating Temperature: -65°C to 150°C
π Electrical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Part Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | Dual N-Channel |
| Drain-Source Voltage (VDSS) | 60V |
| Continuous Drain Current (ID) @ 25°C | 305mA |
| RDS(on) Max | 2Ω @ 500mA, 10V |
| Gate Threshold Voltage (VGS(th)) | 2.5V @ 250µA |
| Input Capacitance (Ciss) | 50pF @ 25V |
| Power Dissipation | 250mW |
| Mounting Type | Surface Mount |
| Package | SOT-563 (SOT-666) |
π Application Scenarios
- Load switching in portable electronics
- Power management in embedded systems
- Battery-powered devices
- Level shifting and logic interfacing
- Consumer electronics miniaturized PCBs
DMN601 Series
| Parameter | DMN601DWKQ-7 | DMN601VK-7 | DMN601DWK-7 | DMN601DMK-7 | DMN601VKQ-7 |
|---|---|---|---|---|---|
| Mfr Part # | DMN601DWKQ-7 | DMN601VK-7 | DMN601DWK-7 | DMN601DMK-7 | DMN601VKQ-7 |
| Quantity Available | 51,794 | 48,474 (951K Factory) | 467,984 | 35,863 (66K Factory) | 2,279 (192K Factory) |
| Price (1 pc) | $0.290 | $0.370 | $0.630 | $0.680 | $0.410 |
| Price (3,000 pcs) | $0.06528 | $0.06941 | $0.11560 | $0.15373 | $0.08614 |
| Product Status | Active | Active | Active | Active | Active |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | - | Logic Level Gate | Logic Level Gate | Logic Level Gate | - |
| Vdss (Max) | 60V | 60V | 60V | 60V | 60V |
| Id @ 25°C | 305mA | 305mA | 305mA | 510mA | 305mA |
| RDS(on) Max | 2Ω @ 500mA, 10V | 2Ω @ 500mA, 10V | 2Ω @ 500mA, 10V | 2.4Ω @ 200mA, 10V | 2Ω @ 500mA, 10V |
| VGS(th) Max | 2.5V @ 1mA | 2.5V @ 250μA | 2.5V @ 1mA | 2.5V @ 1mA | 2.5V @ 250μA |
| Gate Charge (Qg) | 0.304nC @ 4.5V | - | - | 0.304nC @ 4.5V | - |
| Ciss Max | 50pF @ 25V | 50pF @ 25V | 50pF @ 25V | 50pF @ 25V | 50pF @ 25V |
| Power - Max | 200mW | 250mW | 200mW | 700mW | 250mW |
| Operating Temp | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -55°C ~ 150°C | -65°C ~ 150°C |
| Grade | Automotive | - | - | - | - |
| Qualification | AEC-Q101 | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | SOT-563, SOT-666 | 6-TSSOP, SC-88, SOT-363 | SOT-23-6 | SOT-563, SOT-666 |
| Supplier Device Package | SOT-363 | SOT-563 | SOT-363 | SOT-26 | SOT-563 |
π Buy DMN601 Series or Find Alternatives
Looking for DMN601VK-7 or equivalent parts? Contact Onzuu, your trusted electronic component distributor. We offer sourcing, BOM services, and global delivery.
π’ Onzuu – Trusted Distributor of DMN601 Series
Onzuu is a professional distributor of electronic components, offering authentic, traceable, and competitively priced MOSFETs including the DMN601 series. Benefit from:
- Bulk and small-batch orders
- Efficient global shipping
- Responsive support for engineers and buyers
β β β Frequently Asked Questions (FAQ)
Q1: Is DMN601VK-7 suitable for battery-powered projects?
Yes, it supports low gate threshold voltages and logic-level drive, making it ideal for low-power applications.
Q2: What is the difference between DMN601VK-7 and other DMN601 variants?
The DMN601 series includes multiple models with variations in packaging and configuration. DMN601VK-7 is notable for its dual N-channel design in a SOT-563 footprint.
Q3: Is the DMN601VK-7 RoHS compliant?
Yes, most modern batches are RoHS compliant. Check datasheet or distributor compliance info for confirmation.
Q4: Can I use this in high-frequency switching?
Yes, but note the limited power handling and absence of detailed Qg data. It's more suitable for moderate-speed logic-level switching.
π§Ύ Summary
The DMN601VK-7 is a compact and efficient dual N-channel MOSFET designed for modern low-power and space-constrained applications. With its logic-level gate drive, 60V VDSS, and compact SOT-563 package, it's an excellent solution for switching and power control in embedded systems and consumer electronics. Whether you're prototyping or purchasing in volume, this device delivers reliable performance with broad application flexibility.
Technical specifications
| Operating Temperature | -65Β°C ~ 150Β°C (TJ) | |
| FET Feature | Logic Level Gate | |
| Configuration | 2 N-Channel (Dual) | |
| Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 25V | |
| Gate Charge (Qg) (Max) @ Vgs | - | |
| ECCN | EAR99 | |
| Mounting Type | Surface Mount | |
| Product Status | Active | |
| Rds On (Max) @ Id, Vgs | 2Ohm @ 500mA, 10V | |
| Vgs(th) (Max) @ Id | 2.5V @ 250Β΅A | |
| Supplier Device Package | SOT-563 | |
| Drain to Source Voltage (Vdss) | 60V | |
| Series | - | |
| Package / Case | SOT-563, SOT-666 | |
| Technology | MOSFET (Metal Oxide) | |
| Power - Max | 250mW | |
| REACH Status | REACH Unaffected | |
| Mfr | Diodes Incorporated | |
| Current - Continuous Drain (Id) @ 25Β°C | 305mA | |
| HTSUS | 8541.21.0095 | |
| Package | Tape & Reel (TR) | |
| RoHS Status | ROHS3 Compliant | |
| Base Product Number | DMN601 | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
