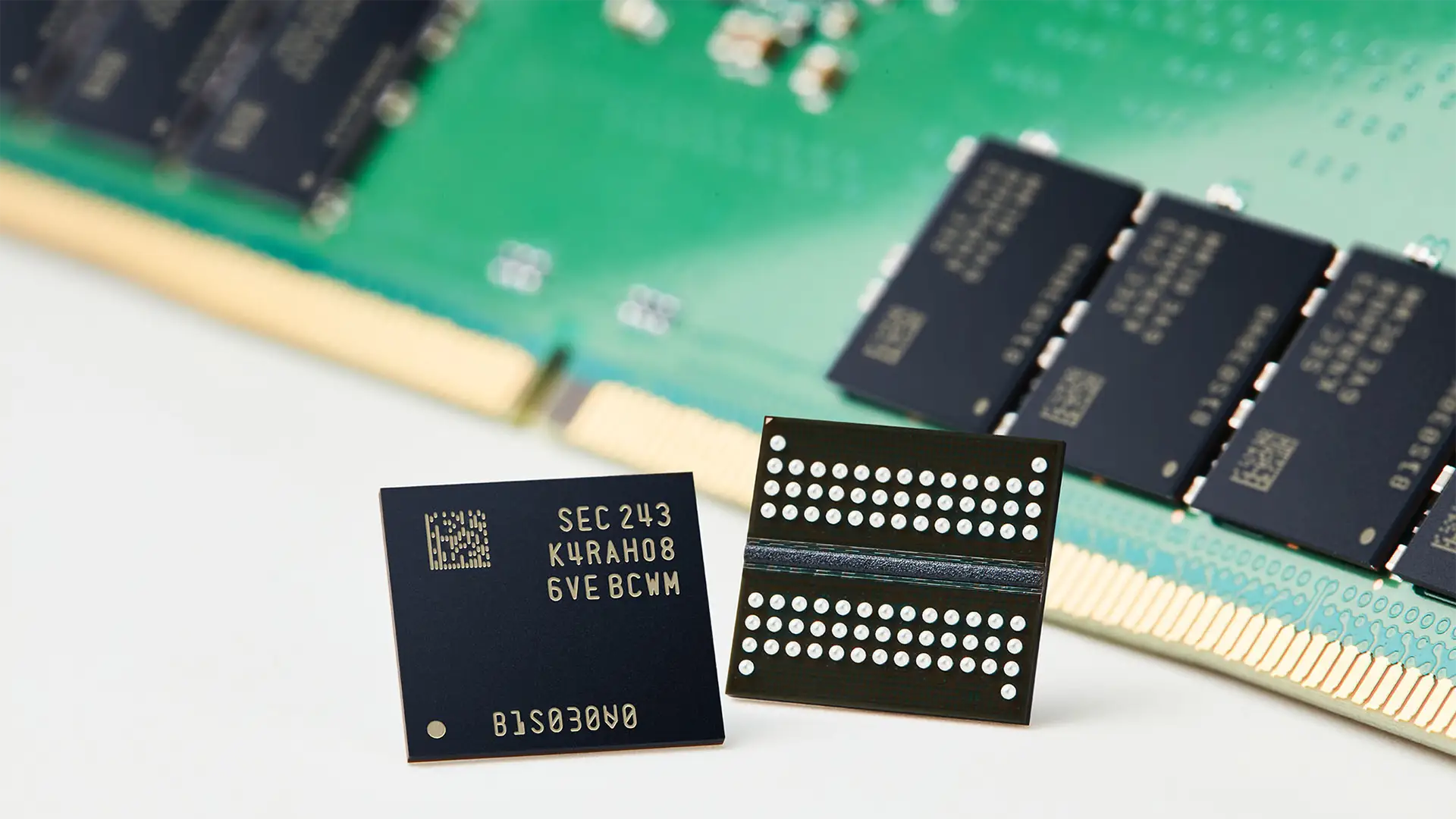

Choosing the right Memory IC chip depends on the specific requirements of your system, including speed, size, interface, cost, and endurance. Here's a structured guide to help you select the appropriate memory IC:
Step-by-Step Guide to Choosing a Memory IC
1. Define the Purpose of the Memory
Ask yourself:
-
Program storage (e.g., firmware): → Flash, NOR Flash, EEPROM
-
Data storage (e.g., logs, files): → NAND Flash, EEPROM, MRAM
-
Volatile working memory (e.g., variables, buffers): → SRAM, DRAM
-
Cache or high-speed buffer: → SRAM, QDR SRAM
2. Choose Memory Type Based on Function
| Memory Type | Non-volatile | Use Case | Notes |
|---|---|---|---|
| SRAM | ❌ No | Cache, small buffers | Fast, simple, expensive, low density |
| DRAM | ❌ No | Main system RAM (PC, high-end MCU) | High density, needs refresh logic |
| NOR Flash | ✅ Yes | Code storage, boot ROM | Random access, slower writes |
| NAND Flash | ✅ Yes | Large file/data storage (e.g., SD cards) | High density, block-based access |
| EEPROM | ✅ Yes | Config settings, small data | Byte-level access, slow write, limited cycles |
| FRAM / MRAM | ✅ Yes | Fast and frequent reads/writes | Fast like SRAM, endurance like Flash |
3. Select the Interface
| Interface Type | Examples | Application |
|---|---|---|
| Parallel | 8/16-bit buses | High-speed MCU, legacy systems |
| SPI / QSPI | Flash, EEPROM, FRAM | Low pin count, slower but simple |
| I2C | EEPROM, FRAM | Small config storage |
| SDIO / eMMC | NAND-based memory | SD cards, mobile storage |
| DDR / SDRAM | DRAM | High-speed memory in processors |
4. Determine the Required Capacity
-
For code storage → 128 KB to 16 MB (NOR Flash)
-
For data logging → 1 MB to several GB (NAND, EEPROM, FRAM)
-
For RAM → 256 KB to multiple GB (SRAM/DRAM)
-
Consider wear (endurance) if frequent writes happen
5. Check Speed Requirements
-
SRAM/DRAM: used for fast, high-bandwidth operations
-
EEPROM/Flash: slower, use for rarely written data
-
QSPI Flash: faster than SPI; good for executing code from external flash (XIP)
6. Evaluate Operating Parameters
-
Voltage (1.8V, 3.3V, etc.) – match with your MCU/system
-
Temperature range (e.g., -40 °C to 85 °C for industrial use)
-
Package type (SOIC, DFN, BGA, etc.) – match your PCB design
7. Consider Cost, Availability, and Lifecycle
-
Availability from major vendors (e.g., Micron, Winbond, Microchip, Cypress, ST)
-
End-of-life concerns (long-term availability for industrial products)
-
Licensing (e.g., for certain Flash IP)
Example Selection Scenarios
| Use Case | Suggested Memory Type | Notes |
|---|---|---|
| Storing MCU firmware | NOR Flash (SPI or parallel) | Supports execute-in-place (XIP) |
| Logging sensor data | NAND Flash or EEPROM | Depends on size and endurance |
| Backup settings (low power) | EEPROM or FRAM (I2C/SPI) | FRAM is faster and more durable |
| High-speed buffering | SRAM or DRAM | External RAM for DSPs or processors |
| SD card alternative | eMMC or NAND Flash | Higher integration, especially for Linux |
Checklist Before Final Choice
- Required memory size
- Non-volatile or volatile?
- Read/write speed
- Interface (SPI, I2C, parallel, etc.)
- Supply voltage compatibility
- Operating temperature range
- Endurance (for Flash/EEPROM)
- Budget and availability
