How to quickly evaluate whether an MCU can run the system RTOS?

Evaluating whether an MCU can run a Real-Time Operating System (RTOS) quickly involves checking a few critical hardware and resource thresholds.

Here’s a practical, step-by-step guide to make a rapid assessment.

The Quick Checklist: The "5-Minute MCU RTOS Viability Test"

Ask yourself these questions in order. If you answer "Yes" to all, the MCU is almost certainly capable.

1. Does it have a hardware stack pointer? (Is it a Von Neumann or Harvard architecture machine?)

   • What to check: Is it a modern processor core (like ARM Cortex-M, RISC-V, ESP32, etc.) or a classic microcontroller (like 8051, PIC16, AVR)?

   • Verdict: If it's a 32-bit core (especially ARM Cortex-M), you're almost guaranteed a "YES." For older 8-bit cores like 8051 or PIC16, the answer is likely "NO" or "it will be a major struggle."

2. Does it have enough Flash (ROM)?

   • Threshold: > 32 KB is a comfortable starting point.

   • Reasoning: A typical kernel like FreeRTOS can be as small as 4-8KB, but your application code, drivers, and RTOS overhead need space. Below 32KB, you'll be constrained; below 16KB, it's often not worth the overhead unless you are an expert.

3. Does it have enough RAM (SRAM)?

   • Threshold: > 8 KB is the absolute minimum for a few simple tasks. > 16 KB is recommended for practical projects.

   • Reasoning: RAM is consumed by:

     • Task Stacks: Each task needs its own stack. The more complex the task, the larger the stack.

     • Kernel Data: The RTOS itself needs memory for task control blocks (TCBs), queues, semaphores, etc.

     • Heap: Used for dynamic allocation of kernel objects.

4. Does it have a hardware timer for the System Tick?

   • What to check: Does the MCU have at least one programmable timer (e.g., SysTick in ARM Cortex-M)?

   • Reasoning: The RTOS needs a periodic interrupt (the "tick") to manage the task scheduler, handle time delays (vTaskDelay), and manage timeouts. Without a dedicated timer, implementing the OS becomes very complex.

Detailed Breakdown: Why These Factors Matter

Let's look at the "why" behind the checklist.

1. Core Architecture and Processing Power

This is the most critical factor.

• Green Light (Excellent Fit):

  • 32-bit MCUs (ARM Cortex-M, RISC-V, ESP32, etc.): These are designed for running RTOSes. They have hardware support for context switching, a dedicated SysTick timer, and a memory map that simplifies OS operation. Even the smallest Cortex-M0 (e.g., STM32F0) is perfectly capable.

• Yellow Light (Possible, but Challenging):

  • Advanced 8/16-bit MCUs (AVR, PIC24/dsPIC, 8051 with more RAM): It is possible to run a lightweight RTOS (like FreeRTOS for AVR or TNKernel). However, limited stack space, memory architecture, and the lack of a hardware multiply/divide unit can make performance and memory management tricky. It's for experts who need an RTOS on a constrained platform.

• Red Light (Not Practical):

  • Very simple 8-bit MCUs (PIC10/12/16, basic 8051): These lack the resources and architectural features. The overhead of the RTOS would outweigh its benefits. A simple superloop (while(1)) with interrupt service routines (ISRs) is a much more efficient design here.

2. Memory (Flash and RAM) - The Hard Limits

RAM is the true bottleneck. You can estimate RAM usage:
Total RAM ≈ (Stack for Task 1) + (Stack for Task 2) + ... + (Kernel Overhead ~1-2KB)

If your tasks involve heavy function calls or large local arrays, their stacks will be large. Running out of RAM leads to silent corruption and system crashes.

3. Peripheral Requirements

• System Tick Timer: Mandatory. This is the "heartbeat" of the OS.

• Memory Protection Unit (MPU): Optional but highly valuable for safety-critical systems (e.g., medical, automotive). It allows the RTOS to isolate tasks, preventing a faulty task from corrupting the memory of others. Found on Cortex-M3/M4/M7/M33 and above.

Practical Evaluation: A Real-World Example

Let's compare two popular MCUs:

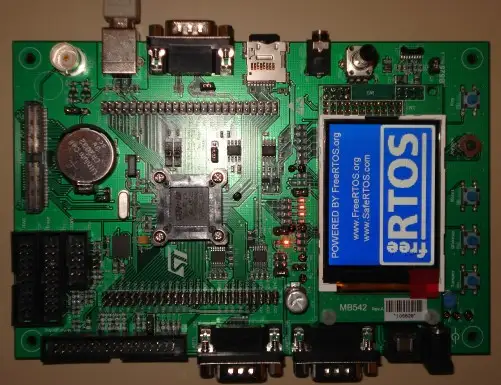

1. STM32F103C8T6 ("Blue Pill" - ARM Cortex-M3)

• Core: 32-bit Cortex-M3 -> YES

• Flash: 64 KB -> YES

• RAM: 20 KB -> YES

• SysTick: Yes -> YES

• Verdict: Excellent candidate. A very common choice for RTOS projects.

2. ATmega328P (Arduino Uno)

• Core: 8-bit AVR -> Challenging

• Flash: 32 KB -> Barely Meets Minimum

• RAM: 2 KB -> NO (Major constraint)

• SysTick: No (but can use a general-purpose timer) -> Okay

• Verdict: 🟡 Theoretically possible, but not recommended. The 2KB RAM is the killer. You might run 2-3 very simple tasks, but you will be constantly on the edge of a stack overflow. A superloop is a better fit.

Action Plan: How to Test Your Specific MCU

1. Identify Your MCU's Core: Look up the datasheet. If it's an ARM Cortex-M, you're 90% there.

2. Check the Memory Size: Compare its Flash and RAM against the thresholds above.

3. Check for a Community: Search for "[Your MCU Model] + FreeRTOS" or "+ Zephyr". If you find tutorials, ports, or examples, it's a very strong confirmation that it works well.

4. Use a Scalable RTOS: Start with a highly portable and scalable RTOS like:

   • FreeRTOS: The most popular, very small footprint, and ported to almost everything.

   • Zephyr: More modern, includes networking and drivers, but has a larger footprint.

   • Azure RTOS (ThreadX): Very high performance and reliable, common in commercial products.

Conclusion

The quick rule of thumb: If your MCU is a 32-bit processor (especially ARM Cortex-M) with at least 32 KB of Flash and 8-16 KB of RAM, it can almost certainly run an RTOS effectively. For 8-bit MCUs with limited RAM, a simple superloop architecture is often the better, more efficient choice.
