ULN2803A Driver IC Overview
The ULN2803A is a high-voltage, high-current relay driver IC used in various electronic circuits to drive larger loads, such as motors, relays, and stepper motors. It features 7 Darlington pairs and built-in diode protection, making it highly suitable for industrial and consumer applications.

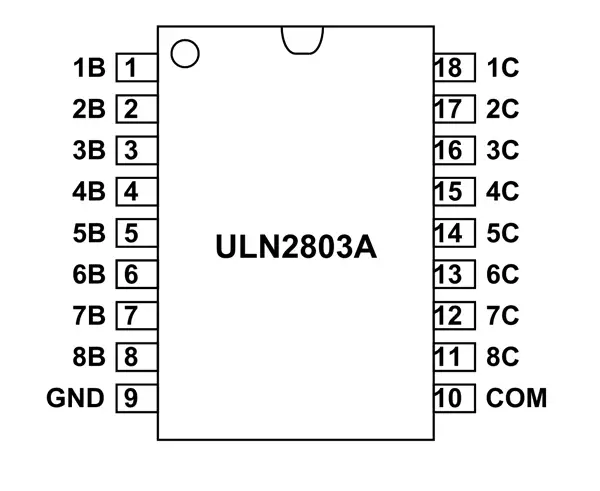

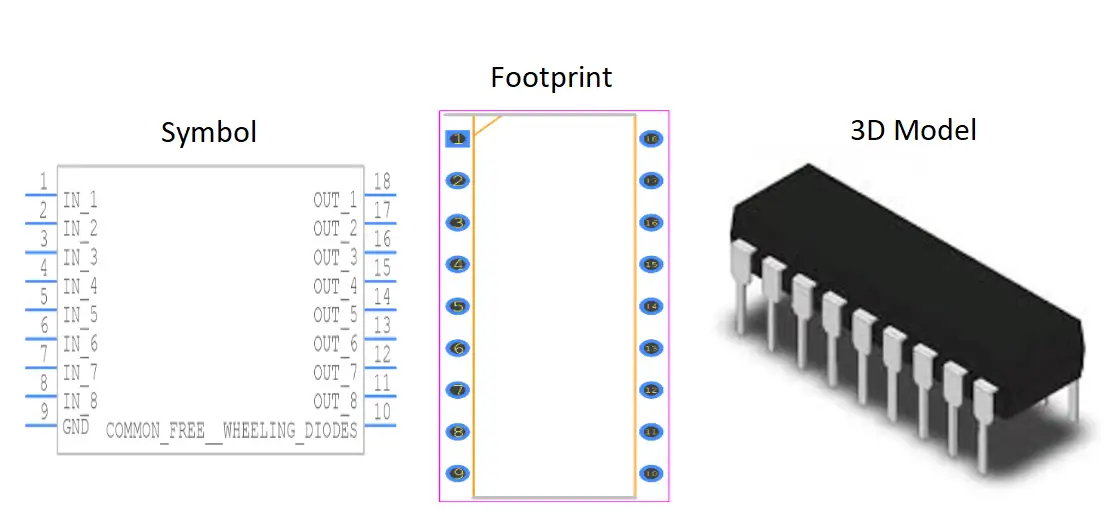

Key Features and Specifications of ULN2803A
| Specification | Details |
|---|---|
| Pin Count | 18 Pins |
| Operating Voltage Range | 5V to 50V |
| Maximum Output Current | 500mA per channel, 2.5A total (7 channels) |
| Input Voltage | 2.4V to 5V |
| Output Voltage | Up to 50V |
| Power Dissipation | 2W (typical) |
| Protection Features | Built-in Diode Protection |
| Applications | Relay Driver, Motor Control, Stepper Motor Control, etc. |
Applications of ULN2803A
The ULN2803A is widely used in relay driving and load control circuits, particularly in the following applications:
-
Industrial Automation: Driving motors, relays, and other control devices.
-
Consumer Electronics: Used in appliances for switching operations.
-
Robotics: Driving stepper motors and other driving systems.
-
Home Automation: For controlling lighting, electric curtains, etc.

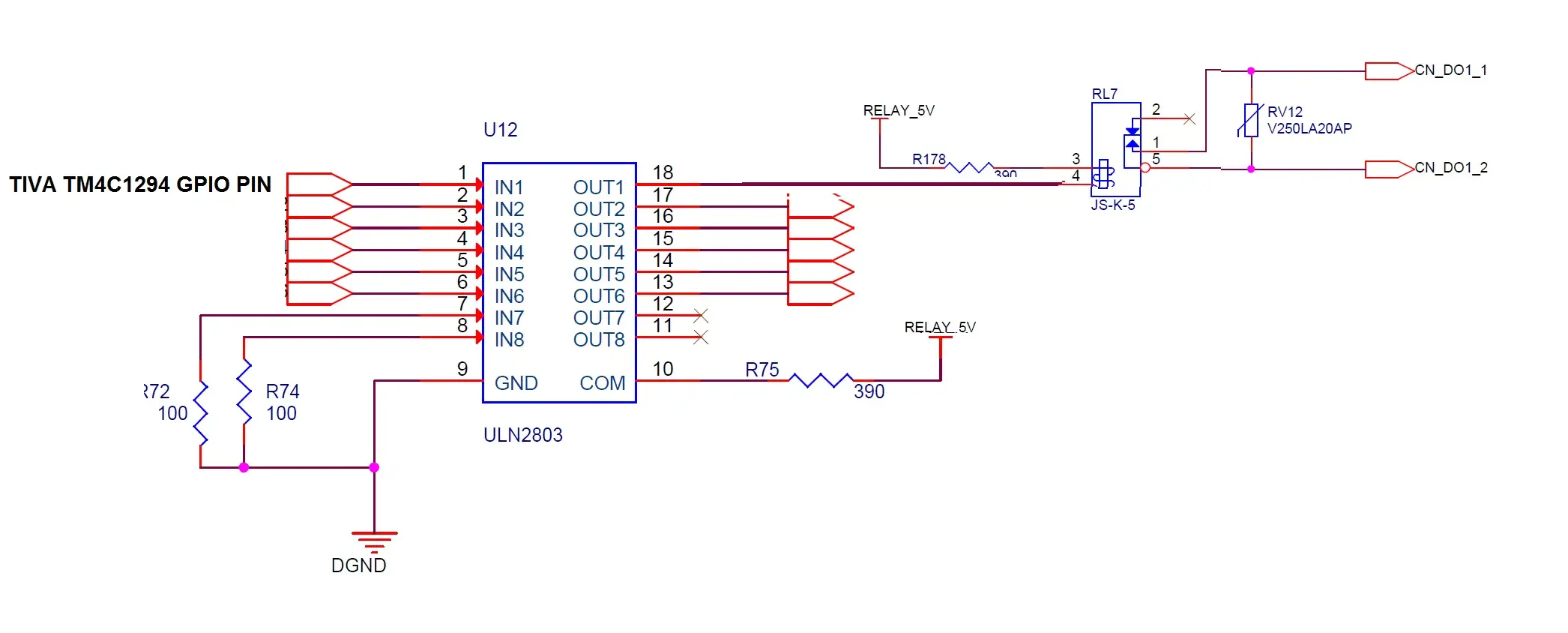

How to Use ULN2803A in Circuit Design
The ULN2803A is ideal for interfacing microcontrollers with larger loads. Here’s how you can integrate it into your circuit:
-
Connect the Microcontroller: Link the input pins of the ULN2803A to the digital outputs of a microcontroller.
-
Connect the Load: Attach the output pins of the ULN2803A to relays or motors, and use an external power supply to drive the load.
Important Notes:
-
Ensure that the input voltage is within the specified operating range.
-
Provide adequate heat dissipation to prevent the IC from overheating.
Where to Buy ULN2803A
You can purchase the ULN2803A driver IC through the following channels:
-
Onzuu: We offer bulk and retail options for ULN2803A and other electronic components, with global shipping available.
-
Electronics Distributors: Such as DigiKey, Mouser, and RS Components, which provide detailed specs, pricing, and availability.
-
Online Marketplaces: Websites like Amazon or eBay often feature various brands and pricing options for ULN2803A.
ULN2803A Alternatives
If the ULN2803A does not suit your needs, here are some alternatives:
-
ULN2003A: Similar functionality but for lower voltage applications.
-
ULN2804A: Offers similar capabilities with more output channels.
-
TLP2800: A phototransistor relay driver IC, suitable for applications requiring electrical isolation.
Frequently Asked Questions
Q1: What is the maximum current that ULN2803A can drive?
A1: Each output channel can drive a maximum current of 500mA, with a total maximum of 2.5A across all 7 channels.
Q2: How does ULN2803A protect its output pins from back-current?
A2: The ULN2803A has built-in diode protection, which safeguards the IC from back-current that could damage the device.
Q3: Is ULN2803A suitable for use in a 12V system?
A3: Yes, the ULN2803A operates within a voltage range of 5V to 50V, so it is fully compatible with a 12V system.
Conclusion
The ULN2803A is a powerful relay driver IC, commonly used in industrial control, consumer electronics, robotics, and home automation applications. By understanding its specifications, applications, and purchase options, you can effectively integrate this component into your projects. If you need more technical support or wish to purchase ULN2803A, feel free to visit Onzuu for additional resources and services.
