Here’s the short version: every “extra” part on a PCB buys you a specific bit of physics—resistance, capacitance, or inductance—to control how voltage and current behave in time and frequency. Without those parts, chips don’t get clean power, signals ring or blur, radios detune, converters explode, and nothing is stable.

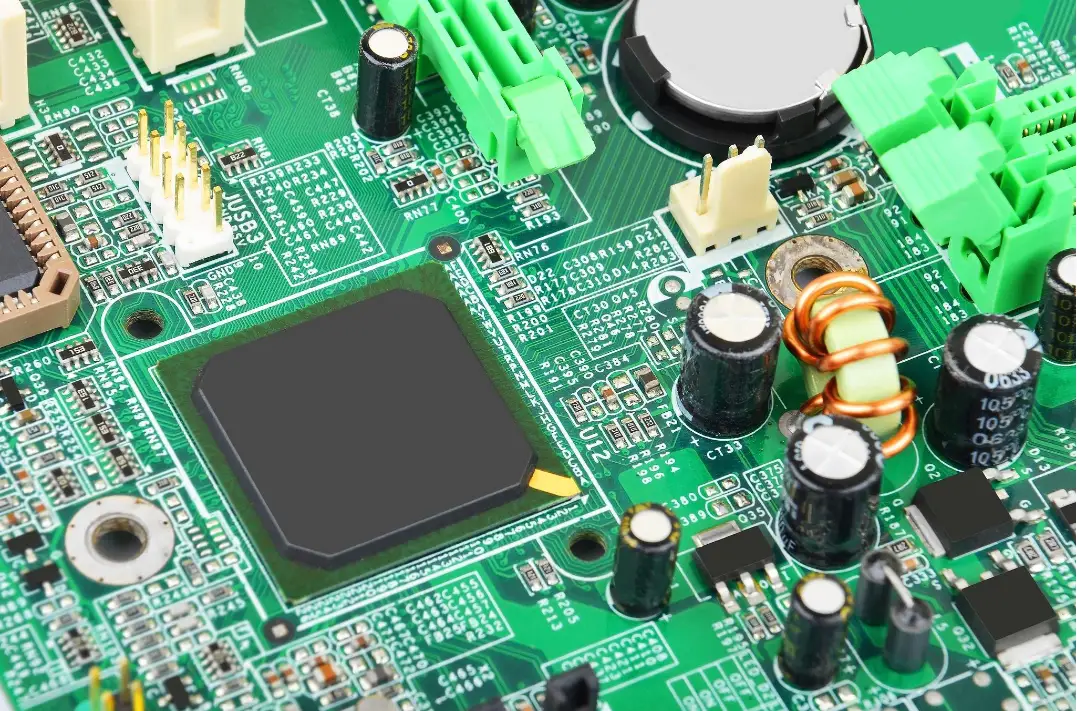

What all those parts actually do
Power integrity
-
Bulk capacitors (10–1000 µF) buffer slow power swings; decoupling/bypass caps (0.1 µF, 1 µF, etc.) sit right at IC pins to supply nanosecond spikes and keep rails quiet.
-
Ferrite beads/LC filters choke high-frequency noise between power domains.
-
Bleeder resistors safely discharge big caps; snubbers (RC/RC-damper) tame switch-node ringing.
Biasing & level setting
-
Resistor dividers create reference voltages; pull-ups/pull-downs define logic states; current-limit resistors protect LEDs and inputs.
-
Feedback networks around op-amps or regulators set gain and output voltage.
Timing, clocks & RF
-
RC networks set delays and time constants; crystals/oscillators give precise clocks; LC tanks set radio frequencies and filter channels.
Signal conditioning & filtering
-
RC/LC filters remove noise (anti-alias before ADCs, reconstruction after DACs), shape bandwidth, and prevent oscillations.
-
Impedance-matching resistors/terminations (e.g., 22–100 Ω series or 50 Ω shunts) stop reflections on fast digital lines.
Energy conversion
-
Inductors and diodes are the muscle of buck/boost converters; they store and redirect energy that regulators need to step voltages up/down efficiently.
Protection & robustness
-
Series resistors tame inrush/ESD; TVS diodes clamp surges; RC filters protect ADC pins; common-mode chokes fight EMI on USB/Ethernet.
Sensing
-
Shunt resistors measure current; RC integrators average sensor noise; bridge resistors form precision measurement networks.
Why not put it all inside the chip?
-
Energy & size limits: On-chip capacitors/inductors can’t store much energy—real power filtering needs off-chip parts.
-
Voltage & heat: Discrete parts handle higher voltages and dissipation safely.
-
Accuracy & tuning: Board-level passives let you set exact gains, time constants, and RF matches for your layout and enclosure.
-
Cost & flexibility: One IC can serve many products; you customize behavior with a handful of cheap passives.
“What breaks if I leave them out?”
-
No decoupling → random resets, data corruption, EMI failures.
-
No LED resistor → burnt LEDs/ports.
-
No terminations → ringing, overshoot, flaky high-speed links.
-
No input filters → noisy ADC readings, unstable control loops.
-
No inductors in SMPS → regulator either won’t regulate or will self-destruct.
Quick cheat sheet
| Part | Core job | Classic placements |
|---|---|---|
| 0.1 µF cap | Kill HF noise | Right at every VCC pin |
| 1–10 µF cap | Mid-freq energy | Near each IC / rail splits |
| 47–470 µF cap | Bulk reservoir | Power entry / regulators |
| 22–100 Ω series R | Damping/EMI | Fast GPIO, clocks, MISO/MOSI |
| 1–10 kΩ | Pull-ups/downs | Reset, enables, I²C lines |
| Crystal + load caps | Precise clock | MCU/SoC clock pins |
| Inductor (µH) | DC-DC energy | With switcher IC, tight loop |
| Ferrite bead | HF isolation | Between noisy/quiet rails |
Rules of thumb
-
Put a 0.1 µF right at each power pin; add 1 µF nearby; one bulk cap per rail at the source.
-
Keep switching loops tiny (inductor–diode–switch–cap).
-
Terminate long/fast lines (SPI > ~20 MHz, clocks, LVDS) to control edges.
-
Filter sensor inputs before the ADC; match filter bandwidth to your signal.
-
Prefer C0G/NP0 for precision small caps; X7R for general decoupling; avoid Y5V/Z5U for anything critical.
