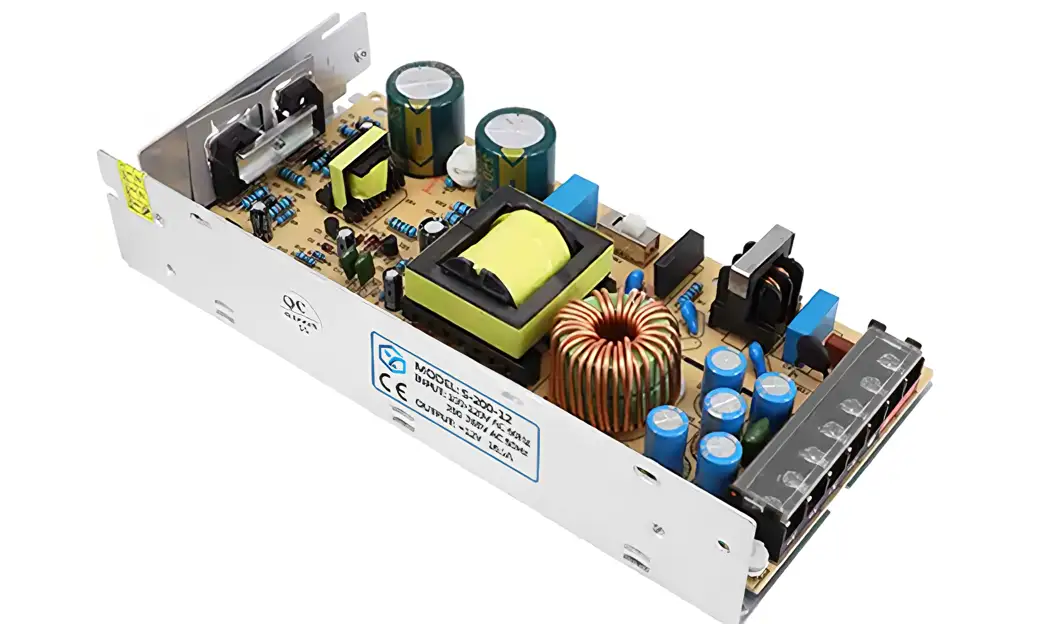

Application of Transformers and Inductors in LED Power Supply

This is an excellent topic that gets to the heart of modern power electronics. Transformers and inductors are fundamental, yet distinct, components in LED power supplies (also known as LED drivers).

Here’s a detailed breakdown of their applications, how they work together, and why they are indispensable.

Executive Summary

• Transformers are primarily used for isolation and voltage step-down/up in AC/DC power supplies. They are crucial for safety.

• Inductors are the core component of switching regulators (like Buck, Boost, Buck-Boost converters) that provide precise current control and smoothing for the LEDs. They are crucial for efficiency and performance.

• In a typical LED driver, you will often find both: a transformer for AC isolation and an inductor in the DC-DC converter stage for regulation.

1. The Role of Transformers

Transformers are used almost exclusively in the initial AC/DC conversion stage of an isolated LED driver.

Key Applications:

a) Safety Isolation (The Primary Role)

• Purpose: To physically and electrically separate the high-voltage AC mains (e.g., 120VAC or 230VAC) from the low-voltage DC output that powers the LEDs.

• Why it's critical: This isolation protects users from electric shock if they touch the LED module or the driver's output terminals. It is a mandatory safety requirement for most mains-powered lighting applications.

b) Voltage Step-Down

• Purpose: To reduce the high mains AC voltage to a lower, more manageable AC voltage before it is rectified to DC.

• How it works: The transformer has more windings on its primary (input) side than on its secondary (output) side, resulting in a lower output voltage.

c) Topology Example: Flyback Converter

• The most common switching power supply topology for low-to-medium power LED drivers is the Flyback Converter.

• In a flyback converter, the component that looks like a transformer is technically a coupled inductor, but it performs both transformer (isolation, voltage transformation) and inductor (energy storage) functions.

  1. The switch (e.g., a MOSFET) turns on, and current builds up in the primary winding, storing energy in the core.

  2. The switch turns off, and the stored energy is transferred to the secondary winding, which powers the LED load.

• This topology is prized for its simplicity, good isolation, and ability to handle wide input voltage ranges.

2. The Role of Inductors

Inductors are used throughout LED drivers, but their most important application is in the DC-DC switching regulator stage that provides constant current to the LEDs.

Key Applications:

a) Energy Storage and Smoothing (Current Ripple Reduction)

• Purpose: An inductor resists changes in current. In a switching circuit, it stores energy when the switch is on and releases it when the switch is off.

• Result: This action smooths out the "chunky" pulsed current from the switch into a much smoother, nearly constant current that is ideal for driving LEDs, minimizing light flicker and improving efficiency.

b) Current Regulation

• Purpose: The core function of an LED driver is to provide a constant current (e.g., 350mA, 700mA), not a constant voltage. The brightness and longevity of an LED are directly controlled by current.

• How it works: In converters like a Buck Converter (Step-Down), the inductor, switch, and diode work together with a control IC to precisely regulate the average current flowing through the LED string. The controller switches on and off rapidly (10s-100s of kHz) to maintain the exact target current.

c) Topology Examples:

• Buck Converter (Step-Down): The most common topology for DC-DC LED driving (e.g., from 24VDC to a string of 5 LEDs). The inductor is the key component that controls the output current.

• Boost Converter (Step-Up): Used when the LED string voltage is higher than the input voltage (e.g., powering a long string of LEDs from a 12V battery).

• Buck-Boost Converter: Used when the input voltage can be either above or below the LED string voltage.

d) EMI Filtering

• Purpose: Smaller inductors are used in LC filter networks at the input and output of the power supply.

• Why: Switching regulators generate high-frequency electrical noise. Inductors, in combination with capacitors, block this noise from traveling back onto the AC mains input (ensuring compliance with EMC regulations) and from reaching the LED output, which could cause interference.

Comparison Table: Transformers vs. Inductors in LED Drivers

Practical Design Considerations

1. Efficiency: Both components have losses (copper losses from wire resistance and core losses from the magnetic material). High-frequency, low-loss ferrite cores are used in both to maximize efficiency (>90% is common in good drivers).

2. Size: Operating at a higher switching frequency allows for the use of smaller transformers and inductors. This is why modern LED drivers are so compact compared to old magnetic transformer-based "ballasts."

3. Cost vs. Performance: The choice of core material (e.g., ferrite, powdered iron) and the design of these components is a key trade-off between cost, size, efficiency, and temperature performance.

Conclusion

In summary, you cannot have a modern, efficient, and safe LED power supply without both transformers and inductors:

• The transformer is the guardian, providing essential safety isolation from deadly mains voltage.

• The inductor is the precision regulator, tirelessly smoothing and controlling the current to ensure the LEDs shine brightly, efficiently, and with a long lifespan.

They are a complementary duo, each performing a critical function that the other cannot, working in harmony to convert dangerous AC mains power into safe, stable, constant current for LEDs.
