Analysis of the Circuit Principle of the Lottery Machine

Below is a practical, engineering-style breakdown of the circuit principles behind lottery machines. I’ll cover both common architectures:

1. Ball-draw machines (physical ping-pong balls blown/mixed and selected), and

2. Electronic lottery/instant-win terminals (RNG-driven with reels/graphics, ticket printer, etc.).

1) System Architectures at a Glance

A. Ball-Draw Lottery Machine (physical balls)

Blocks

• Power & isolation: AC mains → EMI filter → isolated SMPS (e.g., 24 V & 5 V rails); opto-isolated triac/SSR to control blower motor.

• Actuators: AC blower motor, stepper/servo for gates/traps, solenoids for “ball release”.

• Sensors: IR reflective/through-beam to detect ball presence, Hall encoder for drum position, weight/ID sensing (optional).

• Controller: Safety MCU (with watchdog & CRC), optional backup/dual MCU or a small FPGA/CPLD for timing.

• HMI: Start/stop buttons, status LEDs, large display, buzzer; sometimes camera for broadcast.

• Comms & logging: RS-485/Ethernet to host; secure event log in Flash (with signatures).

• Security: Tamper switches on doors, seals, the controller in a locked metal enclosure.

Principle: The controller sequences motors/solenoids, continuously checks sensors, and records events. Randomness in these machines is physical (turbulent airflow), but you still add procedural fairness (spin time, gate timing windows, sensor checks, audit trail).

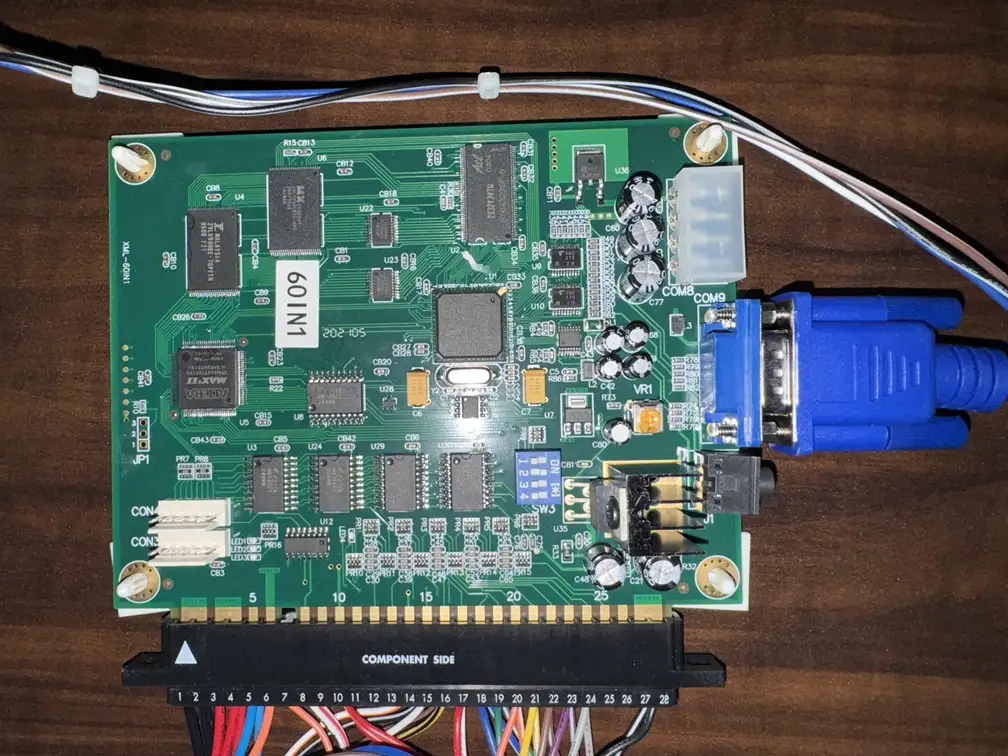

B. Electronic Lottery / Instant-Win Terminal (RNG-based)

Blocks

• Power: AC mains → medical/industrial-rated SMPS (12 V/24 V) → on-board DC-DC (5 V/3.3 V).

• Compute: Secure MCU or SoC; sometimes secure element (ATECC/TPM) for keys & attestation.

• True Random Number Generator (TRNG): avalanche diode noise or MCU TRNG; seeded DRBG (e.g., CTR-DRBG/HMAC-DRBG).

• Peripherals: Ticket thermal printer, bill/coin validator, barcode scanner, touch display, audio amp.

• I/O drivers: MOSFET low-side drivers for lamps/solenoids (with flyback), stepper drivers for mechanisms.

• Comms: Ethernet/4G with TLS, remote attestation, OTA updates with signed firmware.

• Security: Tamper mesh/switches, secure boot (root of trust), encrypted logs.

Principle: A cryptographically secure RNG determines outcomes; the rest of the circuitry safely actuates, prints, displays, and reports, with tamper-evidence and auditability.

2) Core Circuit Principles by Subsystem

Power, Isolation & EMC

• Input filter (common-mode choke + X/Y caps) → isolated PSU (Class II/medical grade if required).

• Separate noisy loads (motors/solenoids) from logic via star routing and distinct rails (e.g., 24 V_MOT, 5 V_LOGIC).

• Opto-isolated triac/SSR for AC blower control; opto-isolated digital inputs for external sensors on long harnesses.

• Surge/ESD protection: MOV/TVS at mains input; ESD diodes on user I/O.

Actuation

• Blower motor (AC): zero-cross SSR/triac (MOC3063-class optotriac + triac) for on/off, or closed-loop VFD if speed control is needed.

• Stepper/servo: A4988/TMC-class drivers for gates; include current-sense and microstepping for smooth motion.

• Solenoids: N-MOSFET low-side (logic-level), flyback diode or TVS across coil; add RC snubber if EMI is an issue.

• Relays only for non-PWM loads; for longevity, prefer SSRs/MOSFETs for frequent switching.

Sensing

• Ball detection:

  • Through-beam IR across chute → clean, binary “ball present” signal.

  • Reflective IR for pocket presence (debounce + threshold).

• Position sensing:

  • Hall sensors + magnet on drum or optical encoder disc.

• Cover/door tamper: normally-closed micro-switches wired fail-safe; monitored by MCU with timestamped logs.

• Current/thermal: shunt + INA current sense on motors; NTCs for thermal monitoring.

Controller & Security

• MCU with: independent watchdog, RAM/Flash CRC, secure boot if RNG-based.

• Dual-channel safety (optional): small secondary MCU to supervise “safe stop” signals to motor SSR/PSU enable.

• Secure element: stores keys; signs logs and verifies firmware.

• RNG (electronic terminals):

  • TRNG entropy (avalanche diode or on-chip) → conditioner (whitener/Von Neumann) → DRBG.

  • Periodic health tests & entropy monitoring; seed stored encrypted with versioned keys.

HMI & Peripherals

• Display: TFT via RGB/LVDS/DSI; or simple 7-segment/LED matrix driven by shift registers.

• Buttons/lamps: matrix or direct GPIO with debounce (RC + Schmitt or in firmware), lamp drivers via MOSFET.

• Thermal printer: 24 V rail; ensure bulk capacitance; UART/USB interface; paper-out switch.

• Bill/coin validator: opto-isolated inputs/serial (MDB/CCTalk/RS-232/RS-485).

Communications

• RS-485 for robust local links; Ethernet/4G for backend.

• TLS with server/client certs; NTP for time-stamped events; logs mirrored to server.

3) Example Circuit Snippets (conceptual)

Solenoid driver (low-side):
24 V → Solenoid → MOSFET (N-ch, logic-level) → GND; diode across coil (cathode at 24 V). Gate via 100 Ω; include gate pull-down (100 kΩ). Add TVS if coils are long.

Opto isolated input:
Field switch → resistor → optocoupler LED; transistor side to MCU with pull-up; RC filter to tame long cables.

Blower control (AC, isolated):
MCU → optotriac (zero-cross) → triac → blower. Add snubber network; never drive mains loads directly from MCU. Prefer certified SSR modules where possible.

IR through-beam sensor:
5 V → IR LED (with series resistor) + phototransistor receiver → comparator/Schmitt to MCU GPIO. Shield from ambient light; modulate LED at ~38 kHz + demod receiver for robustness if needed.

4) Control & Safety Firmware Flow (ball-draw)

5) Fairness & Audit (essentials)

• Ball-draw: fixed mix time + randomized gate within a bounded window; sensors prevent double-pick; full video + log correlation.

• RNG-based: secure boot, TRNG health tests, deterministic DRBG with reseed schedule, signed payout tables, append-only signed logs, remote attestation.

6) Typical Rails & BOM Hints

• Rails: 24 V@5 A (motors/solenoids), 5 V@2 A (logic/HMI), 3.3 [email protected] A (MCU/SoC).

• Save BOM using: internal RC oscillator, on-chip comparators/OPAMPs for sensors, ROM bootloader (no header), shared RS-485 transceiver for peripherals.

• Prefer QFN packages and pre-certified PSUs/SSRs to cut compliance effort.

7) Compliance & Safety

• Mains isolation (creepage/clearance), fusing, thermal cut-offs.

• ESD/EMC: TVS on I/O, ferrites at cable entries, proper grounding (single-point for shields).

• Lockout & tamper: NC switches; opening a door forces safe de-energize and logs the event.

• Regulatory varies by region (electrical safety, gambling/lottery regulations, software integrity).

8) Troubleshooting Cheat Sheet

• Random trips during actuation → coil back-EMF; check flyback/TVS, add snubbers, verify ground return paths.

• Intermittent ball detection → re-align IR sensors, shield from ambient, add modulation/demod, check soiled optics.

• MCU resets when blower starts → PSU sag/EMI; add bulk caps on logic rail, separate motor return, RC snubbers, better SSR/triac layout.

• Noisy encoders → add Schmitt triggers/RC; check cable shielding and pull-ups.

Mini Reference Designs (what to prototype first)

1. IR through-beam detector board: comparator output to MCU; test with real balls/chutes.

2. Solenoid driver board: MOSFET + TVS + current measurement; validate surge and repeatability.

3. Isolated AC control: certified SSR module + opto input; verify EMI and logic rail immunity.

4. Secure MCU baseboard: watchdog, secure boot, event log (with HMAC in external SPI Flash).
