The short answer is that NMOS transistors are fundamentally better performers than PMOS transistors due to the higher mobility of electrons (which carry current in NMOS) compared to holes (which carry current in PMOS).
Let's break down the reasons in detail.
1. The Core Physics: Electron vs. Hole Mobility
This is the most important and fundamental reason.
-

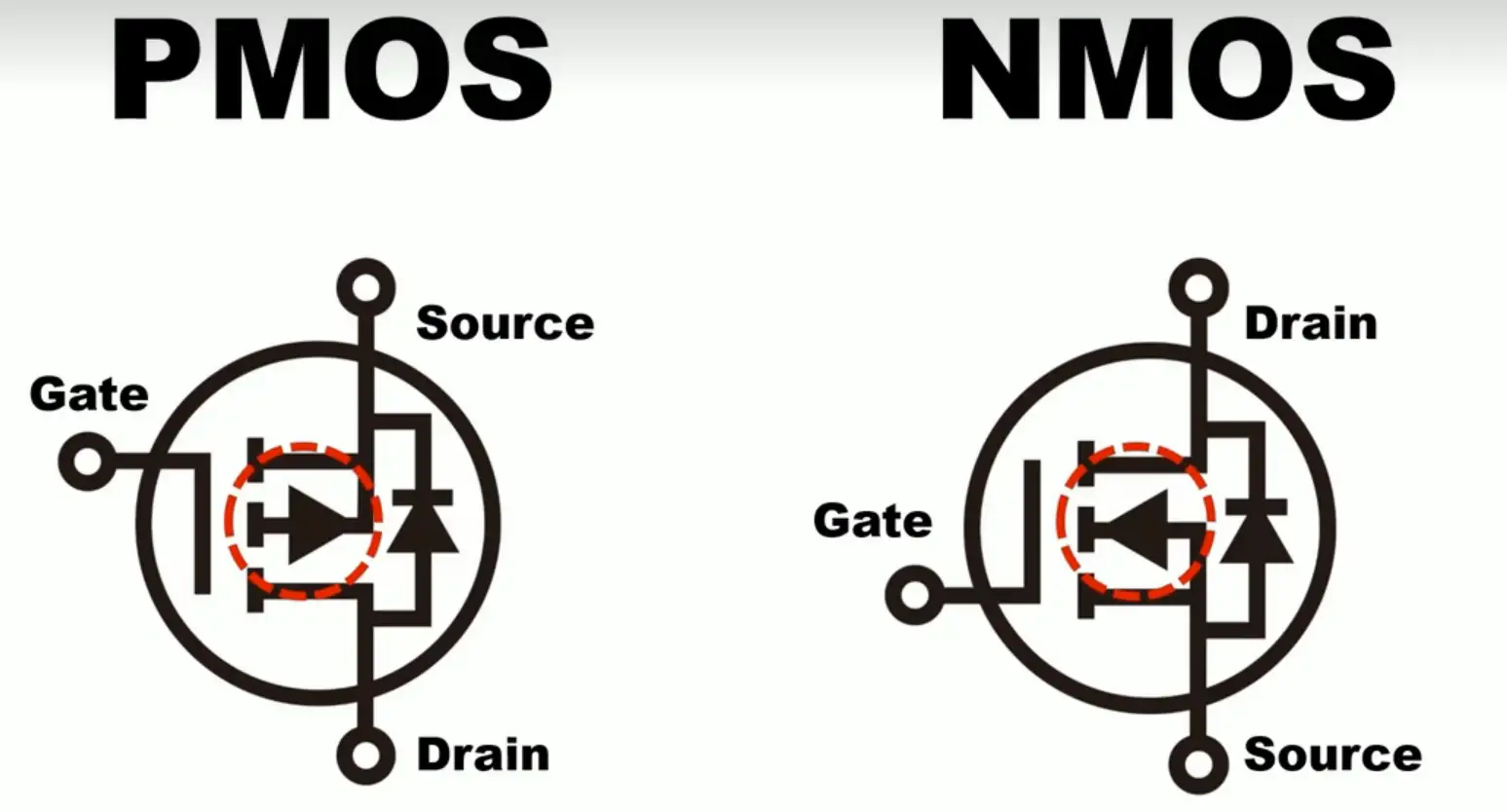

NMOS (N-channel MOSFET): Uses electrons as the primary charge carriers.
-
PMOS (P-channel MOSFET): Uses holes (the absence of an electron) as the primary charge carriers.
Electrons have a much higher mobility than holes. In silicon, electron mobility (µₙ) is typically about 2.5 to 3 times greater than hole mobility (µₚ).
What does "mobility" mean?
Mobility measures how quickly an electron or hole can move through the semiconductor material when an electric field is applied. Higher mobility means:
-
Faster Switching: The transistor can turn on and off more quickly.
-
Higher Current Drive: For the same physical size (width and length), an NMOS transistor can conduct more current than a PMOS transistor.
Conclusion: For the same size and applied voltage, an NMOS transistor is simply stronger and faster.
2. Practical Implications of Higher Mobility
This fundamental physical advantage leads to several key benefits in circuit design:
A. Performance and Speed
Because NMOS transistors can deliver more current, they can charge and discharge capacitive loads (like wires and gate inputs of other transistors) much faster. This directly translates to higher operating frequencies for digital circuits like microprocessors and memory.
B. Area Efficiency (Chip Real Estate)
To make a PMOS transistor conduct the same amount of current as an NMOS transistor, you have to make it wider. A wider transistor takes up more precious space on a silicon chip.
-
This is why in a standard CMOS (Complementary MOS) inverter, the PMOS transistor is often designed to be 2-3 times wider than the NMOS transistor to balance the rising and falling delays. This balancing act is necessary but means the PMOS inherently uses more area.
C. Power Consumption
While both types are very power-efficient in their "off" state, the higher current drive of NMOS can also be leveraged to achieve the same performance at a lower voltage, which reduces dynamic power consumption (P ∝ CV²f).
3. Historical Context: Why PMOS Isn't Obsolete
While NMOS is superior, PMOS is absolutely essential and is used in every modern digital chip. The reason is the invention of CMOS (Complementary MOS) technology.
-
The Old Days (NMOS-only): Early microprocessors (like the Intel 8080) used only NMOS transistors. They were faster than the PMOS technology that preceded them, but they had a significant problem: they consumed static power when the output was low.
-
The CMOS Revolution: CMOS technology uses both NMOS and PMOS transistors together in a complementary way.
-
In a CMOS inverter, when the input is high, the NMOS is on and the PMOS is off.
-
When the input is low, the PMOS is on and the NMOS is off.
-
Key Advantage: In either stable logic state, there is almost no static power path from VDD to GND. Power is only consumed when the circuit switches states.
-
So, while the NMOS transistor is the "workhorse" for speed, the PMOS transistor is crucial for creating the low-power, robust logic families that power all modern electronics.
Summary Table
| Feature | NMOS Transistor | PMOS Transistor | Why it Matters |
|---|---|---|---|
| Charge Carrier | Electrons | Holes | This is the root cause. |
| Mobility | High (µₙ) | Low (µₚ) | NMOS is faster and has higher drive strength. |
| Speed | Faster switching | Slower switching | Enables higher clock frequencies. |
| Size for Equal Current | Smaller | Larger (2-3x wider) | NMOS is more area-efficient. |
| Role in CMOS | Pull-down network | Pull-up network | Both are essential for low-power operation. |
Conclusion
NMOS transistors are more "popular" in the sense that they are the performance drivers in digital design. However, it's more accurate to say that CMOS technology is dominant, and it cleverly leverages the strengths of both transistor types:
-
It uses the superior current drive of NMOS for speed where it's most critical (e.g., pulling outputs down to ground).
-
It uses PMOS to create the complementary path to the power supply, enabling the revolutionarily low static power consumption that defines modern electronics.
So, you'll never find a modern CPU with only NMOS transistors. The partnership between the faster NMOS and the essential PMOS is what makes modern computing possible.
