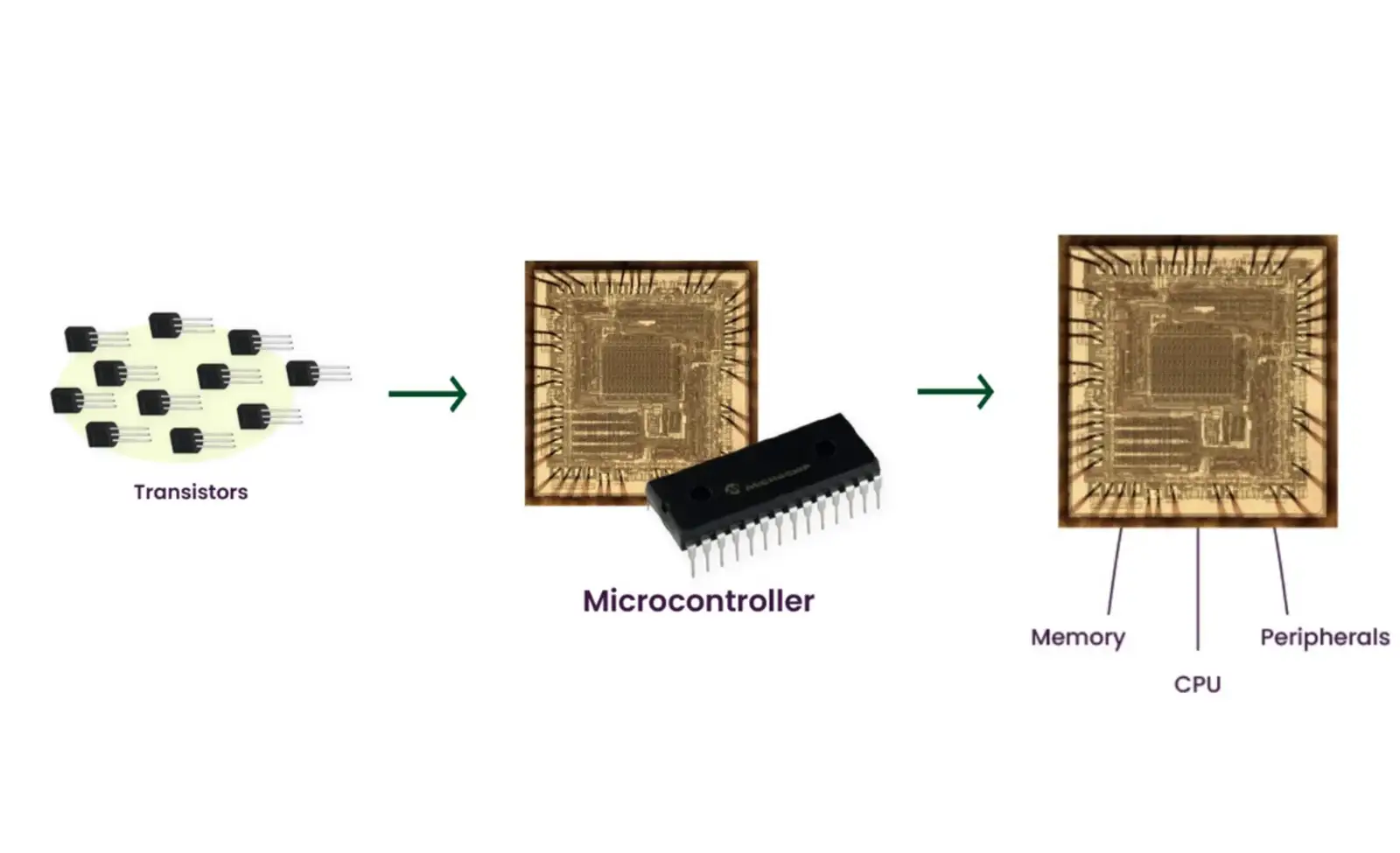

The number of transistors in a microcontroller (MCU) is not a single fixed value — it depends heavily on:
-
Architecture & features (8-bit vs 16-bit vs 32-bit, inclusion of peripherals, RAM/Flash size).
-
Fabrication technology (older 500 nm/180 nm vs modern 40 nm or below).
-
Target application (tiny ultra-low-power MCUs vs feature-rich ARM Cortex-M7 or RISC-V MCUs).
Here’s a breakdown to give you perspective:
1. Small 8-bit MCUs (e.g., PIC, ATmega328P from Arduino Uno)
-
Fabricated on relatively older processes (350 nm–130 nm).
-
Contain tens of thousands to a few million transistors.
-
Example: The classic Intel 8051 (early 8-bit MCU) had ~20,000 transistors.
-
An ATmega328P (used in Arduino Uno) is estimated at a few hundred thousand transistors (due to Flash, SRAM, and peripherals).
-
2. 16-bit MCUs (e.g., TI MSP430 series)
-
Typically 1–5 million transistors.
-
More complex instruction set, larger memory, and mixed-signal peripherals.
3. 32-bit MCUs (ARM Cortex-M series, ESP32, STM32)
-
Fabricated on 90 nm–40 nm (sometimes even 28 nm).
-
Contain tens of millions of transistors.
-
STM32F103 (Cortex-M3): estimated ~10–20 million transistors.
-
ESP32 (dual-core + Wi-Fi + Bluetooth + SRAM + Flash interface): often >100 million transistors.
-
4. High-end microcontrollers (Cortex-M7, Cortex-R, or RISC-V MCUs with AI accelerators)
-
Comparable in transistor counts to low-end application processors.
-
Can reach hundreds of millions of transistors.
5. Comparison for perspective
-
Intel 4004 (1971): 2,300 transistors (first commercial microprocessor).
-
ATmega328P (Arduino Uno): ~0.3–0.6 million (estimate).
-
STM32F7 (Cortex-M7 MCU): ~40–60 million.
-
Modern smartphone SoC (not MCU, but for scale): Apple A17 Pro ~19 billion transistors.
Summary:
A microcontroller can have from a few tens of thousands (very old/simple 8-bit) up to over 100 million (modern 32-bit with Wi-Fi/BLE/AI features).
