Fuses protect electrical circuits from overcurrent, short circuits, and potential fire hazards. Selecting the right fuse involves considering several key factors:
1. Key Parameters for Fuse Selection
A. Current Rating (In)
-
The fuse should be rated slightly higher than the normal operating current of the circuit.
-
Rule of thumb:
-
Continuous current (I_operating): Choose a fuse rated at 125–150% of I_operating.
-
Example: If a circuit draws 2A normally, use a 2.5A or 3A fuse.
-
B. Voltage Rating (V)
-
Must be equal to or higher than the circuit’s maximum voltage.
-
Common ratings:
-
Low voltage (≤ 32V) – Automotive, PCBs.
-
Medium voltage (32V–250V) – Home appliances.
-
High voltage (>250V) – Industrial power systems.
-
C. Breaking Capacity (Interrupting Rating)
-
The maximum fault current the fuse can safely interrupt.
-
For small electronics: 50A–1kA (fast-acting fuses).
-
For power systems: 10kA–100kA (high-breaking-capacity fuses).
D. Speed (Blow Time)
| Type | Response Time | Use Case |
|---|---|---|
| Fast-Acting | Milliseconds | Electronics (PCBs, ICs, LEDs) |
| Slow-Blow (Time-Delay) | Seconds | Motors, power supplies (inrush current) |
| Very Fast (Semiconductor Fuses) | Microseconds | Protecting diodes, transistors |
E. Fuse Type
| Type | Description | Common Uses |
|---|---|---|

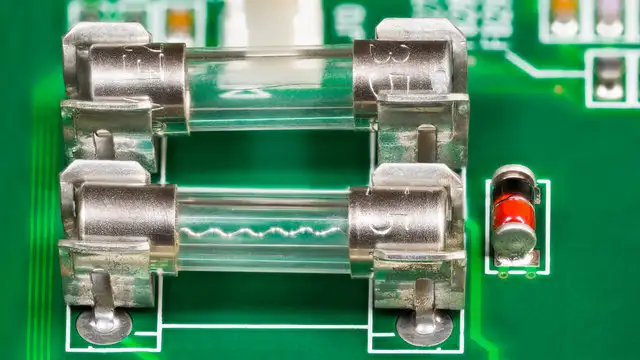

| Glass/Ceramic Cartridge | Small, cylindrical | Electronics, automotive |
| Blade (ATO/ATC) | Automotive-style | Cars, power distribution |
| Resettable (PTC) | Self-resetting after fault | USB ports, battery protection |
| Surface-Mount (SMD) | For PCBs | Smartphones, IoT devices |
| High-Voltage HRC | Industrial-grade | Power grids, factories |
2. Step-by-Step Fuse Selection Guide
Step 1: Determine Normal Operating Current
-
Measure or calculate the steady-state current (e.g., using a multimeter or datasheet).
Step 2: Select Current Rating
-
Fast-acting: 1.25× to 1.5× operating current.
-
Slow-blow: Up to 2× operating current (for inrush tolerance).
Step 3: Check Voltage Rating
-
Must exceed the circuit’s max voltage (e.g., 12V circuit → 32V fuse).
Step 4: Choose Breaking Capacity
-
For small circuits: 50A–1kA.
-
For mains/power lines: ≥10kA.
Step 5: Select Speed Based on Application
-
Fast-acting: Sensitive electronics.
-
Slow-blow: Motors, transformers, power supplies.
Step 6: Choose Physical Type
-
PCB-mounted: SMD or through-hole.
-
Automotive: Blade fuses.
-
Industrial: High-voltage cartridge fuses.
3. Common Mistakes to Avoid
❌ Using a fuse with too high a current rating → No protection.
❌ Ignoring inrush current → Slow-blow needed for inductive loads.
❌ Wrong voltage rating → Risk of arcing or failure to interrupt.
❌ Overlooking ambient temperature → Derate fuses in hot environments.
4. Example Applications
| Application | Recommended Fuse Type | Current Rating |
|---|---|---|
| USB 5V Circuit | Fast-acting SMD fuse | 1A–2A |
| 12V Car Accessory | ATO blade fuse | 5A–20A |
| AC Motor (230V) | Slow-blow ceramic fuse | 2× operating current |
| Lithium Battery Pack | Resettable PTC fuse | 1.5× max discharge current |
Final Advice
-
Always test under real conditions before finalizing.
-
Check manufacturer datasheets for derating curves (temperature effects).
-
When in doubt, consult IEC 60127 (for small fuses) or UL/ANSI standards (for power fuses).
