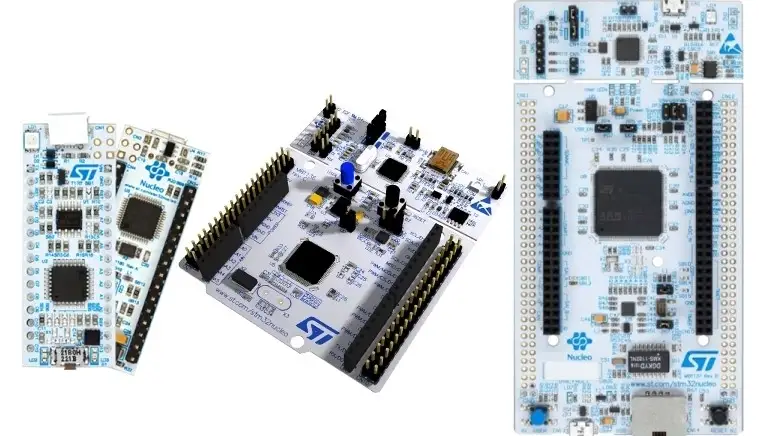

The Nucleo development boards are a series of development platforms from STMicroelectronics, designed around their STM32 microcontrollers. These boards are widely used in embedded systems and IoT applications. They come in various configurations, offering different features based on the microcontroller family they use.
Here are the key differences between various Nucleo boards:
1. Microcontroller Family
The STM32 Nucleo boards are based on different families of STM32 microcontrollers. These families vary in processing power, peripheral features, and energy efficiency.
-
STM32F0: Based on ARM Cortex-M0, these are the entry-level boards with lower performance and fewer peripherals.
-
STM32F1: ARM Cortex-M3, offering more processing power and additional peripherals compared to the STM32F0 family.
-
STM32F3: ARM Cortex-M4, designed for applications requiring digital signal processing (DSP) with additional floating-point unit (FPU).
-
STM32F4: ARM Cortex-M4, offering high performance, high clock speeds, and advanced peripherals for demanding applications.
-
STM32L0: ARM Cortex-M0+, optimized for low-power applications.
-
STM32L4: ARM Cortex-M4, optimized for low-power applications but with better performance than the L0 series.
-
STM32H7: ARM Cortex-M7, offering the highest performance with a focus on applications requiring substantial processing power.
-
STM32G0/G4: ARM Cortex-M0+/M4, targeting mixed-signal applications with a combination of performance and power efficiency.
2. Processing Power and Performance
-
Low-End Microcontrollers (STM32F0, STM32L0): These offer basic functionality, lower clock speeds (32 MHz), and are suitable for simple control applications and low-power designs.
-
Mid-Range Microcontrollers (STM32F1, STM32F3, STM32G0): These provide moderate processing power with clock speeds ranging from 48 MHz to 72 MHz and include more peripherals for applications like industrial control and sensor-based projects.
-
High-End Microcontrollers (STM32F4, STM32L4, STM32H7): These are designed for more complex applications, offering higher clock speeds (up to 480 MHz) and more powerful cores (Cortex-M4, Cortex-M7). They are used in applications requiring heavy processing power, such as audio, motor control, and high-speed data processing.
3. Power Consumption
-
Low Power (STM32L0, STM32L4): These boards are optimized for ultra-low-power consumption and are designed for battery-powered devices. STM32L4, for example, offers low power modes while still providing sufficient performance for most IoT applications.
-
Higher Power (STM32F4, STM32H7): These boards consume more power, making them suitable for applications where power consumption is less critical, but high performance is required.
4. Onboard Features and Peripherals
Nucleo boards vary in terms of available peripherals, such as:
-
I/O Pins: Some boards have more GPIO pins or analog inputs/outputs, while others focus on specialized interfaces like UART, SPI, I2C, and CAN.
-
Integrated Peripherals: More advanced boards offer integrated peripherals such as DACs, ADCs, and external memory support (SDRAM, external flash).
-
Connectivity: Higher-end Nucleo boards may include support for wireless connectivity (Wi-Fi, Bluetooth, etc.) or advanced communication interfaces (Ethernet, USB host/device, CAN).
5. Expansion Capabilities
-
Arduino-Compatible Headers: Nucleo boards feature Arduino Uno R3 compatible headers, making them easy to interface with external Arduino shields.
-
More advanced boards might feature more or different connectors for high-speed communication, such as Ethernet, CAN, USB, and SD card slots.
6. Development Environment
All Nucleo boards support the STM32CubeIDE and STM32CubeMX tools, which are used for configuration, code generation, and debugging. However, the level of support and available libraries might differ slightly depending on the microcontroller family.
7. Cost and Target Audience
-
Entry-Level (STM32F0, STM32F1): These are the most affordable Nucleo boards, ideal for educational purposes, hobbyists, and simpler projects.
-
Mid-Level (STM32F3, STM32G0, STM32L4): Suitable for more advanced projects, with a good balance of performance and cost.
-
High-End (STM32F4, STM32H7): These boards are priced higher and are geared toward professionals and advanced embedded systems developers working on demanding applications like audio processing, industrial automation, and automotive systems.
Summary Table:
| Board | Microcontroller | Core | Clock Speed | Key Features | Ideal For |
|---|---|---|---|---|---|
| Nucleo F0 | STM32F0 | ARM Cortex-M0 | 48 MHz | Basic peripherals, low cost, low power | Simple projects, education |
| Nucleo F1 | STM32F1 | ARM Cortex-M3 | 72 MHz | More peripherals, better performance than F0 | Mid-range projects |
| Nucleo F3 | STM32F3 | ARM Cortex-M4 | 72 MHz | DSP support, better analog peripherals | Sensor-based applications, audio |
| Nucleo F4 | STM32F4 | ARM Cortex-M4 | 168 MHz | High-performance, advanced peripherals | High-performance applications |
| Nucleo L0 | STM32L0 | ARM Cortex-M0+ | 32 MHz | Ultra-low-power, simple applications | Battery-powered, IoT |
| Nucleo L4 | STM32L4 | ARM Cortex-M4 | 80 MHz | Low power, better performance, advanced features | IoT, portable devices |
| Nucleo H7 | STM32H7 | ARM Cortex-M7 | 480 MHz | Maximum performance, advanced peripherals | High-end applications, robotics |
| Nucleo G0 | STM32G0 | ARM Cortex-M0+ | 64 MHz | Mixed signal, cost-effective | General IoT, automotive |
| Nucleo G4 | STM32G4 | ARM Cortex-M4 | 170 MHz | Performance and analog features | Motor control, audio systems |
Conclusion:
The choice of Nucleo board depends on the performance requirements and power constraints of your project:
-
For basic IoT applications and learning purposes, STM32F0, STM32F1, and STM32L0 boards are cost-effective.
-
For mid-range applications needing DSP capabilities or better power efficiency, the STM32F3 and STM32L4 boards are good options.
-
For high-performance projects, especially requiring real-time processing, STM32F4, STM32H7, and STM32G4 offer significant power and peripheral support.
